SurgeX SX-DC-8-1224-120 SQUID 120V Surge Protector and Power Management System

Product Overview

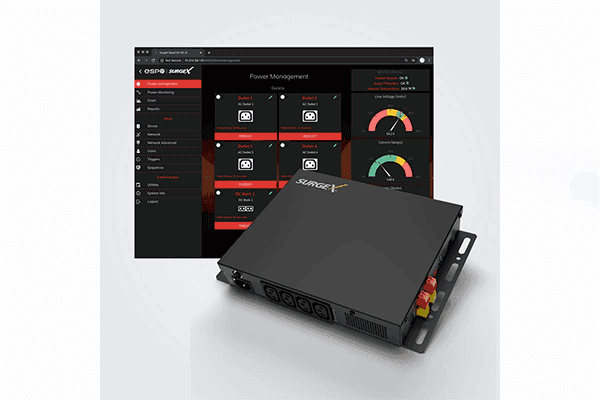

The SurgeX SX-DC-8-1224-120 SQUID is a compact, network-managed AC and DC power management system that provides both 12V and 24V DC outputs alongside four controlled AC receptacles in a single device. As a networked AC/DC power management system with dual DC voltages, it is designed for AV installations where equipment requiring different DC voltages — such as 12V camera encoders and 24V display mounts or PTZ motors — must be powered and managed together in a confined space such as a huddle room, meeting space, or digital signage enclosure. The dual-voltage DC capability distinguishes it from the single-voltage SX-DC-8-12-120 and SX-DC-8-24-120 SQUID variants.

Product Description

The SX-DC-8-1224-120 accepts universal 120V–240V AC input via IEC connectors and provides four controlled and monitored AC receptacles, three DC output banks (two controllable, delivering both 12V and 24V DC), and two 5V USB charging ports. The dual DC voltage architecture eliminates the need for separate power supplies at different voltage levels, reducing the device count and cabling complexity that typically accumulates in small-room AV deployments.

Ethernet connectivity enables a built-in web server accessible via HTTP and HTTPS, with 802.1x port authentication, TLS, SSL, SNMP V3, and single sign-on support. This management capability allows AV operators and IT administrators to monitor outlet-level power consumption, switch individual AC and DC outputs on or off, review power quality event logs, and integrate the unit into a Network Operations Center environment without requiring physical access to each room.

Real-time power quality monitoring measures voltage, current, power, frequency, power factor, and crest factor at each AC outlet. The unit stores 30 days of maximum, minimum, and average values for each parameter, with time-stamped event logging for retrospective analysis of power anomalies. This data layer is particularly useful in managed deployments where IT and AV support teams need to diagnose intermittent equipment problems without dispatching a technician.

SurgeX Advanced Series Mode technology provides zero let-through voltage surge protection on all AC outlets against events up to 6,000 volts, with no ground contamination or common-mode disturbances. The compact form factor allows the unit to be deployed along the back of a table, inside a furniture chase, or behind a wall-mounted display — locations where a traditional rack-mount PDU is not practical but power protection and management are still required.

Key Features

• Dual DC Voltage Outputs (12V and 24V) — Provides both 12V and 24V controllable DC banks in a single unit, replacing separate power supplies for mixed-voltage AV equipment deployments.
• Four Controlled AC Receptacles — Independently switchable AC outlets with per-outlet monitoring; supports remote power cycling without on-site technician access.
• Network-Managed via Web Server — Built-in HTTP/HTTPS web server with 802.1x, TLS, SSL, SNMP V3, and single sign-on for enterprise-grade remote management.
• Six-Parameter Power Monitoring — Real-time measurement of voltage, current, power, frequency, power factor, and crest factor per outlet for proactive power quality diagnostics.
• 30-Day Power Quality History — Time-stamped event log with Max/Min/Avg parameter storage for 30 days; supports retrospective analysis and compliance documentation.
• Advanced Series Mode Surge Elimination — Zero let-through voltage on AC surges up to 6,000V; no ground contamination or common-mode disturbances introduced into the AC system.
• Universal AC Input — 120V–240V AC via IEC connector supports deployment in North American and international commercial AV installations.
• 2 x 5V USB Charging Ports — Integrated USB-A charging for room controllers, tablets, and USB-powered accessories without requiring a separate USB charger.
• Compact Non-Rack Form Factor — Designed to mount along, behind, or near equipment in locations where rack-mount installation is not available.
• SNMP V3 Support — Enables integration with enterprise monitoring platforms and Network Operations Center dashboards for centralized power management across multiple rooms.

Typical Applications

• Huddle room
• Conference room
• Commercial meeting space
• Training room
• Multi-purpose room
• All-hands room
• Boardroom

Technical Specifications

Frequently Asked Questions

What makes the SX-DC-8-1224-120 different from the other SQUID models?

The SX-DC-8-1224-120 provides both 12V and 24V DC output banks in the same unit. The SX-DC-8-12-120 provides only 12V DC outputs, and the SX-DC-8-24-120 provides only 24V DC outputs. If an AV installation includes equipment that requires both voltages — for example, a 12V codec and a 24V PTZ motor driver — the SX-DC-8-1224-120 is the appropriate choice.

Which AV devices typically require 24V DC power?

Common 24V DC-powered AV components include PTZ camera power supplies, motorized display mounts, certain audio DSP units, and some LED driver circuits. Specifying the SX-DC-8-1224-120 SQUID accommodates these alongside 12V accessories such as camera encoders, extender baluns, and video conferencing peripherals in the same compact unit.

How does remote outlet switching work in practice?

Each AC outlet and controllable DC bank can be switched on or off individually through the SQUID's web interface, accessible via any browser on the same network. This allows an AV support team to remotely power-cycle a frozen codec, display, or camera without dispatching a technician to the room — a significant operational advantage in large multi-room deployments.

Can the SQUID be integrated with an enterprise IT monitoring system?

Yes. SNMP V3 support allows the SQUID to report power quality data and receive control commands from standard enterprise monitoring platforms such as SolarWinds, PRTG, or Nagios. This makes the SQUID compatible with IT-managed infrastructure where AV power monitoring is consolidated alongside network and server monitoring.

Does the SQUID require a rack for installation?

No. The compact form factor is specifically designed for non-rack environments. The unit can be mounted along the back of a conference table, inside a furniture equipment chase, in a ceiling space above a projector, or behind a wall-mounted display where a rack-mount PDU would not fit.

What does crest factor measurement indicate about an AV system?

Crest factor is the ratio of peak current to RMS current. A high crest factor indicates that power supplies are drawing current in short, sharp pulses rather than smoothly, which increases thermal stress on conductors and can cause voltage distortion on shared circuits. Monitoring crest factor alongside voltage and power gives AV technicians early warning of power quality conditions that could affect equipment reliability.

Is there a mobile or remote dashboard for monitoring multiple SQUID units?

Each SQUID unit is accessible via its individual HTTPS web interface from any browser, including mobile devices. For centralized management of multiple units, SNMP V3 integration with an existing NOC or monitoring platform provides a unified view across a distributed installation.
