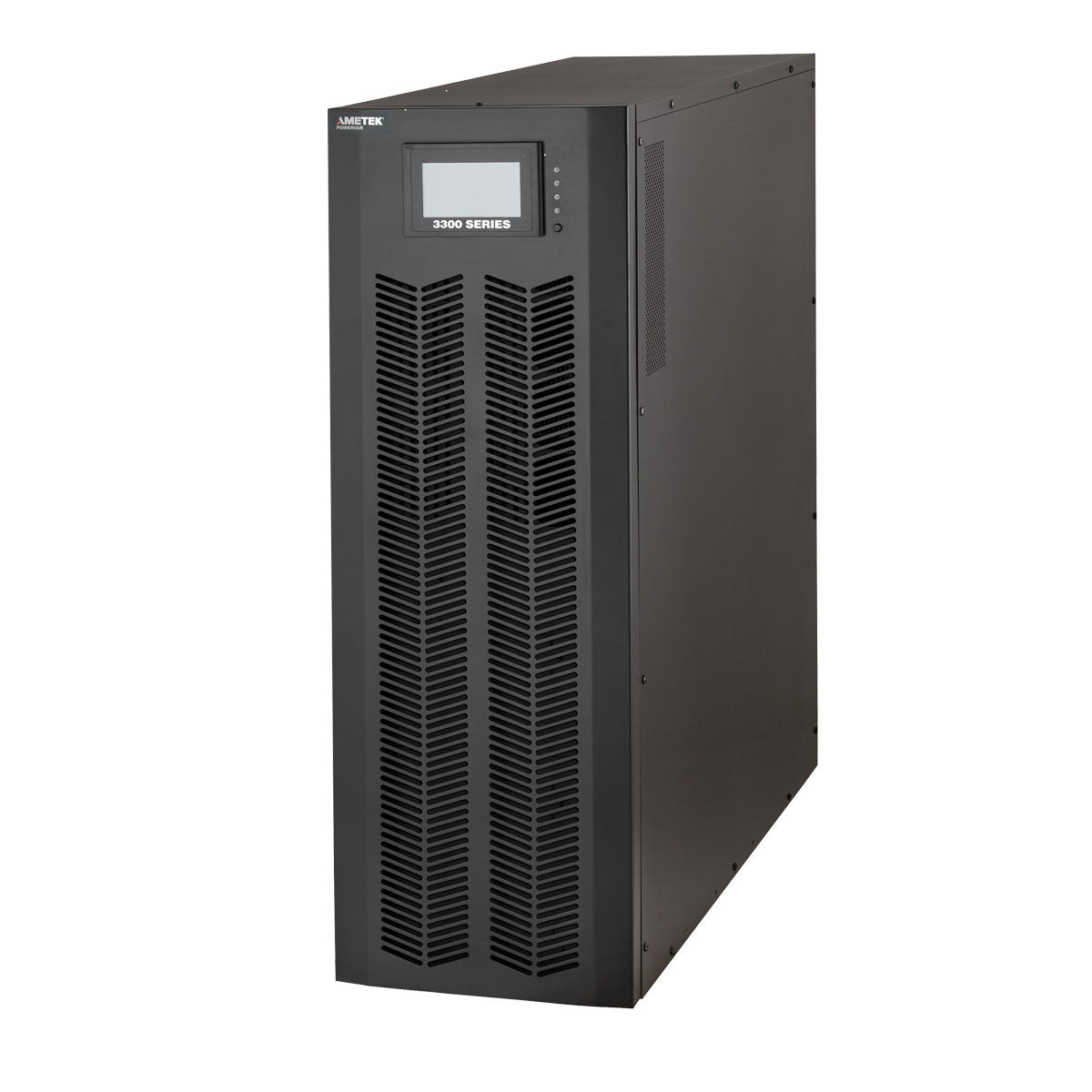

SurgeX 33010-02 – 3-Phase 10kVA Online UPS, 208V, with Batteries
What is the SurgeX 33010-02?
The SurgeX 33010-02 is a 3300 Series three-phase 10kVA online double conversion UPS, 120/208V Wye in and 208V Wye out, hardwired, with internal batteries (about 3 minutes at full load). It protects equipment rooms, broadcast facilities and network cores on three-phase power.
How does the SurgeX 33010-02 work?
Large format three-phase UPS systems carry whole equipment rooms rather than single racks. Online double conversion keeps the load on the inverter at all times, so there is no transfer gap during an outage. Internal batteries ride through short events; add the BC27 10kVA battery cabinet for long runtime. SurgeX requires a factory startup on 3300 Series units, and most installs add the 32010-MB3WM65 maintenance bypass switch. Larger models include the UPS-33020-02.
What are the key features of the SurgeX 33010-02?
- Three-phase 208V — Built for large equipment rooms.
- 10kVA capacity — Room-scale protection.
- Online double conversion — Zero transfer time.
- Batteries included — About 3 minutes at full load, expandable with a BC27 cabinet.
- Hardwired — Installed by a licensed electrician.
Where is the SurgeX 33010-02 typically used?
- Broadcast studio
- Government space
- Auditorium
Technical Specifications
| Model | 33010-02 |
| Capacity | 10kVA |
| Input/Output | 120/208V Wye 3-phase in, 208V Wye 3-phase out |
| Connection | Hardwired |
| Batteries | Included (~3 min at full load) |
| Lead time | About 6 weeks |
Frequently Asked Questions
Does the SurgeX 33010-02 include batteries?
Yes, about 3 minutes at full load. Add a BC27 cabinet for longer runtime.
Is a startup required?
Yes. SurgeX requires a factory startup (33059-STARTUP) on 3300 Series units.
What is the lead time?
SurgeX lists about six weeks on 3300 Series units.
