SunBrite SB-WM-F-M-BL – Fixed Wall Mount for 23"–43" Outdoor TVs
Product Overview
The SunBrite SB-WM-F-M-BL is an all-weather fixed wall mount for outdoor TV installation on 23" to 43" displays, rated for a 100 lb maximum load at a minimal 1.1" mounting depth. As a purpose-built compact outdoor fixed TV mount, it delivers the flush, zero-movement stability required for permanent exterior AV installations in covered patios, exterior walls, and commercial outdoor display applications. UL Listed certification and LokTight lockable tabs make it the preferred outdoor TV fixed mount for security-conscious commercial deployments.
Product Description

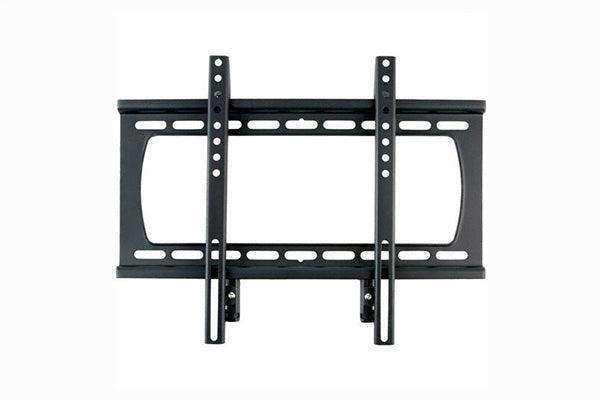

The SB-WM-F-M-BL is SunBrite's medium-format fixed outdoor TV wall mount, built for compact and mid-size display deployments where a static, ultra-low-profile mounting position is required. At just 1.1" mounting depth, it achieves the thinnest possible installed profile for this size class. Solid steel construction with an outdoor-rated corrosion-resistant coating withstands moisture, humidity, and UV exposure in permanent exterior installations. The user-friendly reversible wall mounting plate features a center notch for temporary hanging during rough-in, no fixed top or bottom orientation, and a wide-mouth center for Midi plate compatibility. LokTight rotating lockable tabs on the bracket arms prevent unauthorized display removal — an important feature for hospitality, commercial signage, and education outdoor AV deployments. Post-install leveling screws allow final alignment without full remounting. Compatible Veranda Series outdoor TVs include the SB-5574UHD-BL, SB-4374UHD-BL, and SB-S-55-4K; note that spacers are required for Veranda Series installations to access the rear plug and media bay.
Key Features
- UL Listed — Third-party structural certification for load integrity in commercial outdoor AV applications.
- 100 lb Load Capacity — Supports all SunBrite outdoor TVs in the 23"–43" size range.
- 1.1" Ultra-Low Mounting Depth — Thinnest-profile fixed mount for compact outdoor TV installations.
- LokTight Lockable Tabs — Rotating lockable arms prevent unauthorized display removal for commercial security compliance.
- Outdoor-Rated Corrosion-Resistant Coating — Steel construction with weatherproof finish for permanent exterior installation.
- Reversible Wall Plate — No fixed top/bottom orientation simplifies installation in any wall configuration.
- Post-Install Leveling — Adjust display level after mounting without removing the bracket from the wall.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SB-WM-F-M-BL |
| Compatible Screen Size | 23" – 43" |
| Maximum Load Capacity | 100 lb |
| Mount Type | Fixed |
| VESA Patterns Supported | 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 400x300 |
| Mounting Depth | 1.1" |
| Mount Height | 14.4" |
| Mount Width | 19.3" |
| Weight | 5 lb |
| Finish | Black Powder Coat (outdoor-rated) |
| Certifications | UL Listed |
| Security | LokTight Lockable Tabs |
| Warranty | Lifetime |
