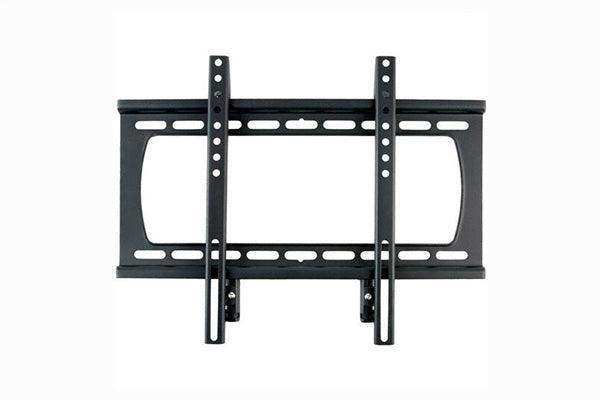

SunBrite SB-WM-F-L-BL – Fixed Wall Mount for 37"–70" Outdoor TVs
Product Overview
The SunBrite SB-WM-F-L-BL is an all-weather fixed wall mount for outdoor TV installation on 37" to 70" displays, rated for screens up to 80" at a 165 lb maximum load capacity. As a purpose-built outdoor fixed TV mount, it delivers the low-profile, zero-movement stability required for commercial outdoor display installations in covered patios, exterior walls, and weatherproof AV enclosures. The UL Listed rating confirms structural integrity for professional AV deployments.
Product Description
The SB-WM-F-L-BL is SunBrite's large-format fixed outdoor TV wall mount, designed for permanent exterior installations where a static, flush-to-wall position is preferred over tilt or articulating options. Solid steel construction with an outdoor-rated coating resists corrosion, rust, and UV degradation across SunBrite's full range of outdoor environmental use cases. The user-friendly wall mounting plate features a center notch for temporary hanging during installation, a reversible design with no fixed top or bottom orientation, and a wide-mouth center opening compatible with large Midi mounting plates. LokTight rotating lockable tabs on the bracket arms prevent easy display removal, providing a security layer suitable for commercial outdoor digital signage and hospitality AV deployments. Post-install leveling screws allow final alignment adjustment without full remounting. Compatible with Veranda Series outdoor TVs including the SB-5574UHD-BL, SB-4374UHD-BL, and SB-S-55-4K — note that spacers are required for Veranda Series installations to accommodate the rear plug and media bay access.
Key Features
- UL Listed — Third-party structural certification confirms load integrity for commercial outdoor AV installations.
- 165 lb Load Capacity — Supports SunBrite large-format outdoor TVs up to 80" screen size.
- LokTight Lockable Tabs — Rotating lockable arms prevent unauthorized display removal, suitable for commercial security requirements.
- Outdoor-Rated Corrosion-Resistant Coating — Steel construction with weatherproof finish and stainless hardware for permanent exterior use.
- Reversible Wall Plate — No fixed top/bottom orientation simplifies installation alignment in any wall configuration.
- Post-Install Leveling — Fine-tune display level after mounting without removing the bracket from the wall.
- Broad VESA Compatibility — Supports 200x200 through 700x500 patterns for SunBrite's full large-format outdoor TV range.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SB-WM-F-L-BL |
| Compatible Screen Size | 37" – 70" (supports up to 80") |
| Maximum Load Capacity | 165 lb |
| Mount Type | Fixed |
| VESA Patterns Supported | 200x200, 200x300, 300x200, 300x300, 400x300, 400x400, 500x400, 500x500, 600x400, 600x500, 600x600, 700x500 |
| Mount Height | 20.9" |
| Finish | Black Powder Coat (outdoor-rated) |
| Certifications | UL Listed |
| Security | LokTight Lockable Tabs |
| Warranty | Lifetime |
