SunBrite SB-WM-ART2-XL-BL – Dual-Arm Articulating Outdoor Wall Mount for 49"–80" TVs
Product Overview

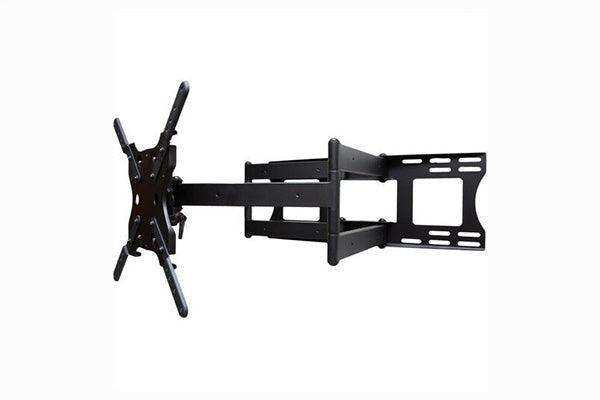

The SunBrite SB-WM-ART2-XL-BL is a heavy-duty dual-arm articulating outdoor wall mount engineered for commercial-grade outdoor TV installations supporting displays from 49" to 80" at up to 150 lb. Built for outdoor AV installation, the mount features corrosion-resistant powder-coated steel construction with stainless steel hardware, providing full-motion capability with 180° swivel, -5°/+15° tilt, and 30" of arm extension. Broad VESA compatibility from 200x100 to 800x600 and a weatherproof finish make this the standard-specification choice for integrators mounting large-format outdoor displays in permanent exterior environments.
Product Description
The SB-WM-ART2-XL-BL delivers the structural integrity and full-motion flexibility required for large outdoor display installations in commercial AV projects. The solid steel dual-arm mechanism provides 30" of extension from the wall, giving technicians easy access behind the TV for cable management and media bay access on SunBriteTV Veranda models.
The mount is primed with a powder coating base layer plus two additional layers of durable, corrosion-resistant finish that guard against scratches and environmental degradation. Stainless steel hardware throughout eliminates rust concerns in coastal, high-humidity, and all-weather commercial deployment environments. The 180° swivel and tilt adjustment allow precise viewing angle optimization for any installation geometry, from covered outdoor seating areas to open sports venue concourses.
The black powder-coat finish maintains a professional appearance consistent with premium commercial AV installations, and the broad VESA pattern support covers virtually all large-format outdoor TV mounting configurations.
Key Features
- 150 lb Maximum Load Capacity — Solid steel dual-arm construction supports large-format outdoor displays up to 80" and 150 lb for permanent commercial installation.
- 30" Arm Extension — Full extension provides easy access behind the TV for cable management and media bay servicing without dismounting the display.
- 180° Swivel Range — Full horizontal swivel enables viewing angle optimization across wide coverage areas in commercial outdoor venues.
- -5°/+15° Tilt Adjustment — Precise vertical tilt for optimal screen angles in overhead and eye-level mount positions.
- Dual-Layer Corrosion-Resistant Coating — Powder coat prime plus two protective layers with stainless steel hardware prevents rust in all-weather outdoor environments.
- Broad VESA Compatibility — Supports patterns from 200x100 to 800x600, covering all major large-format outdoor TV mounting configurations.
- Weatherproof Construction — Corrosion-resistant, scratch-resistant, and rust-proof for permanent outdoor installation.
Typical Applications
- Commercial Outdoor Installations — Permanent large-format display mounting at restaurants, entertainment complexes, and outdoor retail environments.
- Hospitality — Pool areas, outdoor bars, and resort event spaces requiring full-motion large-format outdoor TV mounting.
- Sports Venues — Concourse, sideline, and outdoor viewing area display installations where viewing angle adjustability is critical.
- Corporate Campuses — Outdoor amphitheaters and covered common area large-format display installations.
- House of Worship — Outdoor pavilion and covered exterior gathering space display mounting for 49"–80" screens.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SB-WM-ART2-XL-BL |
| Mount Type | Dual-Arm Articulating Wall Mount |
| Compatible Screen Size | 49" – 80" |
| Maximum Load Capacity | 150 lb |
| Maximum Extension | 30" |
| Swivel Range | 180° |
| Tilt Range | -5° / +15° |
| VESA Compatibility | 200x100, 200x200, 200x300, 300x200, 300x300, 400x300, 400x400, 500x400, 500x500, 600x400, 600x500, 600x600, 700x500, 700x600, 700x700, 800x500, 800x600 |
| Primary Material | Solid Steel with Stainless Steel Hardware |
| Finish | Black Powder Coat (Dual Corrosion-Resistant Layers) |
| Weather Rating | Weatherproof, Corrosion-Resistant, Rust-Resistant, Scratch-Resistant |
| Color | Black |
Frequently Asked Questions
- What TV sizes does the SB-WM-ART2-XL-BL support?
- This mount supports outdoor TVs and flat panel displays from 49" to 80" with a maximum weight of 150 lb. Confirm your display's VESA pattern falls within the supported range (200x100 to 800x600) before ordering.
- Is this mount suitable for SunBriteTV Veranda series models?
- Yes. The 30" arm extension provides the clearance needed to access the media bay on SunBriteTV Veranda 43" and 55" models. Use the included adapter brackets and spacers for Veranda TV compatibility.
- How does the corrosion-resistant coating work?
- The mount is primed with a powder coating base layer, then finished with two additional corrosion-resistant layers. Combined with stainless steel hardware, this multi-layer system prevents rust and protects against salt air, humidity, and UV exposure in outdoor installations.
- What is the full-extension distance from the wall?
- The dual-arm mechanism extends 30" from the wall at full extension, providing ample reach for accessing cable connections and media bays behind large outdoor displays.
- Is this mount UL Listed?
- Yes. The SB-WM-ART2-XL-BL carries UL listing, verifying that its structural integrity meets safety standards for commercial flat panel display mounting applications.
- Can the swivel and tilt be adjusted after installation?
- Yes. The 180° swivel and -5°/+15° tilt can be adjusted after the mount is installed, allowing viewing angle optimization as venue layouts change.
- What warranty is included?
- Contact Creation Networks for current SunBrite warranty terms on this mount. Commercial procurement documentation is available upon request.
