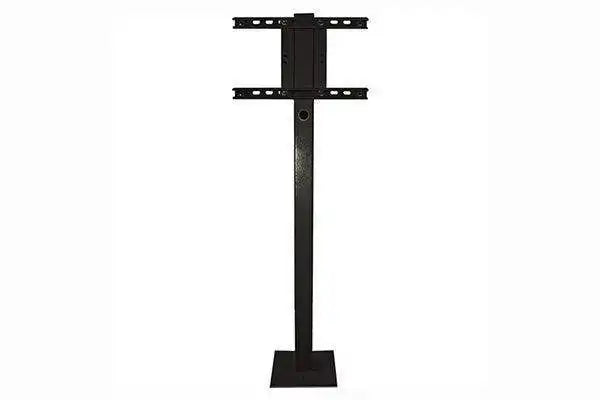

SunBrite SB-DP46XA-BL – 46" Outdoor Deck/Planter Pole Mount for Outdoor TVs
Product Overview
The SunBrite SB-DP46XA-BL is a 46" outdoor deck and planter pole designed to position SunBriteTV outdoor displays in locations where wall mounting is not feasible, such as decks, patios, and planter boxes. This commercial-grade outdoor TV pole mount requires a compatible SunBrite wall mount head (SB-WM46 or SB-WM46NA) for complete installation and supports up to 80 lb of display weight. Built from solid steel and aluminum with a multi-layer corrosion-resistant powder-coat finish and stainless steel hardware, it provides a durable, rust-proof mounting solution for permanent outdoor AV installations.
Product Description
The SB-DP46XA-BL gives AV integrators and facilities managers a mounting solution for outdoor displays where no suitable wall surface exists. Whether deploying a TV at the edge of a deck, anchoring to a planter, or establishing a freestanding viewing position in a commercial outdoor space, this 46" pole provides the structural base required for a secure, permanent installation.
Constructed from solid steel and aluminum with the same multi-layer weatherproof coating used across the SunBrite mounting line, the pole resists corrosion, scratches, and rust throughout the full range of outdoor exposure conditions including salt air, humidity, UV, and temperature cycling. Stainless steel hardware at all connection points eliminates rust failure in coastal and high-humidity commercial deployments.
UL Listed for commercial installation confidence. This pole requires the SB-WM46 or SB-WM46NA wall mount head (sold separately) to complete the installation. The mount head provides the TV attachment and tilt adjustment; this pole provides the structural base and height positioning.
Key Features
- Deck and Planter Compatibility — Mounts to deck surfaces and planter structures, enabling outdoor TV deployment where wall mounting is not available.
- 80 lb Maximum Load Capacity — Solid steel and aluminum construction supports outdoor displays up to 80 lb for permanent installation.
- Multi-Layer Corrosion-Resistant Coating — Powder coat primer plus two protective layers with stainless steel hardware prevents rust in all-weather outdoor environments.
- UL Listed — Meets safety standards for commercial flat panel display mounting, supporting procurement specifications that require certification documentation.
- Weatherproof Construction — Corrosion-resistant, scratch-resistant, and rust-proof for permanent outdoor deployment in harsh environments.
- VESA Compatible Mount Head Interface — Works with SB-WM46 or SB-WM46NA mount heads supporting VESA patterns 75x75, 100x100, 200x100, and 200x200.
Typical Applications
- Commercial Outdoor Installations — Deck-mounted outdoor TV displays at restaurants, bars, and entertainment venues where wall mounting is impractical.
- Hospitality — Pool deck, patio, and outdoor lounge areas at hotels and resorts requiring freestanding or deck-anchored display mounting.
- Corporate Campuses — Outdoor common areas and terrace spaces where structural walls are not available for display mounting.
- Sports Venues — Covered deck and concourse areas requiring freestanding outdoor display positioning.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SB-DP46XA-BL |
| Mount Type | Deck / Planter Pole |
| Pole Length | 46" |
| Maximum Load Capacity | 80 lb |
| Required Mount Head | SB-WM46 or SB-WM46NA (sold separately) |
| Compatible VESA Patterns (via mount head) | 75x75, 100x100, 200x100, 200x200 |
| Compatible Screen Size (via mount head) | Up to 43" |
| Primary Material | Solid Steel and Aluminum |
| Hardware | Stainless Steel |
| Finish | Black Powder Coat (Multi-Layer Corrosion-Resistant) |
| Weather Rating | Weatherproof, Corrosion-Resistant, Scratch-Resistant, Rust-Proof |
| Certification | UL Listed |
| Color | Black |
| Height | 25.2" |
| Width | 9.1" |
| Depth | 3.9" |
Frequently Asked Questions
- What mount head is required to complete this installation?
- The SB-DP46XA-BL requires either the SB-WM46 or SB-WM46NA SunBrite wall mount head, sold separately. The mount head provides the TV attachment interface and tilt adjustment; the pole provides the structural base.
- What is the maximum TV size and weight this pole supports?
- When used with the compatible SB-WM46 or SB-WM46NA mount head, this pole supports flat panel displays up to 43" and a maximum weight of 80 lb.
- Can this pole be installed on a wooden deck?
- Yes. The SB-DP46XA-BL is designed specifically for deck and planter installation surfaces. Consult SunBrite installation documentation or contact Creation Networks for substrate-specific installation guidance.
- Is this pole suitable for coastal salt air environments?
- Yes. The multi-layer corrosion-resistant powder-coat finish and stainless steel hardware are specifically designed to resist salt air, humidity, and moisture in coastal commercial installations.
- Is the SB-DP46XA-BL UL Listed?
- Yes. This pole carries UL listing, which verifies its structural integrity meets safety standards for commercial flat panel display mounting applications.
- What warranty is included?
- Contact Creation Networks for current SunBrite warranty terms on this mount. Commercial procurement documentation is available upon request.
