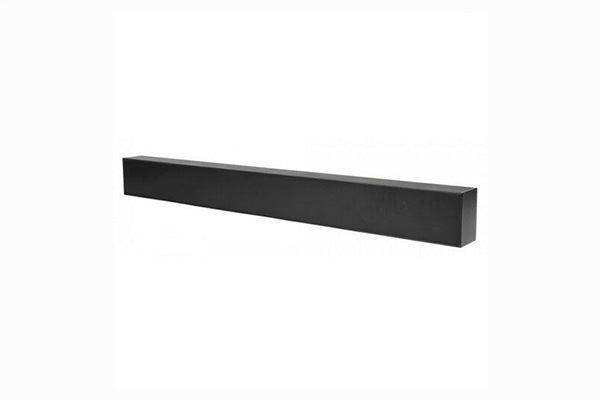

Sunbrite - SB-AW-SNDBR-M-B 20 Watt Premium Passive Soundbar for Landscape Outdoor TV 47-75"

SunBrite SB-AW-SNDBR-M-B – Premium Passive Outdoor Soundbar for 47"–75" TVs

Product Overview

The SunBrite SB-AW-SNDBR-M-B is a 20-watt premium passive outdoor soundbar engineered for permanent installation with SunBriteTV Signature and Pro Series outdoor displays ranging from 47" to 75". Built from a single piece of extruded aluminum with a rust-proof cabinet and grille, this commercial-grade outdoor soundbar delivers full-range audio in open-air environments where standard indoor speakers fail. Designed for outdoor AV installation projects, it integrates directly with compatible SunBriteTV models via a five-pin Molex connector for a clean, amplified signal path without separate wiring runs.

Product Description

The SB-AW-SNDBR-M-B is purpose-built for demanding commercial outdoor AV installations where audio quality and weather resilience are non-negotiable. Four 3" titanium woofers, dual 1" pure titanium tweeters, and six Titanium Vapor Deposit Polypropylene Cone Passive Radiators (2+1+3 per channel) support up to 90W RMS power handling, delivering loud, clear sound across large open-air venues.

The extruded aluminum enclosure with rust-proof grille provides weather resistance against rain, snow, dust, insects, humidity, and salt air — making it suitable for coastal hospitality deployments, covered outdoor seating areas, and permanent exterior AV installations. An onboard temperature dispersion system enables reliable operation across a wide temperature range of -4°F to 140°F, with storage tolerance down to -24°F.

Mounting is simplified through an innovative bracket design that attaches directly to the TV without removing existing mounting hardware. The five-pin Molex plug connects natively to Signature and Pro Series SunBriteTV models (which include built-in 20-watt amplification). Veranda series installations require a separate external amplifier. The soundbar supports both top-mount and bottom-mount configurations on Signature and Pro Series TVs; bottom-mount only on Veranda models.

Key Features

• Single-Piece Extruded Aluminum Enclosure — Rust-proof construction with weatherproof grille withstands rain, snow, dust, insects, humidity, and salt air for permanent outdoor deployment.
• 90W RMS / 225W PMPO Power Handling — Titanium woofer and tweeter array with passive radiators delivers high-output audio across large open-air venues.
• Five-Pin Molex Native Integration — Direct plug-and-play connection to SunBriteTV Signature and Pro Series without additional amplification or wiring.
• Temperature Dispersion System — Operates reliably from -4°F to 140°F; storage range extends to -24°F, covering extreme climate deployments.
• Tool-Free TV Attachment — Mounts to the display without removing existing TV mounting hardware, reducing installation time on commercial jobsites.
• Titanium Driver Array — Four 3" titanium woofers, dual 1" pure titanium tweeters, and six passive radiators (2+1+3 per channel) for full-range frequency response from 95 Hz to 22 kHz.
• Made in the USA — Assembled domestically, supporting procurement specifications that require country-of-origin documentation.

Typical Applications

• Commercial Outdoor Installations — Permanent AV deployments at restaurants, retail outdoor spaces, and entertainment venues requiring weather-resistant audio.
• Hospitality — Pool bars, covered patios, and resort outdoor lounges where audio must perform year-round without seasonal removal.
• Sports Venues — Covered concourse and outdoor viewing areas requiring loud, clear audio paired with large-format outdoor displays.
• Corporate Campuses — Outdoor common areas, amphitheaters, and covered walkways with permanent AV infrastructure.
• House of Worship — Outdoor pavilions and covered exterior gathering spaces requiring integrated display audio.

Technical Specifications

Frequently Asked Questions

Which SunBriteTV models are compatible with the SB-AW-SNDBR-M-B?

This soundbar is designed for SunBriteTV Signature and Pro Series outdoor TVs in the 47"–75" size range that feature a built-in 20-watt amplifier and five-pin Molex connector. Veranda series models do not include a five-pin connection and require a separate external amplifier.

Does this soundbar require a separate amplifier?

No — when paired with compatible Signature or Pro Series SunBriteTV models, the built-in 20-watt amplifier in the TV drives the soundbar directly via the five-pin Molex plug. Veranda series TVs require an external amplifier.

Can this soundbar be mounted above or below the TV?

Yes. The included mounting bracket supports both top-mount and bottom-mount configurations on Signature and Pro Series SunBriteTV models. Bottom-mount only is supported on Veranda series models.

Will this soundbar survive coastal salt air environments?

Yes. The extruded aluminum enclosure and rust-proof grille are specifically designed to resist salt air corrosion, making the unit suitable for permanent installation in coastal hospitality and marine-adjacent commercial environments.

What is the operating temperature range?

The SB-AW-SNDBR-M-B operates reliably from -4°F to 140°F. The onboard temperature dispersion system manages heat in high-temperature outdoor environments. Storage temperature range extends from -24°F to 140°F.

Does installation require removing the TV from its wall mount?

No. The soundbar bracket design allows it to attach directly to the TV without removing the TV's existing mounting hardware, simplifying installation on commercial jobsites where the display is already mounted.

What warranty is included?

SunBrite products are backed by a Lifetime Limited Warranty. Contact Creation Networks for warranty registration and commercial support documentation.
