SpinetiX iBX440 – 8K Video Wall Digital Signage Player

Product Overview

The SpinetiX iBX440 video wall player is a commercial-grade digital signage media player engineered for 8K HDR video wall deployments and multi-screen installations. It drives up to four fully synchronized 4K UHD displays or delivers a single 8K HDR output at 60fps, making it well suited for boardrooms, auditoriums, and large-format signage environments. Powered by an Intel Core i5 processor and purpose-built DSOS operating system, the iBX440 supports demanding content playback while maintaining the security and reliability required for 24/7 commercial operation. It is TAA compliant and ships with SpinetiX ARYA CMS included, providing a complete multi-screen digital signage player solution out of the box.

Product Description

The SpinetiX iBX440 is a professional 8K digital signage media player designed for organizations that require high-resolution video wall performance with precise multi-player synchronization. Its four HDMI 2.0 outputs support fully synchronized 4K UHD content across each display, or can be combined for a seamless 8K HDR video wall at 60fps — a configuration validated at both InfoComm 2024 and ISE 2024, where the iBX440 earned Best of Show and Best Video Wall Processor recognition. The Intel Core i5-1145G7E processor and 16GB DDR4-3200 memory deliver the compute performance required for complex content layouts, live data integration, and simultaneous multi-zone playback. Storage is handled by an industrial 128GB SSD with additional capacity available via USB 3.1. Sub-millisecond synchronization across multiple iBX440 players ensures video wall content remains frame-perfectly aligned, even in large installations. The DSOS operating system — with cryptographically signed firmware and Secure Boot — is purpose-built for digital signage security, reducing the attack surface versus general-purpose OS platforms. External airflow cooling without exposed fans makes the iBX440 suitable for rack-adjacent or AV closet installations where dust protection and continuous operation are priorities. The player is compatible with SpinetiX ARYA CMS, which includes a video wall wizard for simplified configuration, and also works with SpinetiX Elementi software for advanced layout design. At 1.8kg and a compact form factor, the iBX440 can be rack-integrated or mounted behind displays, and its lockable 12V DC power connector prevents accidental disconnection in permanent installations. For government and public-sector deployments, the iBX440 is fully TAA compliant and manufactured in Taiwan.

Key Features

• 4x Synchronized HDMI 2.0 Outputs — Drive up to four 4K UHD displays in full synchronization, or combine outputs for an 8K HDR video wall at 60fps.
• Intel Core i5-1145G7E Processor — Delivers the processing power needed for high-resolution content rendering, multi-zone layouts, and live data playback.
• Sub-Millisecond Multi-Player Sync — Synchronize content across multiple iBX440 units with sub-millisecond precision for large video wall arrays.
• DSOS Purpose-Built OS — Cryptographically signed firmware and Secure Boot reduce security exposure compared to general-purpose operating systems.
• SpinetiX ARYA CMS Included — Comes with cloud-based CMS and video wall wizard for straightforward deployment and content management.

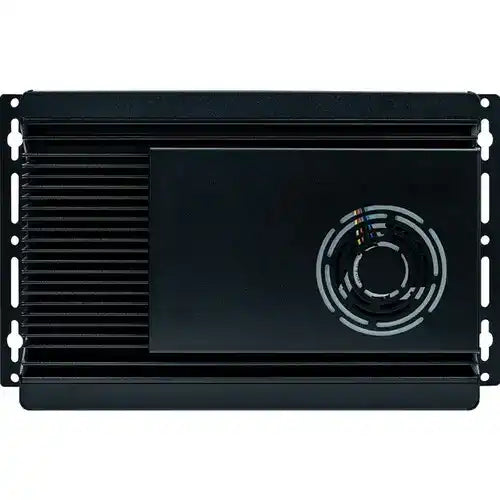

• External Airflow Cooling — Fanless-friendly thermal design protects against dust ingress while supporting continuous 24/7 operation.
• Industrial 128GB SSD — Reliable onboard storage rated for sustained read/write cycles in always-on commercial environments.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. government and federally funded installations.
• Award-Winning Design — Recognized with Best of Show at InfoComm 2024 and Best Digital Signage Media Player and Best New Video Wall Processor at ISE 2024.
• Lockable Power Connector — 12V DC lockable connector prevents unintended disconnection in permanent or rack-mounted deployments.

Typical Applications

• Boardroom video walls
• Conference room multi-display installations
• House of worship main stage displays
• Government and public sector digital signage
• Commercial meeting and collaboration spaces
• Auditorium and all-hands room displays
• Large-format lobby and atrium video walls

Technical Specifications

Frequently Asked Questions

Q: How many displays can the SpinetiX iBX440 drive simultaneously?

The iBX440 has four HDMI 2.0 outputs and can drive up to four independent 4K UHD displays simultaneously with full frame synchronization. The four outputs can also be combined to form a single 8K HDR output at 60fps for video wall configurations.

Q: Does the iBX440 require a separate CMS license?

No. The iBX440 ships with SpinetiX ARYA CMS included. ARYA provides cloud-based content management, scheduling, and a video wall wizard. SpinetiX Elementi software is also compatible for customers who prefer on-premise content authoring.

Q: Is the SpinetiX iBX440 suitable for 24/7 operation?

Yes. The iBX440 is designed for continuous commercial operation. Its external airflow cooling, industrial-grade SSD, and purpose-built DSOS operating system are all selected for always-on reliability in digital signage deployments.

Q: Is the iBX440 TAA compliant?

Yes. The iBX440 is TAA compliant and manufactured in Taiwan, making it eligible for U.S. government procurement and federally funded AV projects.

Q: Where can I purchase the SpinetiX iBX440?

The iBX440 is available at Creation Networks, an authorized SpinetiX reseller specializing in commercial AV and digital signage solutions.
