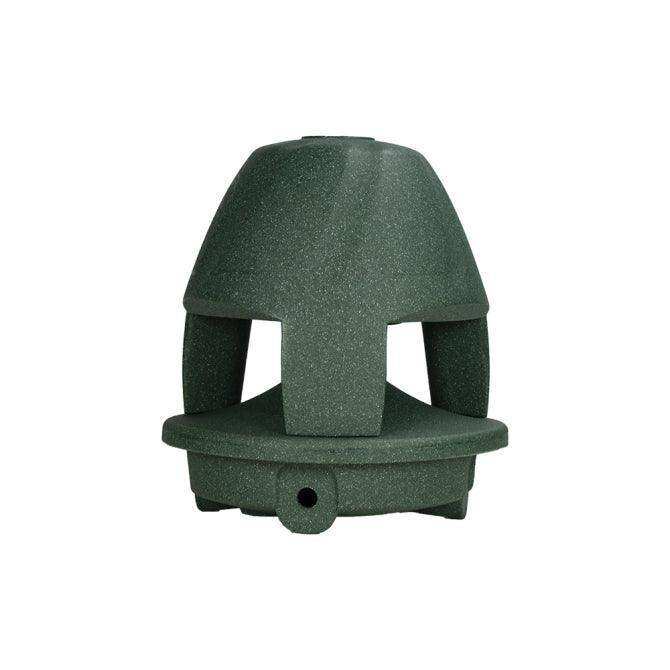

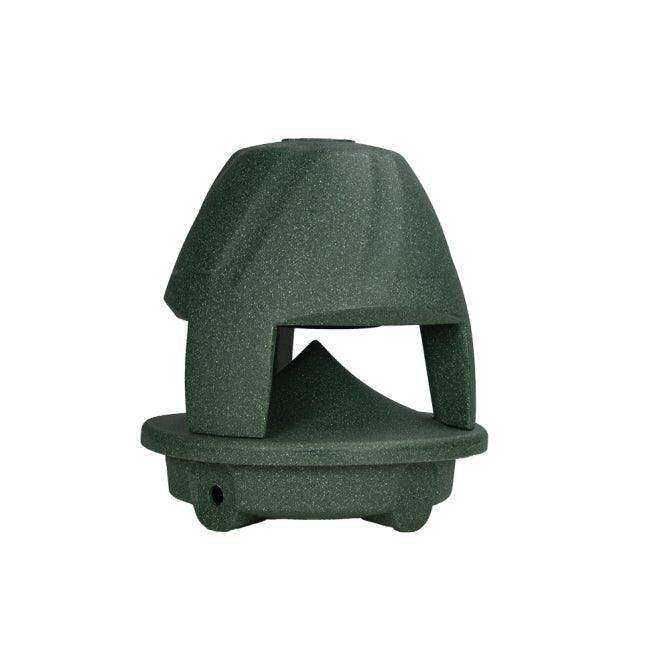

The SoundTube XT550 is a premium 2-way outdoor loudspeaker solution for installations requiring high-performance sound in a durable speaker design. Not only is it UV resistant, scratch resiatant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability, the XT550 is designed for full-range back-ground and foreground music as well as paging. The speakers sealed, in-ground enclosure design delivers true low end response (38 Hz, 10 dB) and optimal off axis performance. The XT550 includes theft resistant mounting hardware and a weatherproof 5-position tap switch for 25/70.7/100 Volt applications with transformer bypass position. IP-Rating: IP55.
|Manufacturer's Category||XT Extreme Weather Outdoor Series|
|Height||15.51 in / 394 mm|
|Width/Diameter||14.1 in / 358.1 mm|
|Shipping Weight||18.35 lbs / 8.32 kg|
|Carton Height||17.5 in / 444.5 mm|
|Carton Length||16.25 in / 412.75 mm|
|Carton Width||16.25 in / 412.75 mm|
|Certifications||CE, IP55, RoHS, UL1480A|
|Included Accessories||Anti-Theft Bracket, Weatherproof Strain Relief, Wire Nuts|
|Optional Accessories||Anti-Theft Bracket (ATD-XT)|Grille (GRL-XT5)|Tap Switch Cover (CVR-XT-TAPSW)|Port Plug (PP-XT550)|
|Source Inputs||#18 AWG Wire Leads|
|Crossover Frequency||3.0 kHz|
|Frequency Response (± 10 dB)||49 Hz - 22 kHz port open (62 Hz - 22 kHz port closed)|
|Frequency Response (± 3 dB)||61 Hz - 9.5 kHz port open (101 Hz - 12 kHz port closed)|
|Grille Properties||Painted, Steel|
|Low Pass Crossover||6 dB per octave 1st order|
|Max. Continuous Power RMS||60 Watts|
|Max. Program Power||120 W|
|Minimum Impedance (Ω Ohms)||4 Ω|
|Network Type: High Pass||6 dB per octave 1st order|
|Nominal Impedance (Ω Ohms)||4 Ω|
|Tweeter Driver||1" Aluminum Dome|
|Woofer Driver||5.25" Polypropylene|
|Sensitivity dB @ 1W/1M||83 dB|
|Sensitivity dB @ 2.83V/1M||86 dB|
|Transformer Options||25 / 70.7 / 100 V, 4 Ohm direct|
|Transformer Taps Max. Setting (25V/70.7V/100V)||4W/32W/32W|
