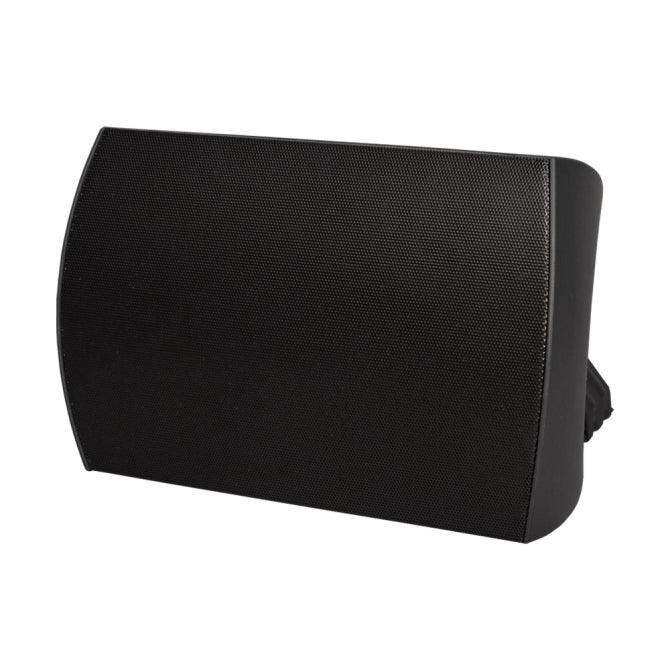

Soundtube SM82-EZ-II-WX 8" 2-way Extreme Weather Outdoor Surface Mount Speaker

SoundTube SM82-EZ-II-WX 8" 2-Way Extreme Weather Outdoor Surface Mount Speaker

The SoundTube SM82-EZ-II-WX is a high-efficiency 8" 2-way outdoor surface mount speaker engineered for the most demanding extreme weather environments. Rated IP65, it combines a dedicated 8-inch polypropylene woofer with an offset 1-inch aluminum dome tweeter and waveguide to deliver up to 106 dB max SPL — making it equally at home pumping foreground music at a resort pool deck or providing clear voice paging in a covered parking structure. Part of the SM-EZ Economical Surface Mount series, the SM82-EZ-II-WX delivers premium weatherproof audio without the complexity of high-end custom installs.

The SM82-EZ-II-WX uses a 64-watt low-insertion-loss transformer with a six-position rotary tap switch supporting 25V, 70.7V, and 100V distributed audio systems, as well as a direct 8-ohm bypass — making it flexible for virtually any commercial AV infrastructure. A proprietary tool-free Stealth™ mounting bracket with a direct-drive cam-wedge allows precise aiming up to 90° in a single direction, dramatically reducing installation time on tall or difficult mounting surfaces. Weather Guard technology uses dual-layer hydrophobic material behind the powder-coated aluminum grille to keep moisture away from all internal components.

The speaker's 2nd-order crossover network at 2.5 kHz ensures clean handoff between the woofer and tweeter, delivering a smooth 90 Hz–22 kHz frequency response (±3 dB). The polystyrene ported enclosure is reinforced to handle thermal cycling, UV exposure, and salt-air environments. A port plug is included: remove it indoors for enhanced bass output; keep it plugged outdoors to maintain IP65 integrity.

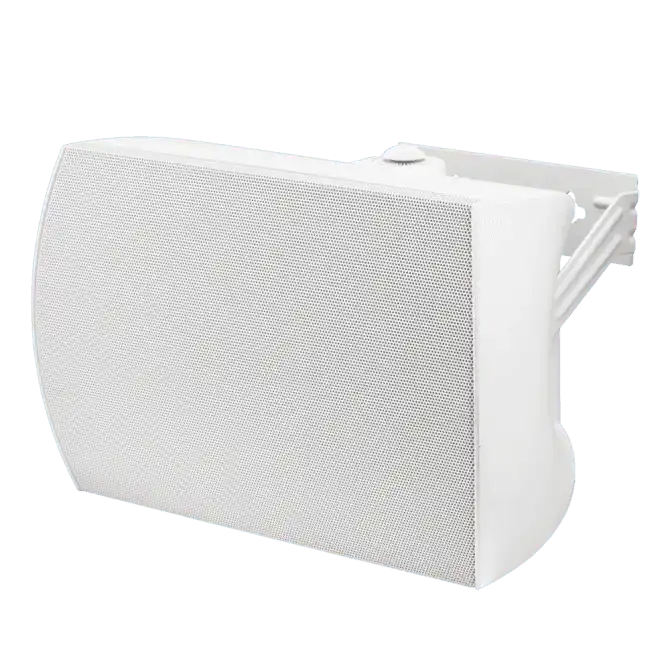

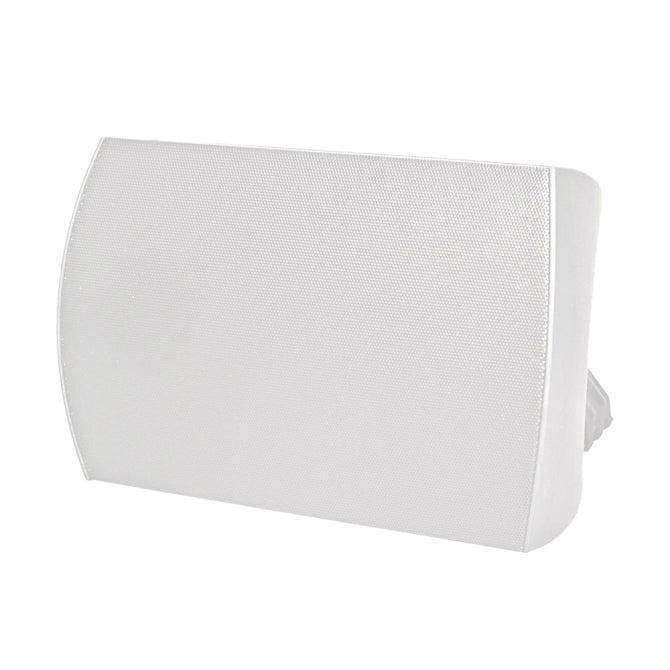

Certifications include CE, IP65, RoHS, and UL1480A. Included accessories cover a back cover, mounting hardware, port plug, safety cable, and wire gland — everything needed for a code-compliant outdoor installation. Available in black (SM82-EZ-II-WX-BK) and white (SM82-EZ-II-WX-WH).

Key Features

• IP65 Weather Guard Protection — Dual-layer hydrophobic material and sealed enclosure keep drivers and electronics safe in rain, dust, and humidity.
• 8" Polypropylene Woofer — Handles 64W RMS (128W program) for robust bass and midrange output in high-noise outdoor environments.
• 1" Aluminum Dome Tweeter with Waveguide — Delivers 100° dispersion at 2 kHz for even coverage across wide seating and gathering areas.
• 106 dB Max SPL — High-output performance overcomes ambient noise at outdoor venues, stadiums, and transit hubs.

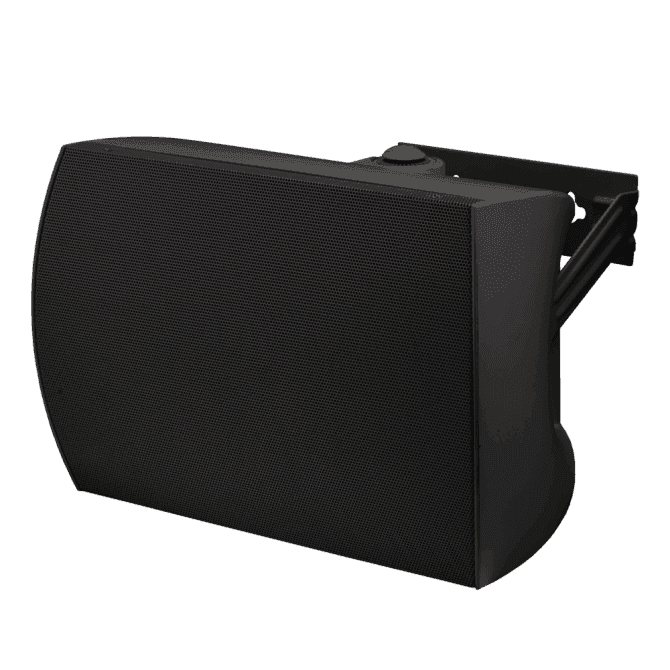

• Tool-Free Stealth™ Bracket — Cam-wedge drive allows up to 90° of precise aiming without additional hardware, cutting labor time significantly.
• 6-Position Rotary Tap Switch — Supports 25V, 70.7V, 100V, and 8-ohm direct; adapts to virtually any distributed audio system.
• 64W Low-Insertion-Loss Transformer — Minimizes signal degradation in long cable runs typical of large outdoor deployments.
• UL1480A & CE Certified — Meets North American and international safety standards for commercial installation.

Typical Applications

The SM82-EZ-II-WX is the go-to choice for commercial outdoor audio in settings where weather reliability and high SPL are non-negotiable:

• Resort pool decks and water parks
• Covered parking structures and transit stations
• Sports stadiums and arena concourses
• Theme parks and outdoor entertainment venues
• Restaurants with covered patios and beer gardens
• University and corporate campus walkways

Technical Specifications

Frequently Asked Questions

Q: Can the SM82-EZ-II-WX be used indoors?
A: Yes. Remove the grille and pull the port plug for improved bass response. Note that the IP65 rating only applies when the port is plugged and the unit is assembled for outdoor use.

Q: What transformer voltages does this speaker support?
A: The SM82-EZ-II-WX supports 25V, 70.7V, and 100V distributed audio systems via its six-position rotary tap switch, plus a direct 8-ohm bypass position.

Q: How is the Stealth™ bracket installed?
A: The proprietary tool-free Stealth™ bracket uses a cam-wedge mechanism. No special tools are required; the bracket clicks into place and locks securely with the integrated drive system.

Q: What does IP65 mean in practice?
A: IP65 means the speaker is fully dust-tight and protected against water jets from any direction — suitable for outdoor installations exposed to rain and hose-down cleaning.

Q: Is the SM82-EZ-II-WX UL listed?
A: Yes, it carries UL1480A listing, the standard for speakers in fire alarm and distributed audio systems in the United States.

Q: Can I order this speaker through creationnetworks.net with project pricing?
A: Yes. Contact us at creationnetworks.net for volume project pricing, system design assistance, and authorized SoundTube dealer support.
