Soundtube SM590I-II-WX 5.25" 2-way Extreme Weather Outdoor Surface Mount Spkr

SoundTube SM590I-II-WX 5.25" 2-Way Extreme Weather Outdoor Surface Mount Speaker

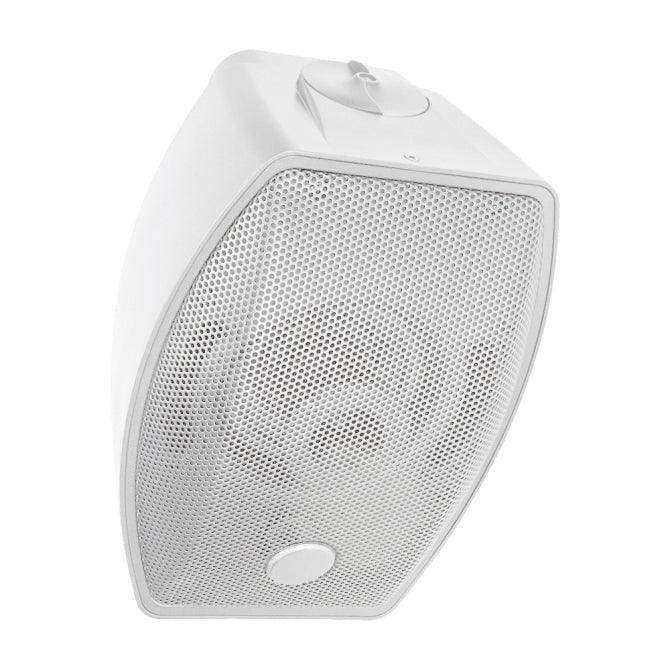

The SoundTube SM590I-II-WX is a 5.25" 2-way outdoor surface mount speaker from the SMi Surface Mount series, built to deliver high-output, high-clarity audio in extreme weather environments. SoundTube's WX Weather Guard technology — combining a dual-layer hydrophobic material behind the powder-coated aluminum grille with a fully sealed, ported ABS glass fiber reinforced enclosure — ensures drivers and internal electronics stay dry and fully operational through rain, humidity, and temperature extremes. The IP44-rated SM590I-II-WX is designed for environments where a standard outdoor speaker would fail, but where full-size speakers would be physically intrusive.

At the heart of the SM590I-II-WX is a 5.25" polypropylene woofer paired with a 1" convex titanium horn-loaded tractrix tweeter, delivering 87 dB average sensitivity and up to 160W of program power handling. The patented ZeroReflection™ enclosure technology minimizes standing waves for accurate, distortion-free reproduction — a meaningful distinction in high-SPL outdoor applications. A six-position selectable tap switch supports 25V, 70.7V, and 100V distributed systems, plus a direct 4-ohm bypass, making the SM590I-II-WX compatible with virtually any commercial or professional AV infrastructure.

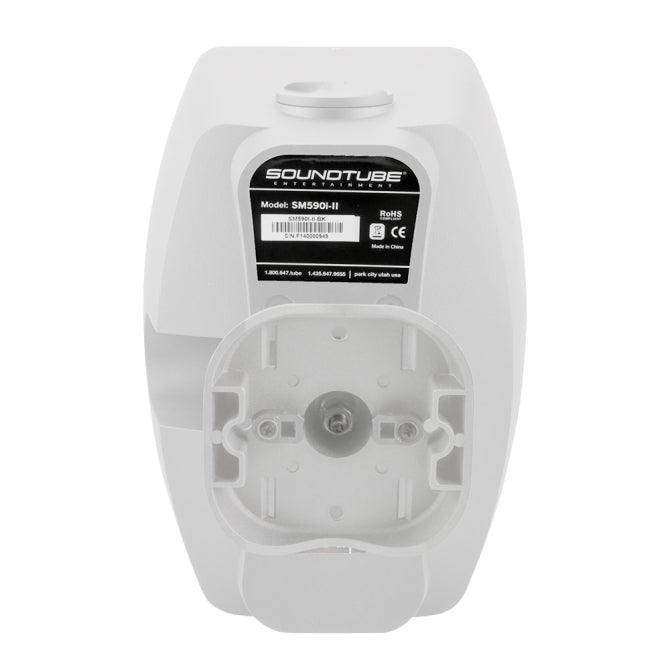

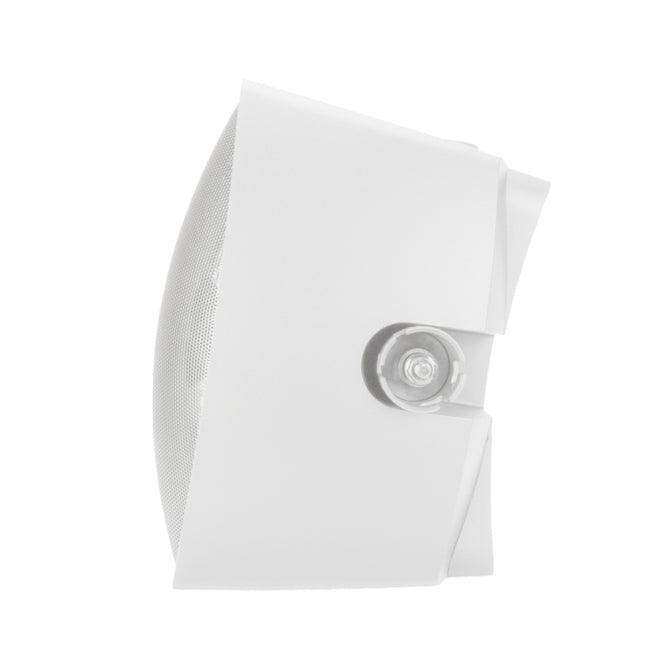

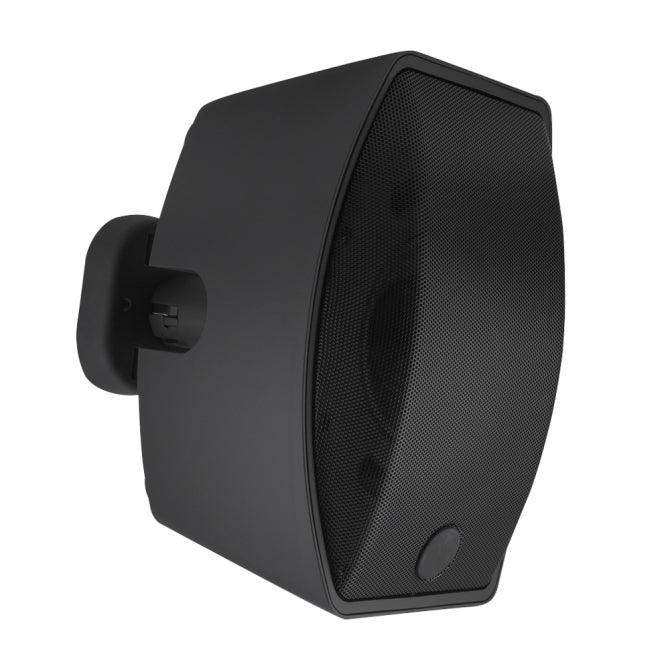

Installation is handled by the SM590I-II Stealth™ bracket system, allowing independent vertical and horizontal pivoting so the speaker can be aimed anywhere within the installation space while maintaining a low-profile footprint close to the wall. Included accessories cover a Euroblock connector, mounting hardware, safety cable, and terminal weather boot — everything needed for a code-compliant weatherproof installation. Available in black (SM590I-II-WX-BK) and white (SM590I-II-WX-WH).

Key Features

• WX Weather Guard Technology — Dual-layer hydrophobic grille material plus fully sealed enclosure (IP44) keep drivers and electronics protected from rain and moisture.
• 1" Convex Titanium Horn-Loaded Tweeter — Tractrix horn loading extends high-frequency projection for long-throw coverage in large outdoor spaces.
• 5.25" Polypropylene Woofer — Handles 80W RMS / 160W program for robust output in ambient-noise outdoor environments.
• ZeroReflection™ Enclosure — Patented SoundTube technology minimizes internal standing waves for accurate, distortion-free reproduction at high output levels.
• Stealth™ Bracket with Dual-Axis Pivot — Independent vertical and horizontal aiming allows precise coverage direction without additional mounting hardware.
• 6-Position Tap Switch — Supports 25V, 70.7V, 100V, and 4-ohm direct for compatibility with any distributed audio infrastructure.
• 87 dB Sensitivity — High-output efficiency reduces amplifier requirements in large outdoor multi-speaker deployments.
• Low-Profile Enclosure Design — Compact 11.4" H x 8.36" W footprint stays close to the wall for architectural discretion in visible outdoor locations.

Typical Applications

• Hotel and resort exterior areas: pool decks, courtyards, and porte-cocheres
• Covered outdoor dining areas, brewery patios, and sports bar terraces
• Stadium and arena exterior concourses and entry plazas
• Theme park queuing areas and outdoor attraction zones
• Campus pathway audio for universities and corporate campuses
• Outdoor retail and shopping center common areas with weather exposure

Technical Specifications

Frequently Asked Questions

Q: What does the IP44 rating mean for outdoor use?
A: IP44 indicates the speaker is protected against solid objects larger than 1 mm and water splashing from any direction — suitable for covered outdoor areas exposed to rain and weather, but not for direct submersion or high-pressure water jets.

Q: How does the SM590I-II-WX differ from the SM82-EZ-II-WX?
A: The SM590I is a smaller 5.25" 2-way speaker with a horn-loaded tweeter suited for tighter spaces and medium-distance coverage. The SM82-EZ-II-WX uses a larger 8" woofer with higher max SPL (106 dB) and IP65 rating, making it the better choice for larger areas and hose-down environments.

Q: Can this speaker be wall-mounted at an angle?
A: Yes. The Stealth™ bracket supports independent vertical and horizontal pivoting for precise aim in any direction from a fixed wall or ceiling mount point.

Q: What is the maximum tap wattage on 70V?
A: The maximum transformer tap is 64W at 70.7V. The total wattage of speakers connected to a single amplifier channel should not exceed the amplifier's rated output.

Q: Is a white version available?
A: Yes. The SM590I-II-WX is available in both black (SM590I-II-WX-BK) and white (SM590I-II-WX-WH). A white grille replacement (GRL-SM500-II-WX-WH) is also available as an accessory.

Q: Where can I buy the SM590I-II-WX with design support?
A: Contact Creation Networks at creationnetworks.net for project pricing, system design assistance, and authorized SoundTube dealer support.
