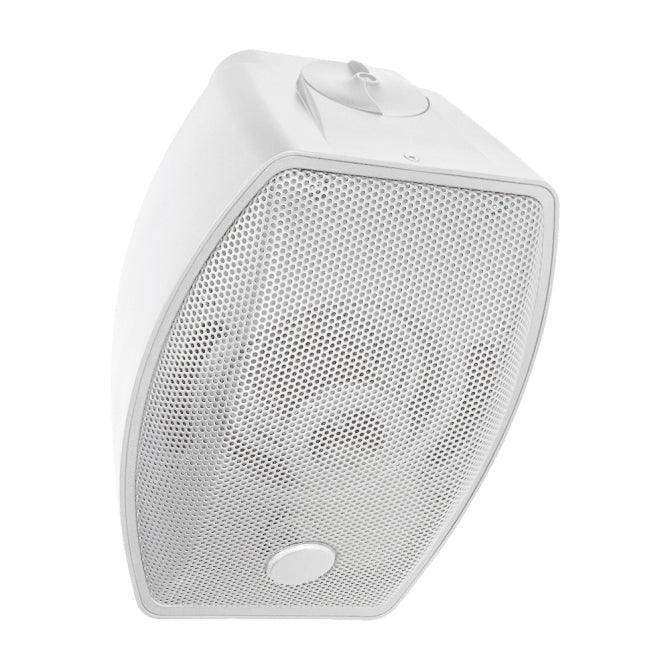

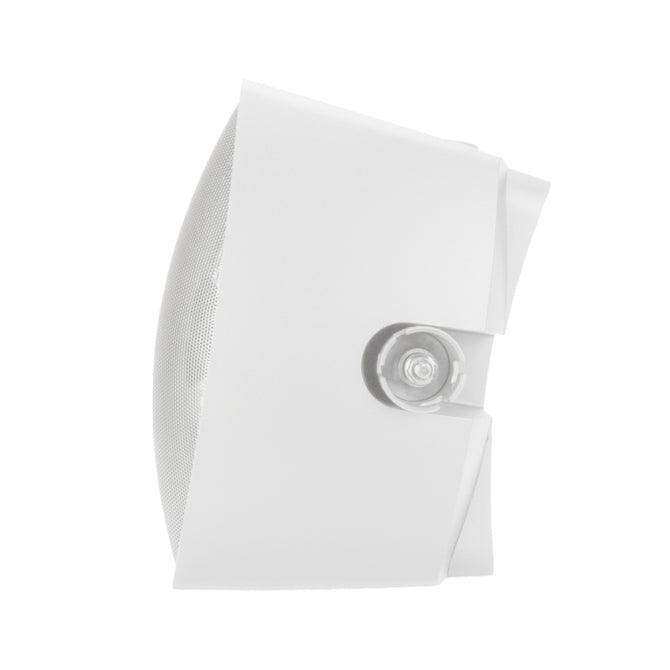

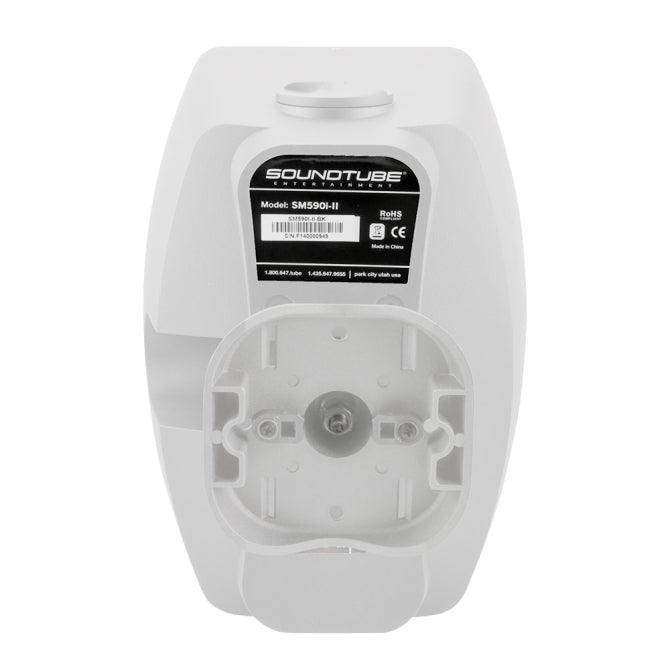

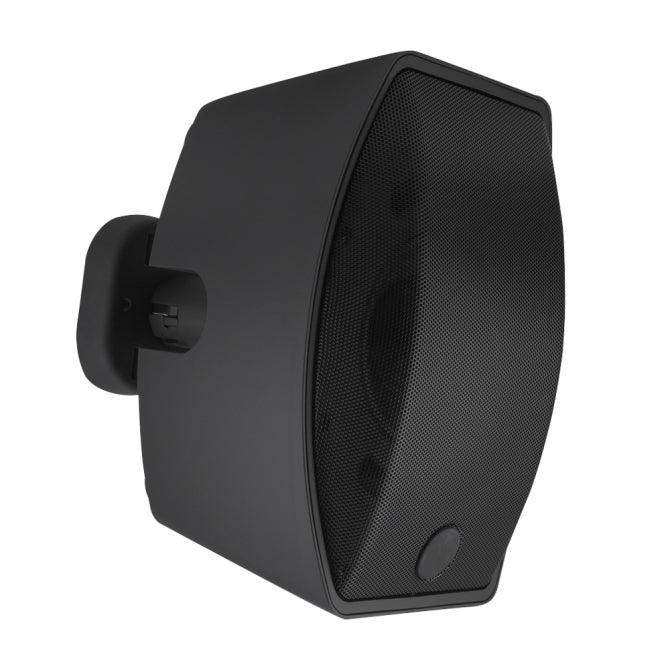

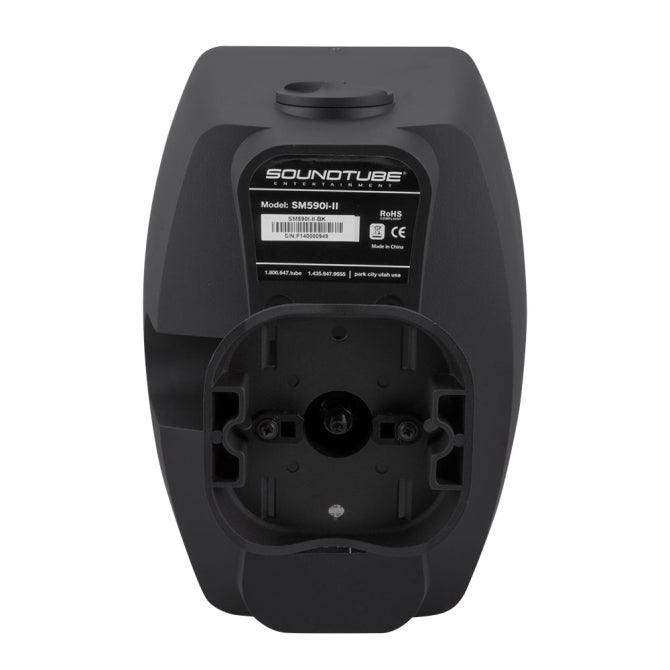

Soundtube SM590I-II 5.25" 2-way Outdoor Surface Mount Speaker

The SoundTube SM590I-II is a high-output 5.25-inch 2-way outdoor surface mount speaker designed for long-throw and high-SPL commercial audio applications where the SM500I-II series needs reinforcement. Its 5.25-inch polypropylene woofer pairs with a 1-inch convex titanium tweeter mounted in a tractrix horn-loaded configuration for focused, high-efficiency output — achieving 87 dB sensitivity and handling up to 80 W RMS. The ported ABS glass-fiber-reinforced enclosure employs patented ZeroReflection™ technology to eliminate internal resonances, and an IP55 weather rating ensures reliable operation through rain, humidity, and dusty outdoor conditions. The six-position tap switch supports 25 V, 70.7 V, and 100 V systems with bypass.

Available from Creation Networks, the SM590I-II uses the Stealth™ pivot bracket system for precise vertical and horizontal aiming, keeping the low-profile enclosure close to the wall surface for architectural cleanliness. This model is particularly well-suited to environments where wider speaker spacing is desired to reduce total unit count — the horn-loaded tweeter's focused dispersion pattern allows each speaker to cover more ground at higher SPL than BroadBeam-equipped models. Safety cable with mounting bolt, Euroblock connector, and wall mount bracket are included. Available in black and white finishes.

Key Features

• Tractrix Horn-Loaded Titanium Tweeter — Focused high-frequency dispersion enables greater speaker spacing and higher SPL per unit in outdoor coverage designs.
• IP55 Weather Rating — Protected against dust ingress and water jets from any direction; suited for exposed outdoor locations and direct rain environments.
• ZeroReflection™ Enclosure — Patented internal geometry eliminates standing waves for clean, accurate sound reproduction at high output levels.
• 80 W RMS Power Handling — High thermal capacity handles sustained outdoor audio system demand without driver fatigue.
• 6-Position Tap Switch — Supports 25/70.7/100 V and direct bypass; one model covers all distributed system voltage configurations.

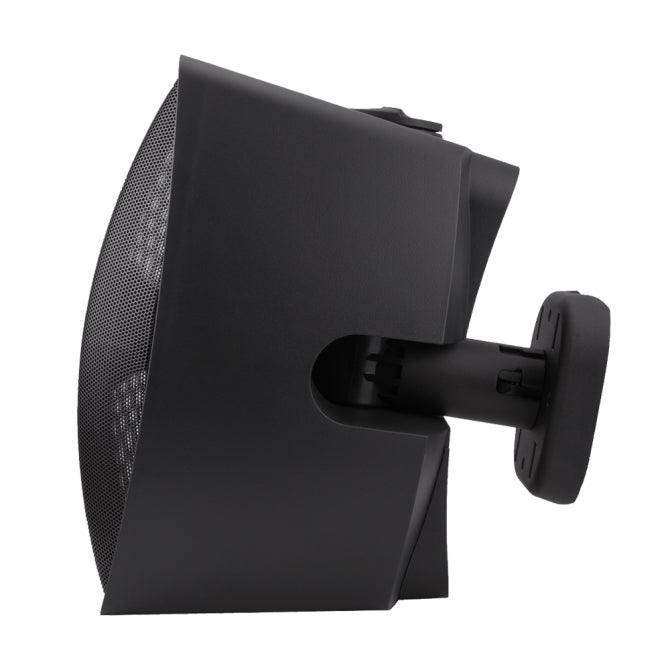

• Stealth™ Pivot Bracket — Vertical and horizontal pivot adjustment allows precise aiming after mounting; low-profile design sits close to the wall.
• 87 dB Sensitivity — Elevated efficiency compared to lower-tier outdoor models; reduces amplifier load in large outdoor zone designs.
• CE, IP55, RoHS Certified — Compliant with international commercial installation standards for outdoor environments.

Typical Applications

The SM590I-II is purpose-built for demanding outdoor and semi-outdoor commercial audio installations: amusement parks, sports stadiums and arenas, outdoor amphitheaters, pool and waterpark areas, covered parking structures, transit station platforms, drive-through restaurant lanes, hotel exterior grounds, and industrial facility yards where high output and weather resilience are non-negotiable.

Technical Specifications

Frequently Asked Questions

How does the SM590I-II differ from the SM500I-II-WX?

The SM590I-II uses a tractrix horn-loaded tweeter for focused high-SPL output and carries an IP55 rating for rain-jet resistance, making it the high-output choice for exposed and demanding environments. The SM500I-II-WX uses a BroadBeam waveguide for wider dispersion and IP44 protection with its WX hydrophobic barrier technology.

Is the SM590I-II suitable for direct rain exposure?

Yes. The IP55 rating certifies protection against water jets from any direction, making it appropriate for locations that receive direct rainfall such as building facades and open stadium areas.

What color options are available?

Both black (SM590I-II-BK) and white (SM590I-II-WH) finishes are stocked. Contact Creation Networks to confirm current availability.

Does it work with 70.7-volt distributed systems?

Yes. The built-in transformer accommodates 25 V, 70.7 V, and 100 V distributed audio, plus a direct 8 Ω bypass for low-impedance amplifier connections.

What mounting hardware is included?

Safety cable with speaker mounting bolt, Euroblock connector, and wall mount Stealth™ bracket are included. Optional accessories include additional safety cables, Euroblock connectors, and weatherboots.

What is the maximum SPL output of this speaker?

At 87 dB sensitivity and 80 W RMS, the SM590I-II can produce approximately 106 dB SPL at 1 meter in free field — suitable for high-ambient-noise outdoor environments.
