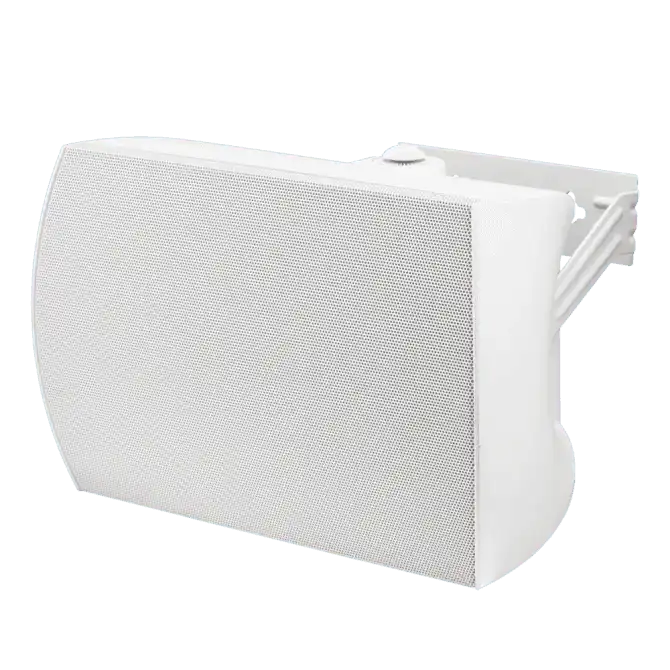

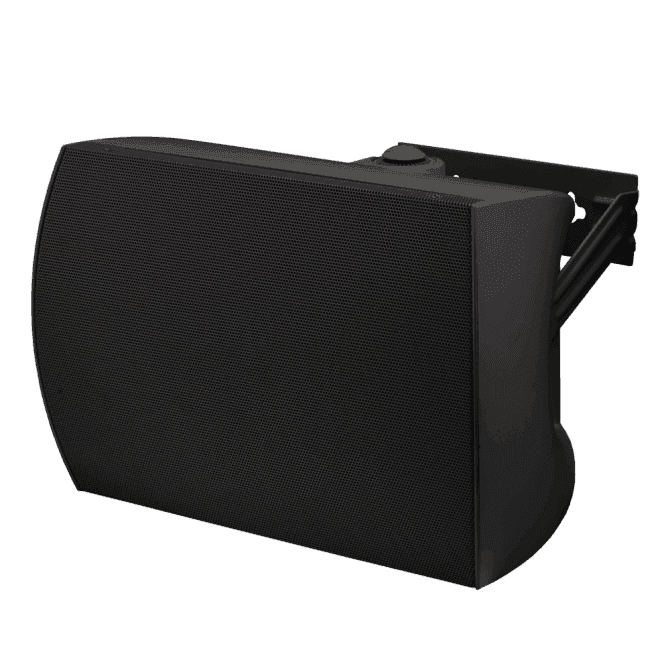

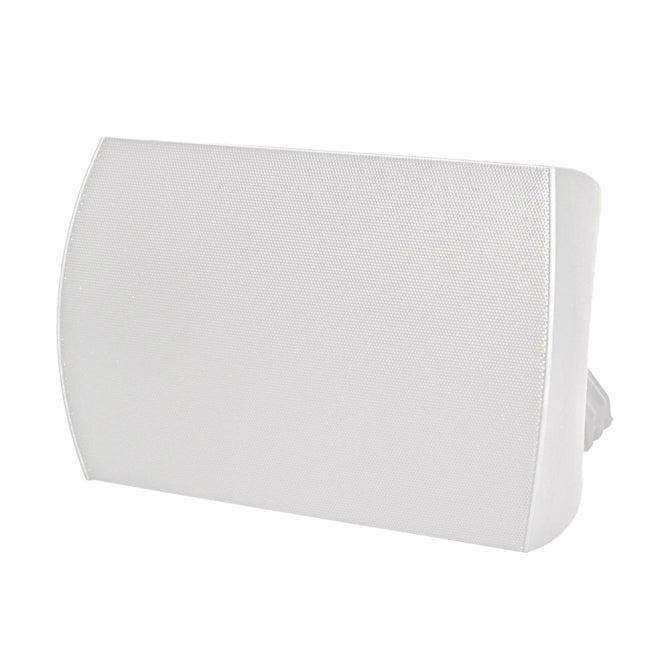

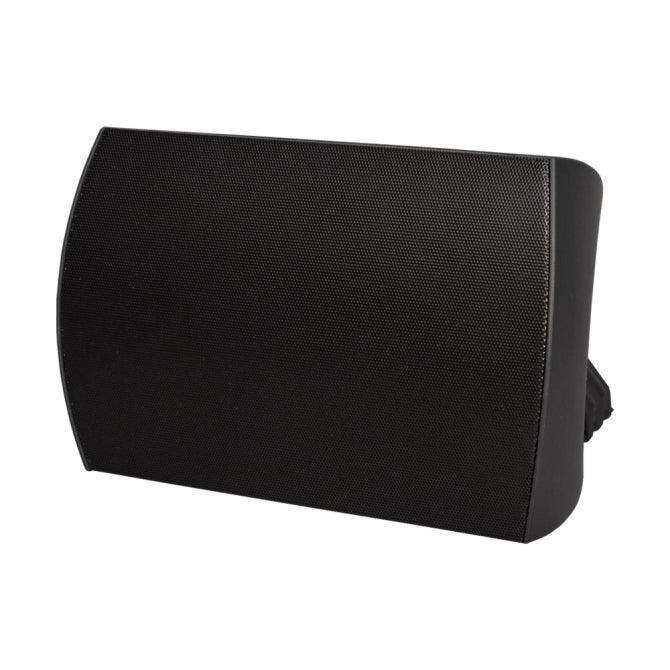

Soundtube SM52-EZ-WX 5.25" Extreme Weather Outdoor Surface Mount Speaker

Soundtube SKU: SM52-EZ-WX-BK
No reviews

Model: Black
Sale price$208.50


Designed for extreme weather resistance, the SM52-EZ-WX is an economical solution for integrators who need a surface-mount outdoor speaker option for music and paging applications. The speaker incorporates a dedicated 5.25 inch polypropylene woofer and an offset 1 inch soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 100.0 dB max. SPL). SoundTube's proprietary BroadBeam Ring™ technology in all models ensures high intelligibility, even well off-axis. The SM-EZ-WX speakers are Weather Extreme with an IP65 rating, meaning the speakers are dust-tight and will withstand water jets aimed directly at them when installed with the included port plugs. With its 32 watt transformer and 6 position tap switch, the SM52-EZ offers 25.5 V, 70.7 V and 100 V operation with an 8 ohm bypass. Inputs are made via ceramic terminal strips, making these speakers suitable for European voice evacuation systems. The SM52-EZ-WX contains a powder coated aluminum grille and mounting hardware, a safety cable, wall mount bracket, conduit connector, and port hole plug. IP-Rating: IP65.

*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use.

Manufacturer SoundTube
Manufacturer's Category SM-EZ Economical Surface Mount
Height 11.88 in / 301.8 mm
Width/Diameter 7.5 in / 190.5 mm
Shipping Weight 9.05 lbs / 4.11 kg
Carton Height 12 in / 304.8 mm
Carton Length 15.25 in / 387.35 mm
Carton Width 10.5 in / 266.7 mm
Certifications CE, EN54, IP65, RoHS, UL1480A
Enclosure Properties Polystyrene, Ported
Included Accessories Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland
Optional Accessories Black Surface Mount Bracket (AC-SMB-SM52-SS-BK)
Source Inputs 4 Pin Ceramic Terminal
IP Rating IP65
Coverage Angle (±6dB @ 2kHz) 70°
Crossover Frequency 3.5 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 6.9 and 5.9
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.2dB and 7.7dB
Frequency Response (± 10 dB) 62 Hz - 22 kHz
Frequency Response (± 3 dB) 80 Hz - 20 kHz
Grille Properties Aluminum, Powder-Coated
Low Frequency Voice Coil 1 in / 25.4 mm
Low Pass Crossover 12 dB per octave 2nd order
Max. Continuous Power RMS 50W
Max. Program Power 100 W
Minimum Impedance (Ω Ohms) 8 Ω
Mounting Depth 6.63 in / 168.4 mm
Network Type: High Pass 12 dB per octave 2nd order
Nominal Impedance (Ω Ohms) 8 Ω
Tweeter Driver 1" Soft Dome
Woofer Driver 5.25" Polypropylene
Sensitivity dB @ 1W/1M 83 dB
Sensitivity dB @ 2.83V/1M 83 dB
Tap Selector Rotary Switch
Transformer Options 25 / 70.7 / 100 V, 8 Ohm direct
