Soundtube SA202 Class AB Mini Amplifier with 20W per channel output at 4 Ohms.

Soundtube SKU: SA202
No reviews
Price:
$125.00

Description

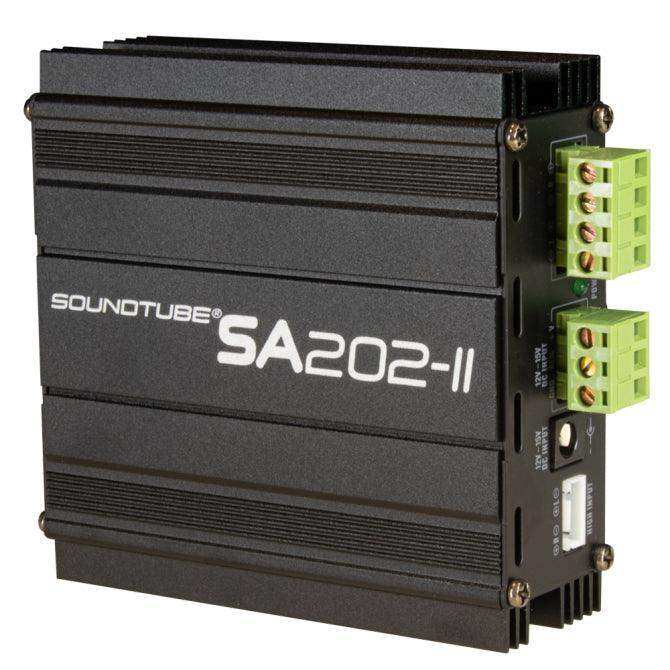

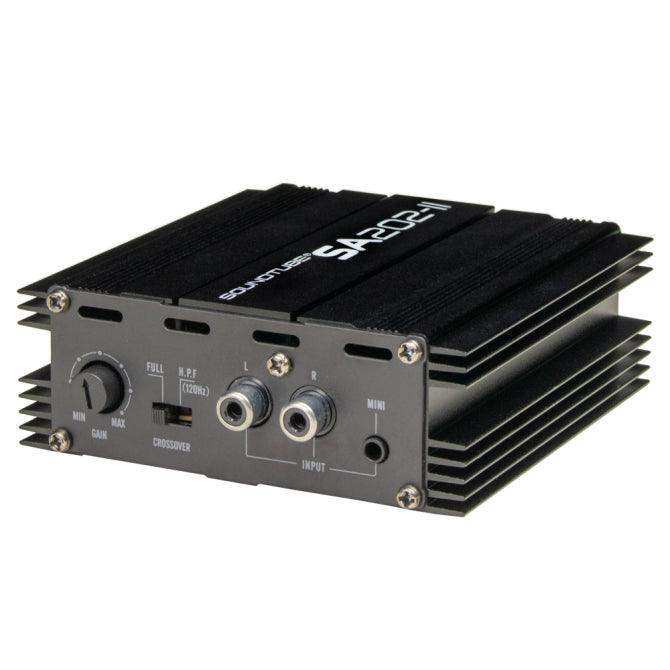

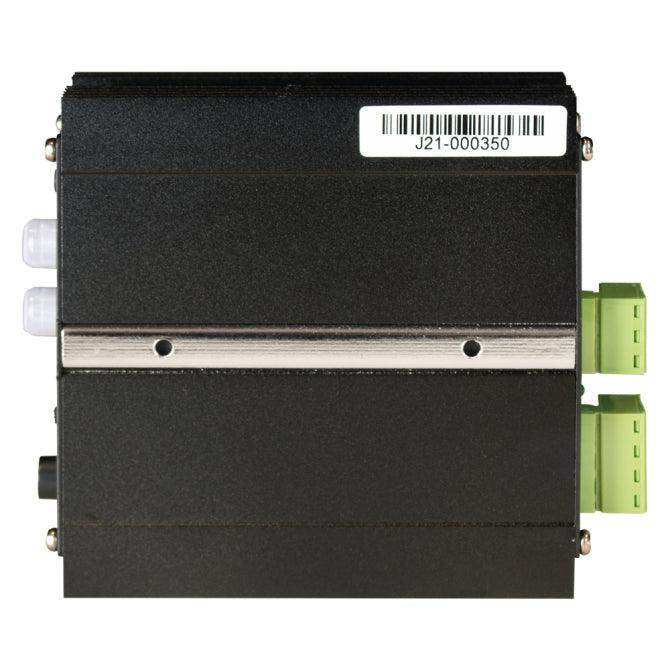

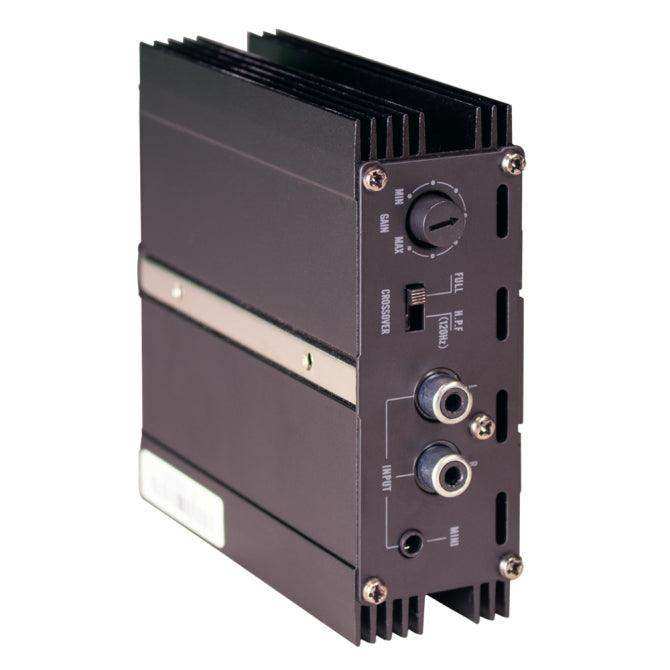

The SA202 amplifier is an ultra-compact, 2-channel amplifier with extra heat sink surfaces for extended duty at full power. Rated at 20 watts per channel output at 4 Ohms with max gain of 35 dB. Dual RCA, stereo mini jack, and high-level inputs. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Mounting hardware is included and adapts to pole, surface or security attachment installations.

Power per channel @ < 10 % THD: 20 watts (4 ohm stereo) 10 watts (8 ohm stereo

Power per channel @ < 1 % THD: 15 watts (4 ohm stereo) 8 watts (8 ohm stereo)

Color Black
UPC 644216234509
Manufacturer SoundTube
Manufacturer's Category Amplifier
Depth 4.86 in / 123.44 mm
Height 1.43 in / 36.2 mm
Width/Diameter 3.98 in / 101.09 mm
Shipping Weight 0.75 lbs / 0.34 kg
Carton Height 1.75 in / 44.45 mm
Carton Length 5.75 in / 146.05 mm
Carton Width 4.5 in / 114.3 mm
Certifications CE, RoHS
Included Accessories 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Pole/Surface Mount Adapter
Optional Accessories Rack Mount Adapter (AC-SA202-RMA)|Power Supply (PS1530-RDT)|UK Power Cord (AC-PSCORD-UK)|EU Power Cord (AC-PSCORD-EU)|China Power Cord (AC-PSCORD-CHINA)
Input Impedance 6K Ω
Output Type Euroblock
Voltage Gain 35 dB
Frequency Response (± 3 dB) 20 Hz - 20 kHz
