Soundtube RS62-EZ 6.5" Hanging Speaker

Soundtube SKU: RS62-EZ-BK
No reviews
Model: Black
Price:
$275.00

Description

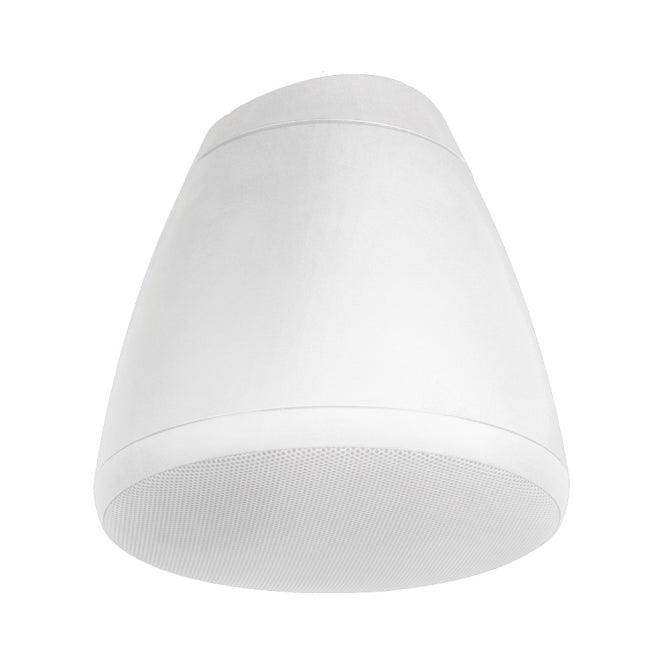

Designed for superior off-axis performance and easy installation, the RS62-EZ offers attractive styling in an economical speaker for open-ceiling uses. The RS62-EZ uses one 6.5 inch (165 mm) coaxial driver with BroadBeam Ring™ technology for consistently smooth high frequency sound and 16 ohm impedance for easy daisy chaining in low voltage systems. The RS62-EZ includes galvenized steel hanging cables and a built in mounting plate for suspending the speaker as well as a threaded opening on top of it®'s cover plate for direct-to-conduit mounting. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and includes an aluminum grille with protective powder coated finish. Cost effective engineering with high-performance sound makes the RS62-EZ speaker ideal for music and paging applications in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows and conference rooms and is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. For applications where additional bass is required, SoundTube®'s RS1001i-II-T 10-inch subwoofer may be used. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Manufacturer SoundTube
Manufacturer's Category RS-EZ Economical Pendant
Height 10.4 in / 264.2 mm
Width/Diameter 10.08 in / 256 mm
Shipping Weight 9.5 lbs / 4.31 kg
Carton Height 13.25 in / 336.55 mm
Carton Length 12 in / 304.8 mm
Carton Width 12 in / 304.8 mm
Certifications CE, EN54, RoHS, UL1480A
Enclosure Properties Ported, Reinforced ABS
Included Accessories Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland
Optional Accessories Black Grille (GRL-RS62-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Source Inputs 4 Pin Ceramic Terminal
Crossover Frequency 3.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 3.6 and 7.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.5dB and 8.5dB
Frequency Response (± 10 dB) 80 Hz - 22 kHz
Frequency Response (± 3 dB) 100 Hz - 22 kHz

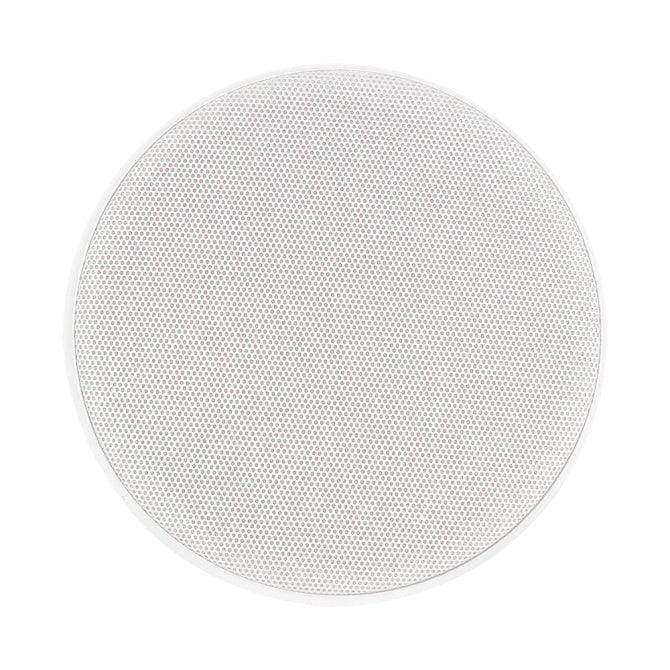

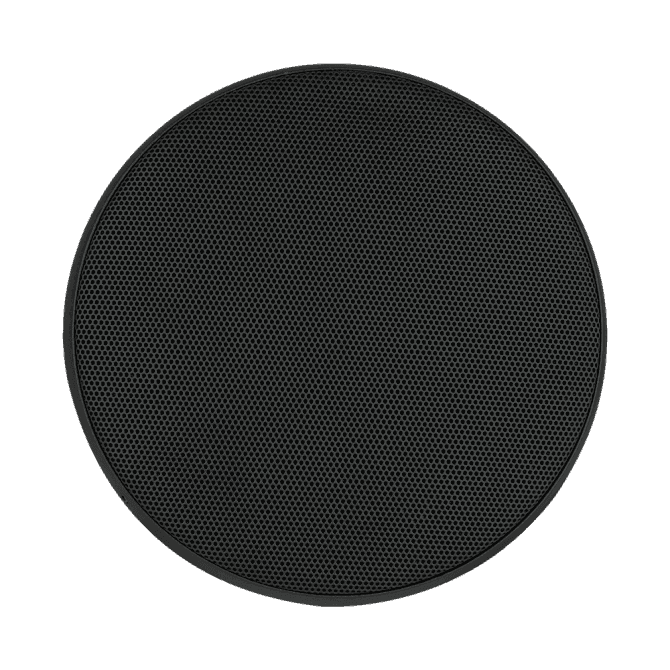

Grille Properties Aluminum, Powder-Coated
Low Frequency Voice Coil 1 in / 25.4 mm
Low Pass Crossover 6 dB per octave 1st order
Max. Continuous Power RMS 32W
Max. Program Power 64 W
Minimum Impedance (Ω Ohms) 16 Ω
Network Type: High Pass 6 dB per octave 1st order
Nominal Impedance (Ω Ohms) 16 Ω
Tweeter Driver 1" Silk Dome w/ BroadBeam Ring®
Woofer Driver 6.5" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M 91.2 dB
Sensitivity dB @ 2.83V/1M 88.2 dB

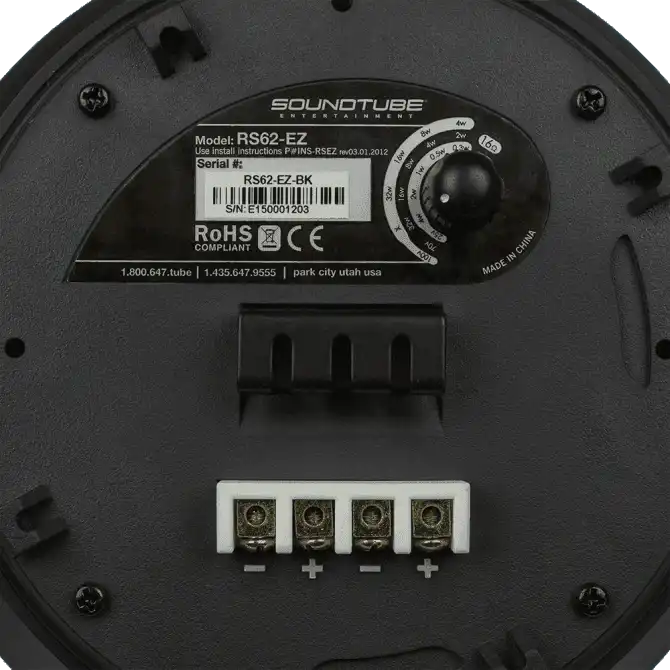

Tap Selector Rotary Switch
Transformer Options 25 / 70.7 / 100 V, 16 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V) 4W/32W/32W
