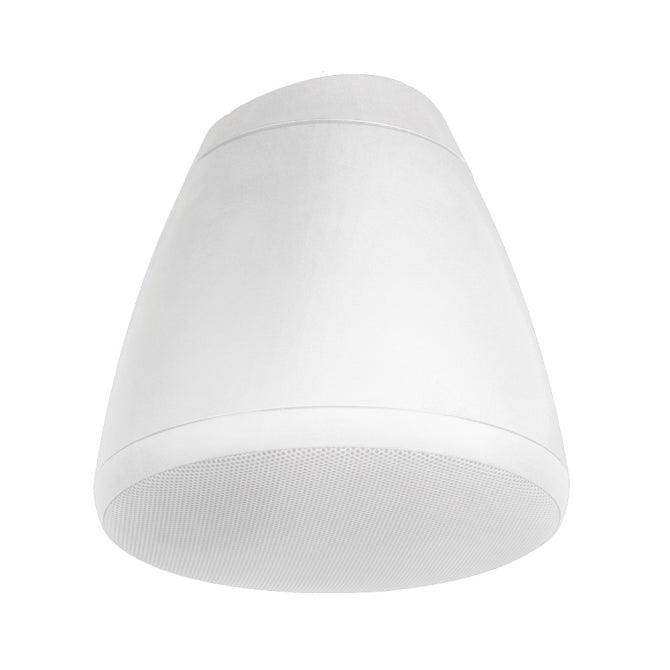

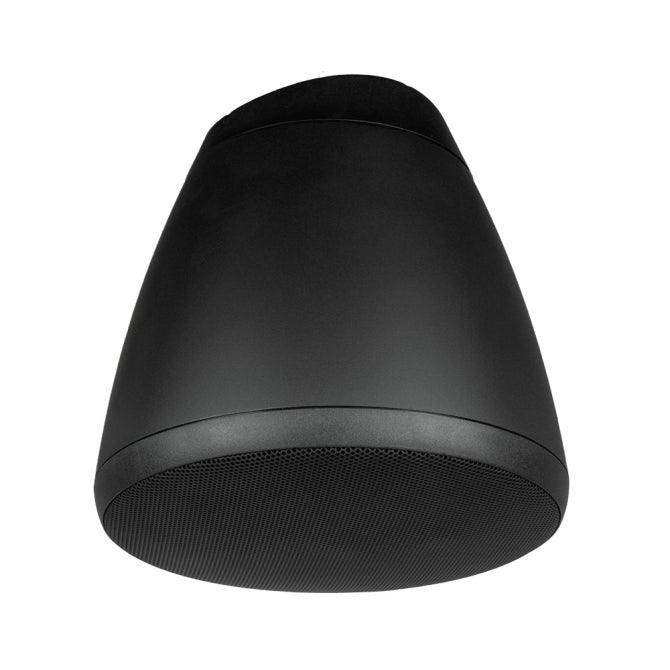

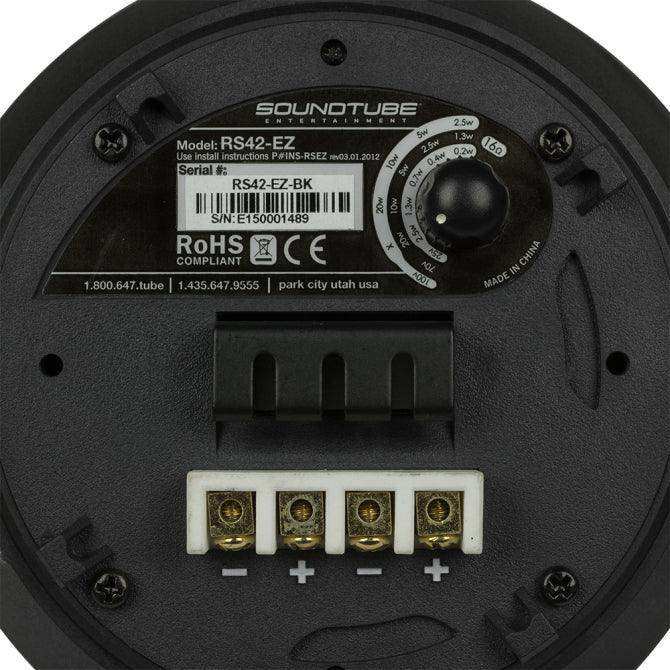

The RS42-EZ is a 4-inch, coaxial speaker with BroadBeam Ring™ technology for consistently smooth high frequency sound, designed for open-ceiling applications. Hanging hardware includes galvanized steel cables and a built in hanging bracket with a screw on cover plate for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. The RS42-EZ speaker utilizes a 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position and has a 16 ohm impedance for easy daisy chaining in low voltage systems. The ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. The RS42-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.
|Manufacturer's Category||RS-EZ Economical Pendant|
|Height||7.86 in / 199.6 mm|
|Width/Diameter||7.46 in / 189.5 mm|
|Shipping Weight||6.1 lbs / 2.77 kg|
|Carton Height||11 in / 279.4 mm|
|Carton Length||9.5 in / 241.3 mm|
|Carton Width||9.5 in / 241.3 mm|
|Certifications||CE, EN54, RoHS, UL1480A|
|Enclosure Properties||Ported, Reinforced ABS|
|Included Accessories||Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland|
|Optional Accessories||White Grille (GRL-RS42-EZ-WH)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|White Mounting Bracket (AC-RS-SM5-WH)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|White Split Loom Tubing (AC-SLT-10-WH)|Snap Link (AC-SL1)|
|Source Inputs||4 Pin Ceramic Terminal|
|Crossover Frequency||4.5 kHz|
|Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)||2.8 and 5.5|
|Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)||4.4dB and 7.4dB|
|Frequency Response (± 10 dB)||100 Hz - 22 kHz|
|Frequency Response (± 3 dB)||140 Hz - 22 kHz|

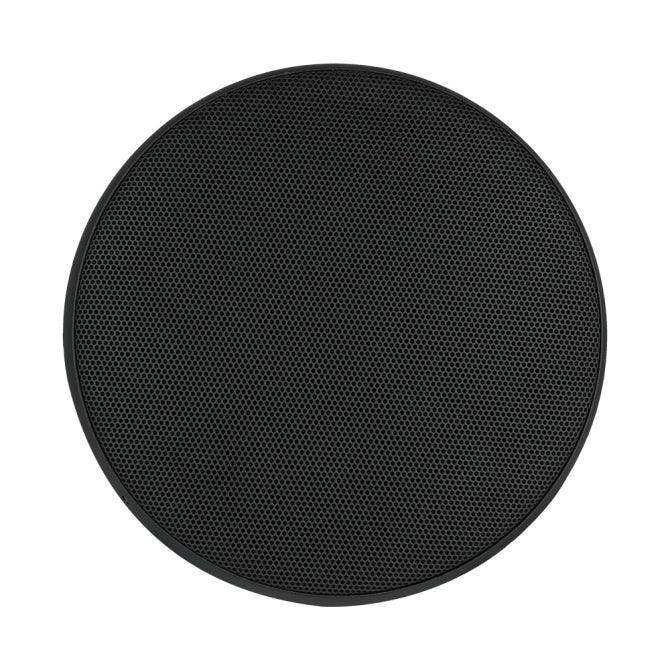

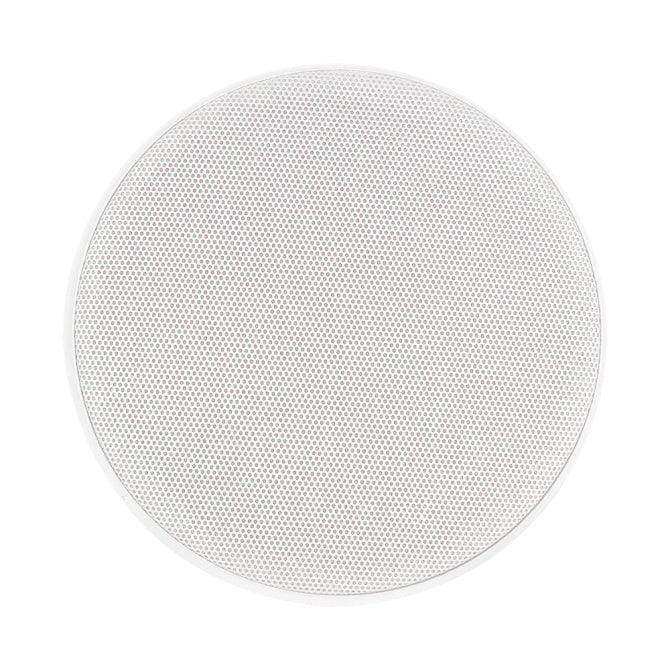

|Grille Properties||Aluminum, Powder-Coated|
|Low Frequency Voice Coil||1 in / 25.4 mm|
|Low Pass Crossover||12 dB per octave 2nd order|
|Max. Continuous Power RMS||20W|
|Max. Program Power||40 W|
|Minimum Impedance (Ω Ohms)||16 Ω|
|Network Type: High Pass||6 dB per octave 1st order|
|Nominal Impedance (Ω Ohms)||16 Ω|
|Tweeter Driver||1" Silk Dome w/ BroadBeam Ring®|
|Woofer Driver||4" Polypropylene Cone with Butyl Rubber Surround|
|Sensitivity dB @ 1W/1M||85.4 dB|
|Sensitivity dB @ 2.83V/1M||81.4 dB|
|Tap Selector||Rotary Switch|
|Transformer Options||25 / 70.7 / 100 V, 16 Ohm direct|
|Transformer Taps Max. Setting (25V/70.7V/100V)||2.5W/20W/20W|
