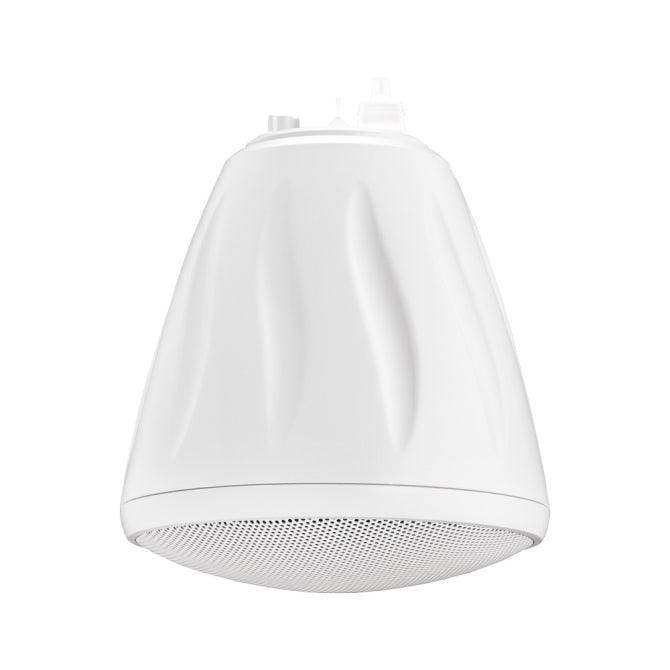

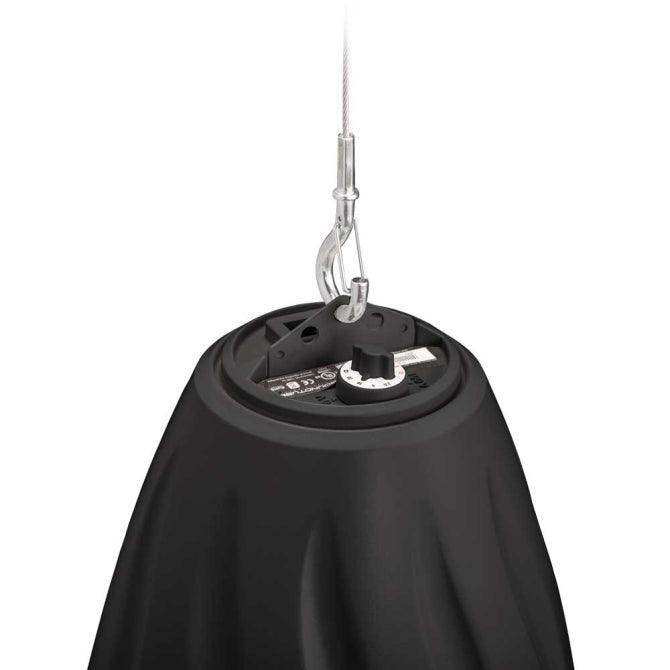

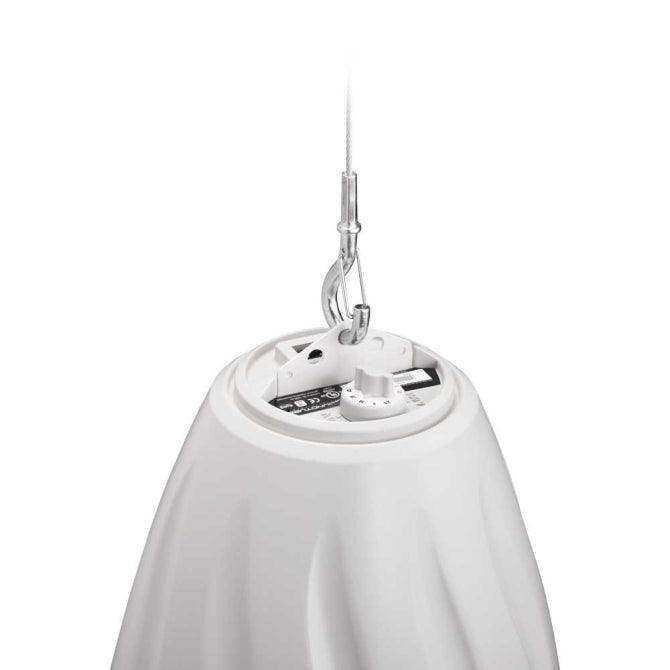

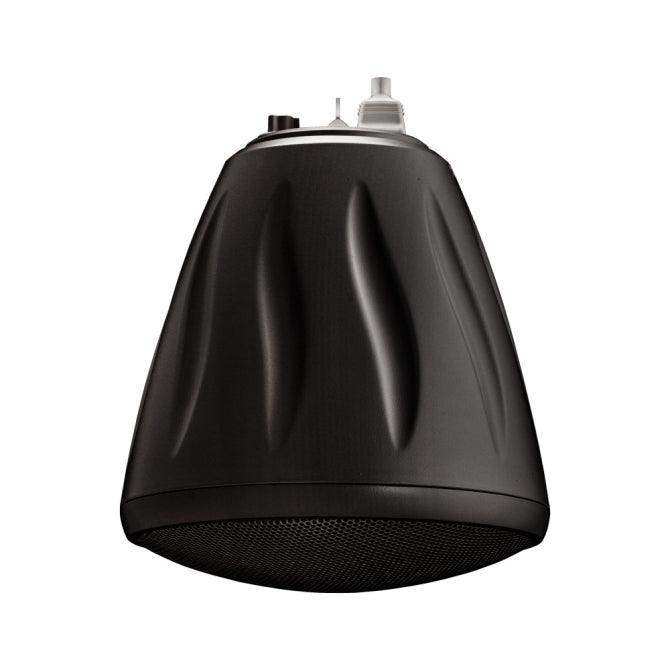

The RS400i has a 4-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design that delivers effective low-end response (76 Hz) and 125° off-axis performance (2 to 10 kHz, independently verified). The speaker uses patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®'s proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio coverage across the operating band-width. The RS400i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking with transformer bypass position. Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Euro-block connector and terminal weather boot are included.
|Manufacturer's Category||RSi Original Pendant|
|Height||8.8 in / 223.5 mm|
|Width/Diameter||7.7 in / 195.6 mm|
|Shipping Weight||7.2 lbs / 3.27 kg|
|Carton Height||10.5 in / 266.7 mm|
|Carton Length||10 in / 254 mm|
|Carton Width||10 in / 254 mm|
|Certifications||CE, RoHS, UL1480A, UL2239|
|Enclosure Properties||ABS Glass Fiber Reinforced, Injection Molded, Ported|
|Enclosure Volume||154.7 cu in / 2535.08 cu cm|
|Included Accessories||Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot|
|Optional Accessories||Black Grille (GRL-RS400-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-M-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)|
|Source Inputs||4 Pin 5.08mm Euroblock|
|Coverage Angle (±6dB @ 2kHz)||80°|
|Crossover Frequency||2.3 kHz|
|Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)||3.5 and 4.6|
|Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)||4.2dB and 6.6dB|
|Frequency Response (± 10 dB)||76 Hz - 22 kHz|
|Frequency Response (± 3 dB)||95 Hz - 20 kHz|
|Grille Properties||Powder-Coated, Steel|
|Low Frequency Voice Coil||1 in / 25.4 mm|
|Low Pass Crossover||12 dB per octave 2nd order|
|Max. Continuous Power RMS||20W|
|Max. Program Power||40 W|
|Minimum Impedance (Ω Ohms)||4.5 Ω|
|Network Type: High Pass||12 dB per octave 2nd order|
|Nominal Impedance (Ω Ohms)||4 Ω|
|Tweeter Driver||1" Convex Aluminum w/ BroadBeam® Waveguide|
|Woofer Driver||4" Polypropylene Cone with Butyl Rubber Surround|
|Sensitivity dB @ 1W/1M||82.5 dB|
|Sensitivity dB @ 2.83V/1M||85.5 dB|
|Tap Selector||Rotary Switch|
|Transformer Options||25 / 70.7 / 100 V, 4 Ohm direct|
|Transformer Taps Max. Setting (25V/70.7V/100V)||2.5W/20W/20W|
