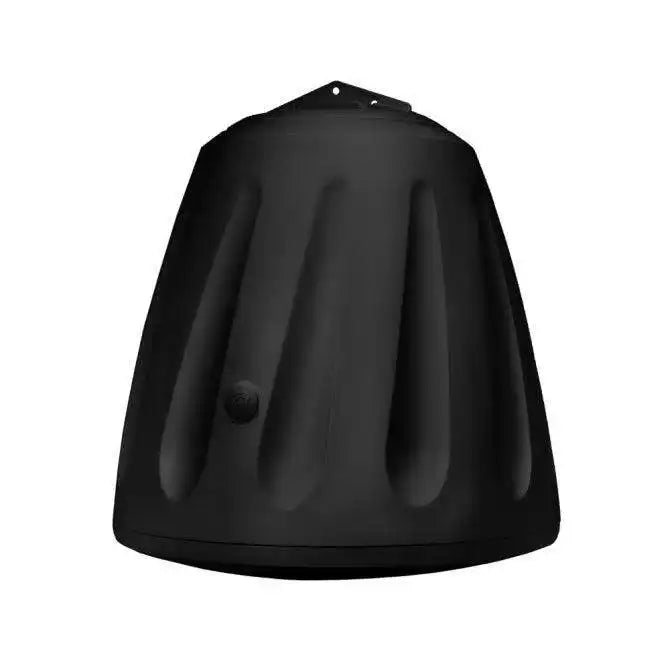

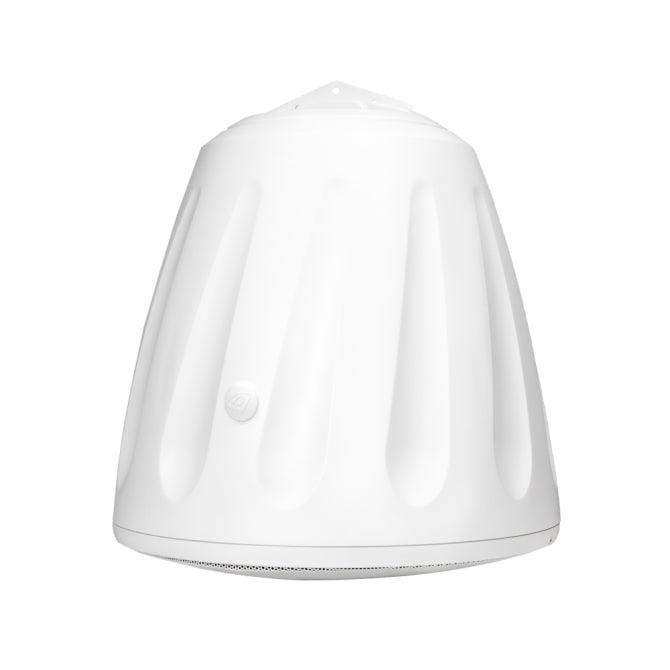

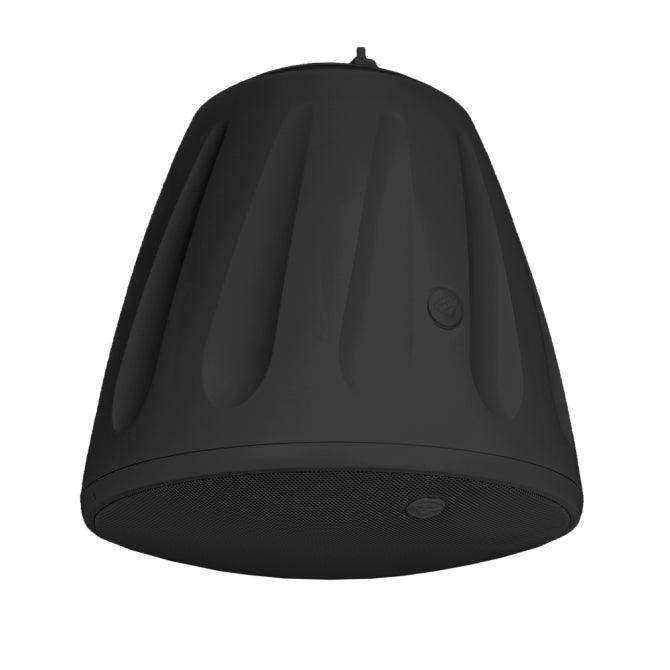

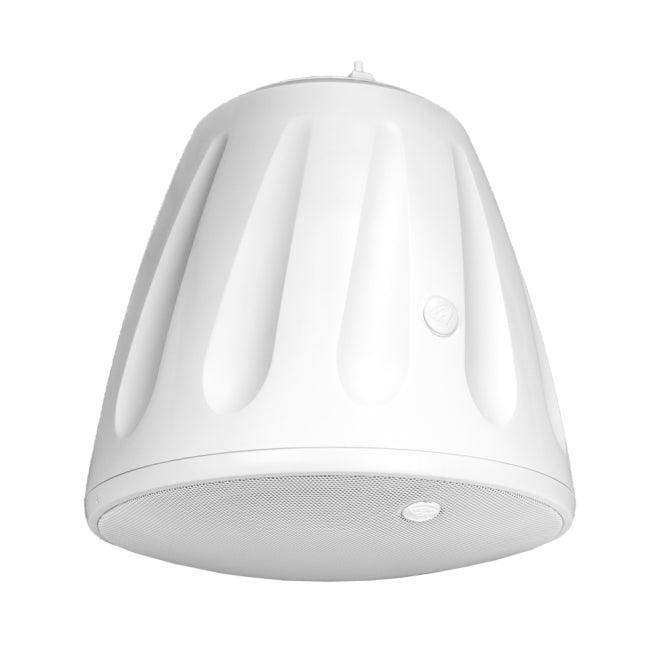

Soundtube RS1201I 12" SuperT Pendant subwoofer

Product Overview

The SoundTube RS1201I is a professional-grade 12-inch pendant subwoofer engineered for demanding commercial audio environments where deep, accurate bass reinforcement is required overhead. Built around the proprietary SuperT™ transformer — designed specifically to handle low subwoofer frequencies with minimal signal loss — the RS1201I delivers verified performance from 32 Hz to 200 Hz in a rugged, injection-molded ABS enclosure. Available in black (RS1201I-BK) or white (RS1201I-WH) finish, this pendant subwoofer integrates seamlessly into distributed 70.7V, 100V, or 4-ohm systems, making it the industry’s most versatile overhead low-frequency solution for integrators who cannot compromise on bass output or installation reliability.

Product Description

The SoundTube RS1201I redefines what a pendant subwoofer can achieve in a large-venue commercial installation. At its core is a 12-inch treated fiber cone woofer paired with a treated cloth surround, housed in a tuned and ported ABS enclosure that has been independently verified to produce a frequency response of 32 Hz to 200 Hz (±10 dB) and a maximum SPL of 113 dB — performance metrics that rival much larger rack-mount subwoofer systems.

The defining technology in the RS1201I is the SuperT™ transformer, SoundTube’s proprietary low-frequency transformer that eliminates the signal degradation and bass roll-off that plague conventional 70V transformers at subwoofer frequencies. A two-position rotary tap switch allows the installer to select the appropriate tap for 70.7V, 100V, or 4-ohm direct operation without the need for additional wiring or hardware changes.

Installation is engineered for speed and safety. The RS1201I ships with UL-listed hanging cables, an integrated SpeedClamp™ self-locking wire clamp that secures the safety cable without tools, and a 4-pin 5.08mm Euroblock connector with a terminal weather boot that protects the connection point from environmental contaminants. The powder-coated steel grille provides both acoustic transparency and physical protection for the woofer cone.

For projects requiring surface mounting rather than free-hanging installation, the optional AC-HP-SM1290 bracket converts the RS1201I to a surface-mount configuration with no acoustic compromise. The enclosure carries CE and RoHS certifications, meeting both safety and environmental compliance requirements for commercial projects worldwide.

With a sensitivity of 90 dB (1W/1M) and 92 dB (2.83V/1M), the RS1201I operates efficiently within distributed audio amplifier headroom budgets, and its 150W continuous RMS / 300W program power handling ensures it will not become a system bottleneck even in high-output commercial applications. Whether flown in a ballroom, retail atrium, or sports bar, the RS1201I provides the low-frequency foundation that makes a distributed audio system feel complete.

Key Features

• SuperT™ Low-Frequency Transformer — Proprietary transformer designed specifically for subwoofer frequencies, eliminating bass roll-off inherent in standard 70V transformers and preserving full low-end impact across the operating band.
• 12” Treated Fiber Cone Woofer — Large-format driver with treated cloth surround delivers independently verified 32 Hz–200 Hz (±10 dB) response and 113 dB maximum SPL for authoritative bass in large spaces.
• Dual-Mode Voltage Compatibility — Rotary tap switch supports 70.7V, 100V, and 4-ohm operation, providing installation flexibility across virtually all commercial distributed audio architectures.
• SpeedClamp™ Self-Locking Safety Cable System — Integrated tool-free wire clamp with UL-listed cables accelerates rigging and meets commercial safety requirements without additional hardware.
• Tuned Ported ABS Enclosure — Injection-molded, ported enclosure is tuned to maximize bass extension and output within the pendant form factor, with CE and RoHS certification for global project compliance.
• Powder-Coated Steel Grille — Acoustically transparent steel grille protects the woofer while maintaining the clean pendant aesthetic in architectural environments.
• 4-Pin Euroblock with Weather Boot — Tool-accessible Euroblock connector with included weather boot simplifies wiring and protects the termination point in high-humidity commercial venues.
• Surface Mount Compatible — Optional AC-HP-SM1290 bracket enables surface-mount deployment for applications where pendant hanging is not architecturally suitable.

Typical Applications

• Hotel ballrooms and multi-purpose event spaces requiring distributed low-frequency reinforcement without floor-standing subwoofers
• Large-format retail environments and shopping concourses where bass presence is required overhead without obstructing floor areas
• Sports bars and entertainment venues with distributed audio systems operating on 70.7V or 100V infrastructure
• Convention centers and conference facilities with variable room configurations that benefit from overhead, zone-assignable bass sources
• Airport terminals and transportation hubs with high-ceiling atriums requiring pendant audio coverage
• Houses of worship with high ceiling clearances and existing distributed audio infrastructure

Technical Specifications

Frequently Asked Questions

What makes the SuperT™ transformer different from a standard 70V transformer?

Conventional 70V transformers are optimized for midrange and high-frequency drivers and exhibit significant bass roll-off below 80–100 Hz. The SuperT™ is a SoundTube-proprietary design engineered specifically to pass subwoofer-range frequencies (down to 32 Hz) with very low losses, preserving the full low-end output that a standard transformer would attenuate.

Can the RS1201I be used with a standard 4-ohm amplifier output?

Yes. The rotary tap switch includes a 4-ohm direct mode in addition to the 70.7V and 100V distributed audio taps. In 4-ohm mode the SuperT™ transformer is bypassed, allowing the RS1201I to be driven directly from a conventional low-impedance amplifier output at its full 150W RMS / 300W program rating.

Is the RS1201I suitable for outdoor or semi-outdoor commercial installations?

The RS1201I is designed for indoor commercial use. While the ABS enclosure is durable, the speaker does not carry an IP or NEMA weather rating. For covered outdoor applications, consult your Creation Networks representative for appropriate outdoor-rated alternatives.

How many RS1201I subwoofers are typically required for a large ballroom?

The quantity depends on room volume, target SPL, and the number of satellite full-range speakers in the system. As a general guideline for commercial 70V distributed systems, one RS1201I is typically deployed for every four to six satellite pendant speakers it is intended to support. A Creation Networks design engineer can provide a system-specific recommendation.

What is the recommended crossover frequency when integrating the RS1201I with SoundTube full-range pendants?

SoundTube recommends a low-pass crossover between 80 Hz and 120 Hz for the RS1201I, with the corresponding high-pass filter applied to the satellite speakers. The exact crossover point should be adjusted based on the low-frequency roll-off of the full-range speakers in the system and the room’s acoustic characteristics.

Does the RS1201I require a separate subwoofer amplifier channel?

In 70.7V or 100V distributed mode, the RS1201I is driven from a distributed audio amplifier output and does not require a dedicated channel. In 4-ohm direct mode, a dedicated amplifier output or subwoofer amplifier channel is recommended to allow independent level and crossover control.

What is included in the box, and is additional hardware needed for installation?

The RS1201I ships with Euroblock connector, hanging hardware, UL-listed safety cable with integrated SpeedClamp™, and a terminal weather boot. No additional mounting hardware is required for standard pendant installation. The optional AC-HP-SM1290 bracket must be ordered separately for surface-mount applications.

For professional system design assistance, volume pricing, or project consultation, contact Creation Networks.
