Soundtube RS1001I-II-T 10" Hanging Speaker with Transformer

SoundTube RS1001I-II-T 10" Hanging Subwoofer Speaker with Transformer

The SoundTube RS1001I-II-T is a 10-inch open-ceiling pendant subwoofer engineered for maximum low-frequency output and broad bandwidth performance in commercial audio installations. Incorporating a 10-inch polypropylene woofer with a butyl rubber surround in a tuned and ported ABS glass-fiber-reinforced enclosure, this hanging speaker delivers independently verified frequency response from 38 Hz to 450 Hz (±10 dB) and a maximum SPL of 105 dB. Available in both Black (RS1001I-II-T-BK) and White (RS1001I-II-T-WH), the speaker is certified CE, RoHS, UL1480A, and UL2239, and ships with UL-listed hanging and safety cables as well as the integrated SpeedClamp™ self-locking wire clamp for rapid, secure installation. The five-position transformer tap switch — covering 25 V, 70.7 V, and 100 V distributed audio systems as well as a bypass position for 8-ohm direct — makes it a versatile single-SKU solution for contractors who work across multiple system topologies. Order from Creation Networks, your authorized SoundTube dealer.

Full Product Description

Designed for open-ceiling commercial environments where extended low-frequency reproduction is required, the RS1001I-II-T integrates seamlessly with SoundTube's RSi full-range pendant speakers. The ZeroReflection™ enclosure design eliminates internal standing waves, while the tuned port maximizes bass output within the enclosure's 1,288 cubic-inch volume. Wiring is simplified by the included 4-pin Euroblock connector, and installation hardware — including hanging cable, safety cable, and a terminal weather boot — is packed with every unit. The rotary tap switch is accessible without tools, reducing time on the job site when adjusting voltage taps. Maximum continuous power handling is 150 W RMS (300 W program), and nominal impedance is 8 ohms. The RS1001I-II-T can also be surface-mounted using the optional AC-RS-SM8 bracket when ceiling suspension is not feasible. Carton dimensions are 18 × 18 × 19.5 inches with a shipping weight of 30.2 lbs. Available from Creation Networks.

Key Features

• 10" Polypropylene Woofer: Butyl rubber surround delivers extended low-frequency response from 38 Hz to 450 Hz (±10 dB)
• 105 dB Max SPL: High-output subwoofer performance for large open commercial spaces
• Five-Position Tap Switch: Supports 25 V, 70.7 V, 100 V distributed systems and 8-ohm direct bypass — one SKU covers all system types
• SpeedClamp™ Hardware: Integrated self-locking wire clamp for fast, secure, and code-compliant installation
• UL-Listed Hanging & Safety Cables: Included in-box for immediate deployment
• ZeroReflection™ Enclosure: ABS glass-fiber-reinforced ported cabinet tuned to eliminate internal standing waves
• 150 W RMS / 300 W Program: High power capacity for demanding commercial sound reinforcement applications

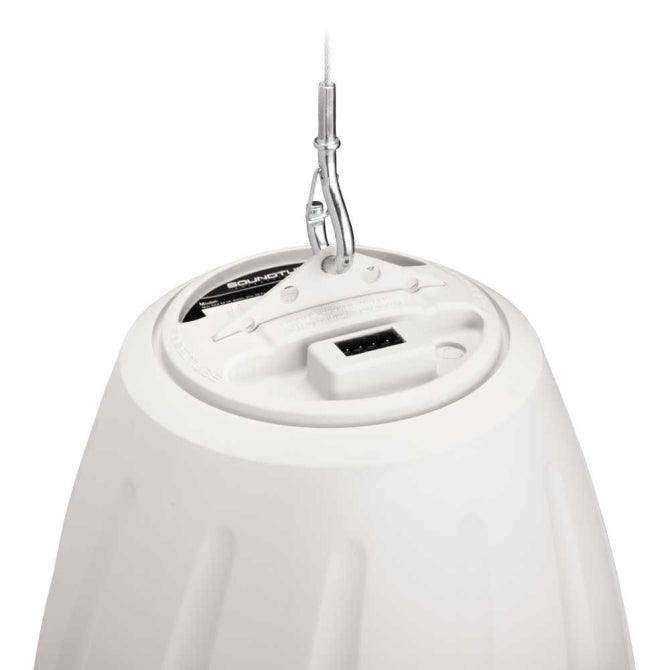

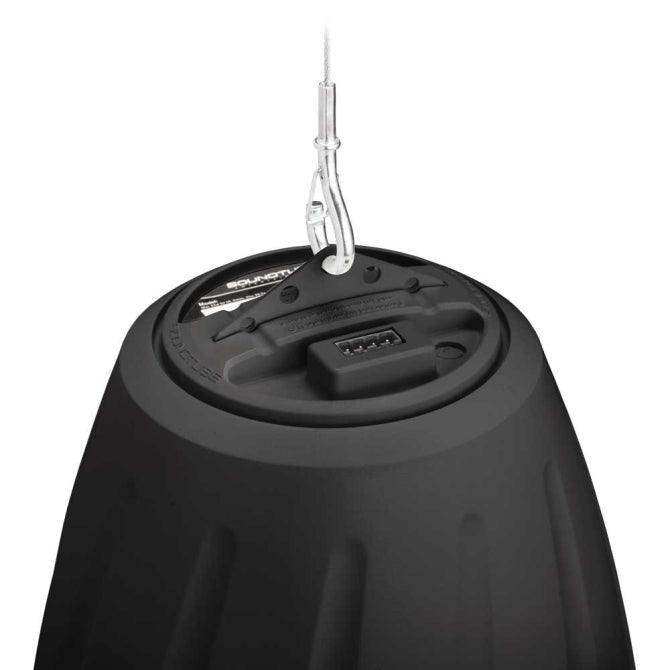

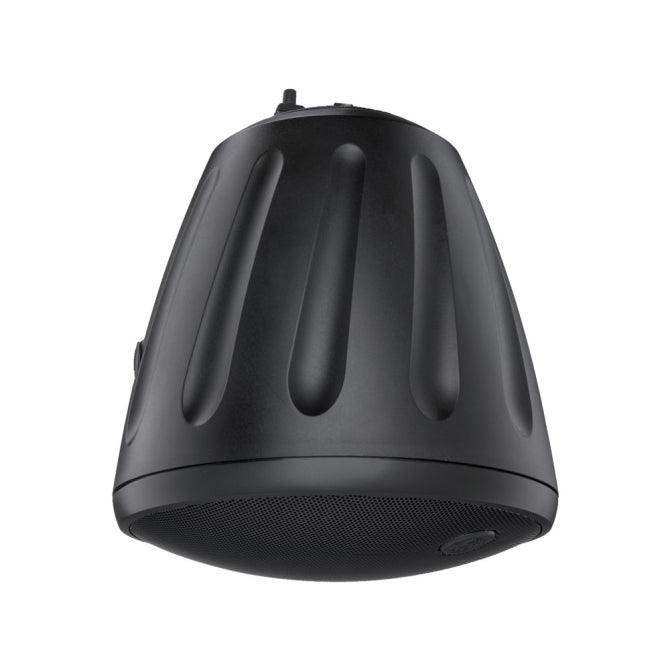

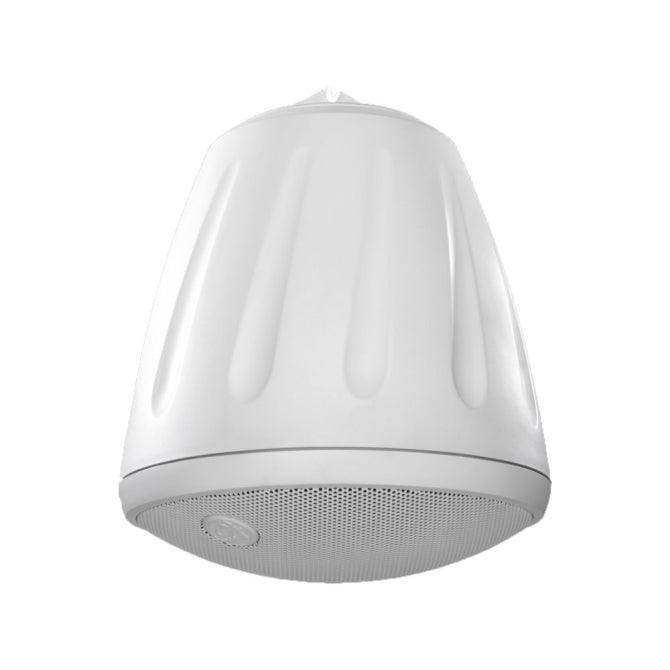

• Available in Black or White: Two finish options to match architectural intent
• Surface-Mount Compatible: Optional AC-RS-SM8 bracket enables surface mounting when ceiling suspension is not possible
• Certifications: CE, RoHS, UL1480A, UL2239

Typical Applications

The RS1001I-II-T is well suited for commercial dining venues, retail environments with open ceilings, large hotel lobbies, airport concourses, nightclubs, and entertainment venues where low-frequency reinforcement is needed. It pairs acoustically with SoundTube RSi series full-range pendant speakers. For multi-zone distributed audio systems running 70.7 V or 100 V, the integrated transformer eliminates the need for separate transformer components. Contact Creation Networks for project design assistance and volume pricing.

Technical Specifications

Frequently Asked Questions

Is this a full-range speaker or a subwoofer?

The RS1001I-II-T is a pendant subwoofer with a frequency response of 38–450 Hz (±10 dB). It is designed to be paired with SoundTube RSi full-range pendant speakers to create a complete commercial sound system.

What distributed audio voltages does the transformer support?

The integrated five-position tap switch supports 25 V, 70.7 V, and 100 V distributed audio systems, plus a bypass position for 8-ohm direct connection — making this a single-SKU solution for multiple system types.

Can this speaker be surface-mounted instead of hung?

Yes. The optional AC-RS-SM8-BK (black) or AC-RS-SM8-WH (white) bracket enables surface mounting on walls or structural elements when ceiling suspension is not practical.

What installation hardware is included?

Each unit ships with UL-listed hanging and safety cables, an integrated SpeedClamp™ self-locking wire clamp, a 4-pin Euroblock connector, and a terminal weather boot.

What is the maximum power handling?

The RS1001I-II-T handles 150 W RMS continuous and 300 W program power.

Is the RS1001I-II-T available in both black and white?

Yes. Both finish options (BK and WH) are available. Select your preferred color from the variant selector on this product page.

Where can I order the RS1001I-II-T?

Creation Networks is an authorized SoundTube dealer offering this speaker with professional support and project consultation.
