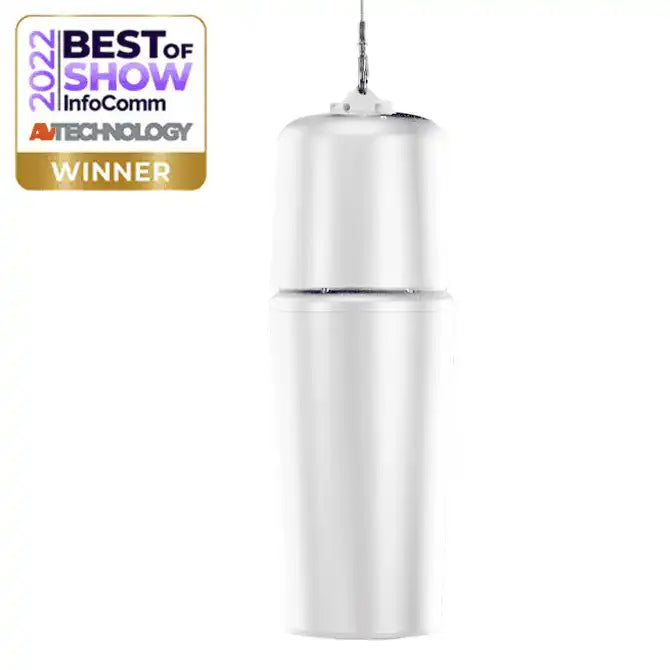

Soundtube MM43-BGM Mighty Mite 4-inch, 3-way Pendant w Built-In Sub

SoundTube MM43-BGM Mighty Mite 4" 3-Way Pendant with Built-In Subwoofer

The SoundTube MM43-BGM Mighty Mite is a full-range 3-way pendant speaker that achieves what most pendant speakers cannot: true subwoofer-reinforced bass from a single pendant enclosure. A 5.25-inch dual-chamber band-pass subwoofer, 4-inch polypropylene woofer, and 0.75-inch BroadBeam ring tweeter work in phase-aligned concert to produce even, full-range sound from one hanging point — eliminating the need for separate subwoofer enclosures in foreground music and paging applications where bass presence matters. The Mighty Mite's wide coverage and built-in sub enable it to replace multiple conventional pendant speakers with fewer units, reducing hardware cost and installation time.

The MM43-BGM measures 22 inches tall with a 7.4-inch diameter, weighs 14 lbs, and reaches a maximum SPL of 103 dB at 1m with a frequency response extending to 37 Hz (±10 dB) — genuine bass reproduction rarely seen in pendant-format speakers. An integrated 30-watt transformer supports standard 25V/70V/100V distributed audio systems with a rotary tap switch, or it can operate as a direct 8-ohm speaker for amplifier-direct applications. The integrated SpeedClamp self-locking wire grip and galvanized steel hanging hardware simplify single-technician installation, and the magnetic grille detaches tool-free for in-field service.

Creation Networks stocks the full SoundTube Mighty Mite line and can assist with coverage design and amplifier selection for restaurant, retail, and entertainment venue applications — contact us for a project consultation.

Key Features

• Built-In 5.25" Band-Pass Subwoofer — Dual-chamber band-pass design produces phase-aligned bass extension to 37 Hz, eliminating the need for separate subwoofer enclosures.
• 3-Way Driver Configuration — Dedicated subwoofer, 4-inch mid woofer, and 0.75-inch BroadBeam tweeter produce smooth, phase-matched audio across the full frequency range.
• BroadBeam Ring Tweeter — Wide high-frequency dispersion maintains tonal consistency across large coverage areas below the pendant position.
• 103 dB Max SPL @ 1m — High output capability for foreground music and intelligible paging in moderate to high ambient-noise environments.
• 37 Hz – 27 kHz Response (±10 dB) — Full-range audio reproduction from sub-bass through extended high frequency from a single pendant enclosure.
• Integrated 30W Transformer — Built-in transformer covers 25V, 70.7V, and 100V distributed systems with rotary tap selection; 8-ohm direct bypass included.
• SpeedClamp Hanging Hardware — Self-locking wire grip with galvanized steel cables enables fast, secure one-technician installation.
• Tool-Free Magnetic Grille — Powder-coated magnetic grille detaches without tools for field service and grille replacement.

Typical Applications

• Restaurants and bars requiring full-range foreground music from ceiling pendants
• Retail stores with open ceiling designs needing bass-reinforced background audio
• Hotel lobbies and atrium spaces where subwoofer enclosures are impractical
• Nightclubs and entertainment venues with pendant speaker aesthetics
• Paging and background music in large open-ceiling commercial spaces
• Houses of worship with modern architectural ceiling treatments

Technical Specifications

Frequently Asked Questions

How does the band-pass subwoofer in the MM43-BGM work?

The dual-chamber band-pass subwoofer enclosure surrounds the 5.25-inch driver in a sealed rear chamber and a ported front chamber, tuned to produce high output within a defined low-frequency band. This produces deep, efficient bass from a compact enclosure without the size penalty of a conventional ported subwoofer design.

Does the MM43-BGM require a separate subwoofer amplifier channel?

No. All three drivers — subwoofer, woofer, and tweeter — are powered from the same single amplifier channel or transformer tap. The internal crossover network handles signal routing to each driver.

What amplifier tap settings are available?

The integrated transformer supports 70.7V and 100V line operation with a rotary tap selector, at a maximum setting of 30W. The 8-ohm direct bypass position connects the speaker to an amplifier direct output.

What is the available color options?

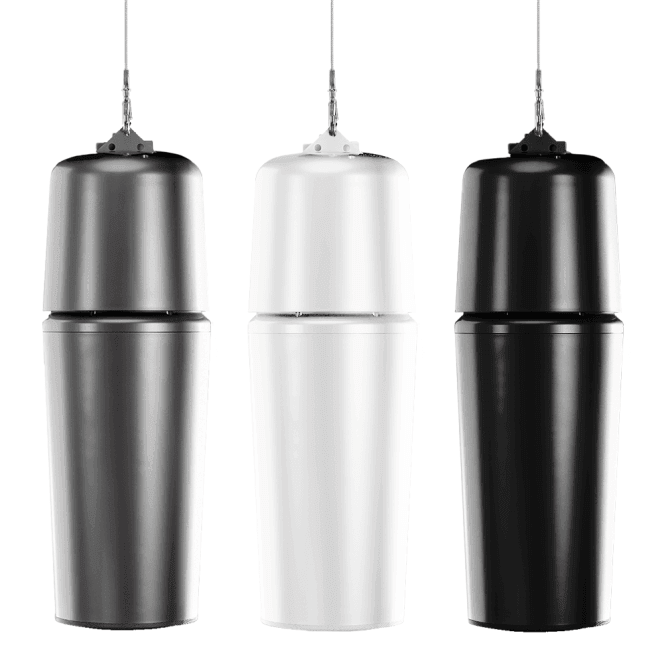

The MM43-BGM is available in black (BK) and white (WH) finishes at $583, and a silver (SL) finish at $470. Contact Creation Networks for current availability.

Is the MM43-BGM suitable for outdoor covered areas?

The standard MM43-BGM is designed for indoor open-ceiling applications. For outdoor or high-moisture environments, contact Creation Networks to discuss appropriate weatherized pendant speaker alternatives.

How does the Mighty Mite reduce speaker count compared to conventional pendants?

The built-in subwoofer and wide-coverage BroadBeam tweeter allow each MM43-BGM to cover a larger zone with fuller bass response than a standard pendant, enabling integrators to achieve satisfying results with fewer hanging points and less amplifier power.
