Soundtube MM32-EZ Mighty Mite 3-inch, 2-way Pendant w Built-In Sub

SoundTube MM32-EZ Mighty Mite 3" 2-Way Pendant with Built-In Sub

The SoundTube MM32-EZ Mighty Mite is one of the most acoustically complete pendant speakers available for open-ceiling commercial audio installations. Combining a 3" polypropylene wide-range driver with a 5.25" dual-chamber band-pass subwoofer in a single 22" pendant enclosure, the Mighty Mite delivers full-range audio — 36 Hz to 21 kHz (±10 dB) — from a single point of origin, eliminating the need for separate subwoofer cabinets in most background music applications. Its phase-aligned bass architecture produces even, smooth response across the full frequency range with a single hang point.

The integrated 30-watt transformer supports standard 25V, 70.7V, and 100V distributed audio systems, or the MM32-EZ can be wired direct at 8 ohms for short-run applications. A six-position rotary tap switch is accessible from the terminal area for simple field configuration. High-frequency dispersion technology ensures wide off-axis coverage, so fewer speakers are needed to fill a given space — directly reducing hardware and labor costs on large-scale projects.

Installation is straightforward: an integrated hanging bracket at the top of the speaker combines with UL-listed hanging hardware featuring a SpeedClamp™ self-locking wire grip for fast, secure, and code-compliant ceiling installation. The magnetic powder-coated grille resists fingerprints and allows easy driver access. Available in black, white, and silver to coordinate with any interior design scheme.

Key Features

• Built-In 5.25" Band-Pass Subwoofer — Phase-aligned bass from a single pendant eliminates the need for separate subs in most commercial BGM installs.
• 3" Polypropylene Wide-Range Driver — Butyl rubber surround and high-frequency dispersion technology deliver smooth, even coverage over large open areas.
• 36 Hz – 21 kHz Frequency Response — Full-range performance from a compact 7.4" diameter pendant that blends into any ceiling aesthetic.
• Integrated 30W Transformer — 25V / 70.7V / 100V distributed audio ready; also operates as 8-ohm direct for flexible system design.
• SpeedClamp™ Self-Locking Wire Grip — UL-listed hanging hardware enables fast, secure, code-compliant installation without extra tools.
• Wide Dispersion Technology — Broader coverage means fewer units per project, lowering total installed cost in large open-ceiling spaces.

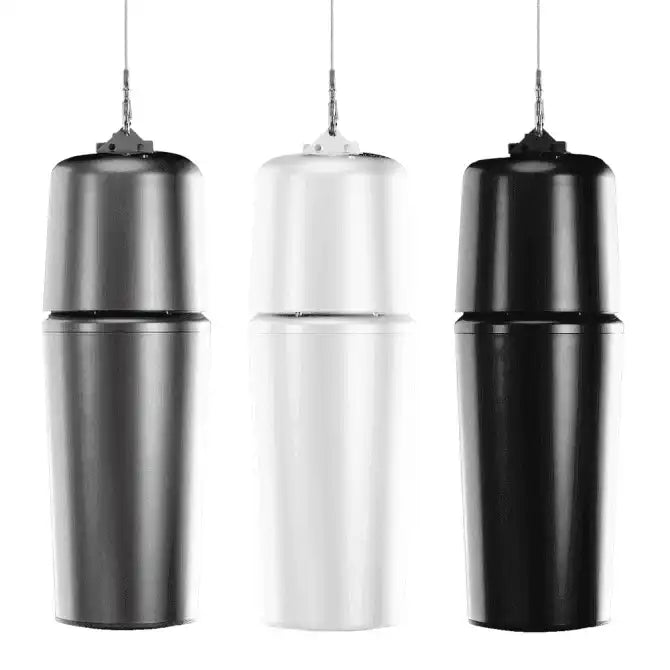

• Magnetic Powder-Coated Grille — Clean, flush-fitting finish in black, white, or silver; easy removal for service or driver inspection.
• 98 dB Max SPL — Sufficient output for foreground music in mid-size venues without supplemental amplification.

Typical Applications

• Open-ceiling restaurants and brewery taprooms requiring full-range sound without visible subs
• Retail stores with exposed ductwork ceilings and background music needs
• Hotel lobby and atrium audio where aesthetics and audio quality both matter
• Corporate office common areas, atriums, and break rooms
• Airport gate areas and transit concourses with overhead open structure
• Fitness centers and yoga studios where a single pendant can cover a full workout zone

Technical Specifications

Frequently Asked Questions

Q: Does the MM32-EZ need a separate subwoofer?
A: No. The Mighty Mite's built-in 5.25" dual-chamber band-pass subwoofer produces bass extension to 36 Hz (±10 dB), making it self-sufficient for background music in most commercial spaces.

Q: How many MM32-EZ speakers does it take to cover a typical restaurant?
A: The wide-dispersion driver extends coverage beyond conventional pendant speakers, so fewer units are needed. A system designer can calculate exact coverage using SoundTube's Spec 4.0 tool or by consulting Creation Networks.

Q: Can the MM32-EZ be used on a 100V distributed audio system?
A: Yes. The built-in transformer supports 25V, 70.7V, and 100V with a maximum tap of 30W, selectable via the rotary tap switch.

Q: What ceiling height is the MM32-EZ designed for?
A: The Mighty Mite performs well in ceiling heights from 10 to 20 feet in most background music applications. Above 20 feet, consider the SoundTube HPi series for high-ceiling pendant performance.

Q: Is the cable and hardware included for installation?
A: Hanging hardware including UL-listed cables with integrated SpeedClamp™ self-locking wire grip is included. Field cable runs and conduit are not included.

Q: Can I order project quantities with dealer pricing?
A: Yes. Contact Creation Networks for project quotes, volume pricing, and authorized SoundTube distribution support.
