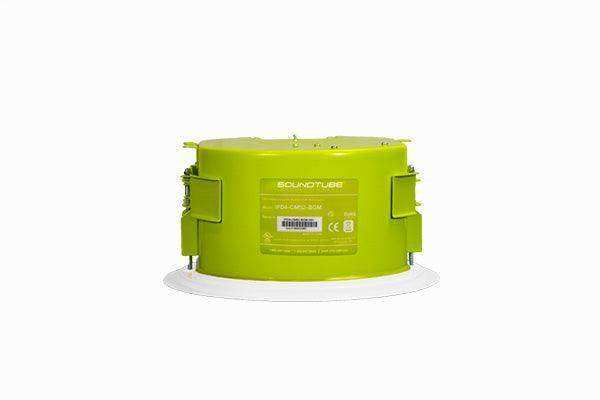

SoundTube IPD4-CM52-BGM IP-Addressable Speaker in White - IPD4-CM52-BGM-WH

SoundtubeSKU: IPD4-CM52-BGM-WH
No reviews

Price:
Sale price$541.50

Description

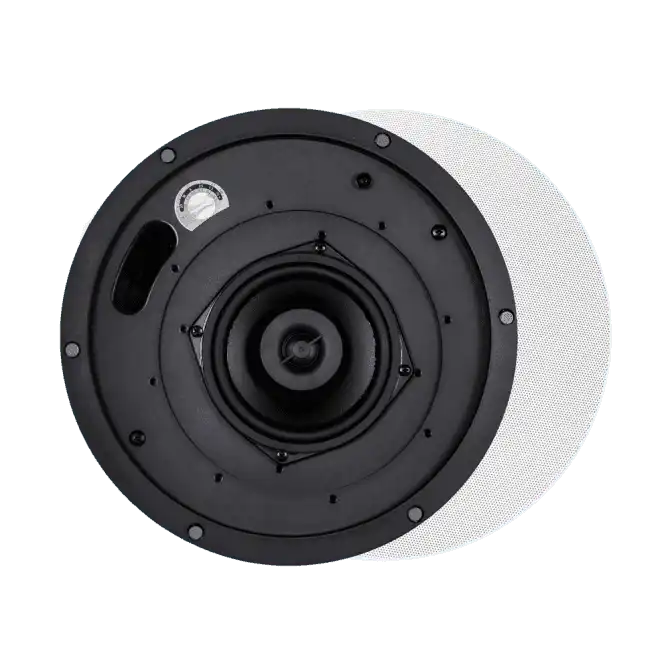

Offering an economical option for expansion of audio coverage in a digital speaker system, this Dante®-enabled coaxial in-ceiling speaker has output terminals for connection and power of up to three additional standard CM52-BGM speakers. The speaker incorporates one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. When combined with standard speakers, the four-speaker cluster can be split and configured to handle two separate channels of audio. Mounting hardware is included and features SoundTube®'s SpeedWing constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4mm). Color-coded (orange) tile bridge, UL listed conduit clamp and paint shield are included.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Data Sheet

Color White
UPC 748252172877
Manufacturer SoundTube
Manufacturer's Category STNet IP-Addressable and Dante Series
Shipping Weight 9.2 lbs / 4.17 kg
Carton Height 8 in / 203.2 mm
Carton Length 13.25 in / 336.55 mm
Carton Width 13.25 in / 336.55 mm
Certifications CE, UL2043, UL60065, ETL-C/US
Enclosure Properties ABS, Steel

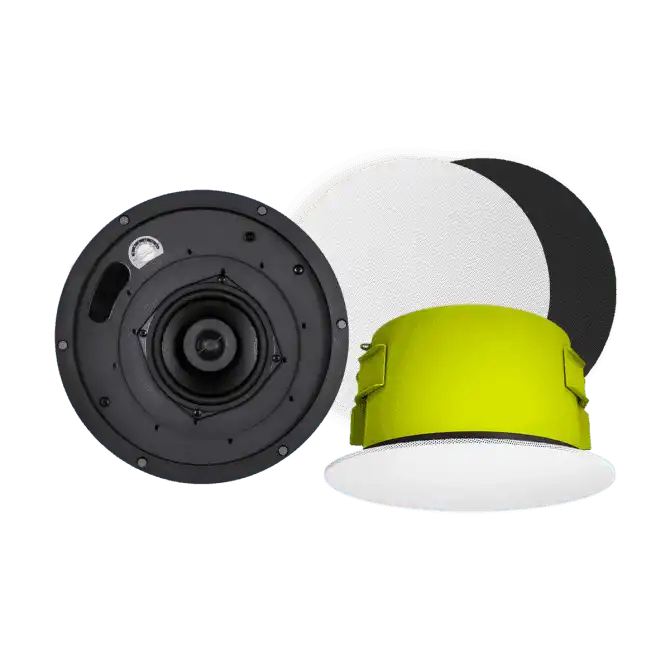

Included Accessories 6-Pin Euroblock, Conduit Clamp, Grille, Paint Mask, Tile Bridge
Optional Accessories White Grille (GRL-CM6/8EZ-II-WH)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)
Source Inputs 6 Pin 5.08mm Euroblock, RJ45 Ethernet Port
Backcan Diameter 9.67 in / 245.6 mm
Backcan Height 5.75 in / 146.1 mm
Crossover Frequency 5.0 kHz
Cutout Width/Diameter 10.5 in / 266.7 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 3.8 and 2.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.1 dB and 3.3 dB
Frequency Response (± 10 dB) 56 Hz - 22 kHz
Frequency Response (± 3 dB) 67 Hz - 20 kHz
Grille Properties Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel
Low Frequency Voice Coil 1 in / 25.4 mm
Low Pass Crossover 12 dB per octave 2nd order
Max. Ceiling Thickness 2.5 in / 63.5 mm
Max SPL @ 1M 93 dB
Minimum Ceiling Thickness 0.04 in / 0.9 mm
Network Type: High Pass 12 dB per octave 2nd order
Tweeter Driver .75" Silk Dome w/ BroadBeam Ring®
Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround
Power for Max SPL 40 W
Visible Diameter 298.5 mm
Visible Height 8.6 mm
