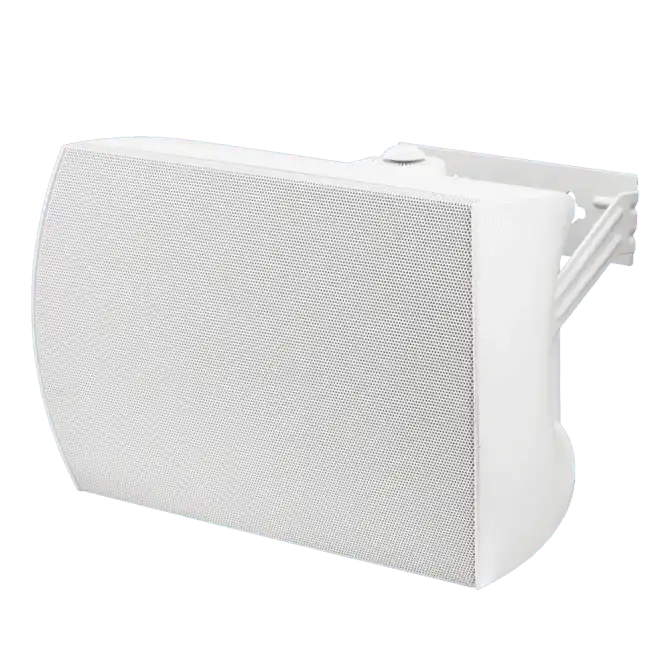

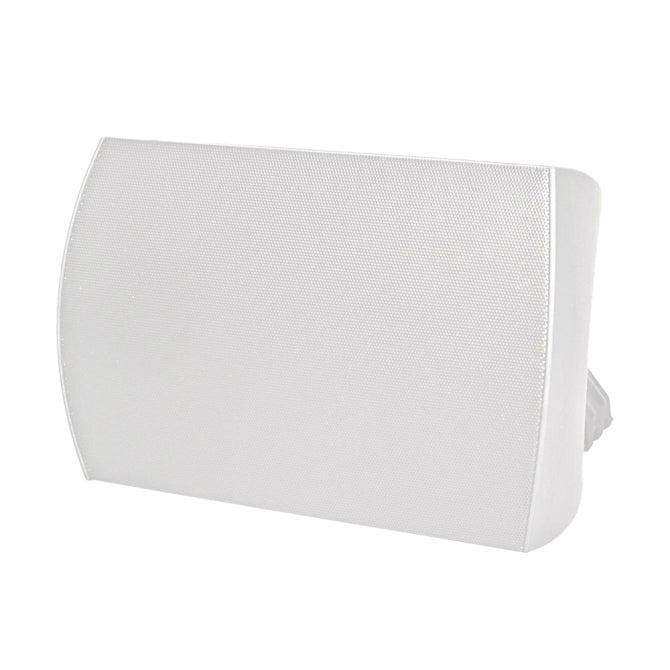

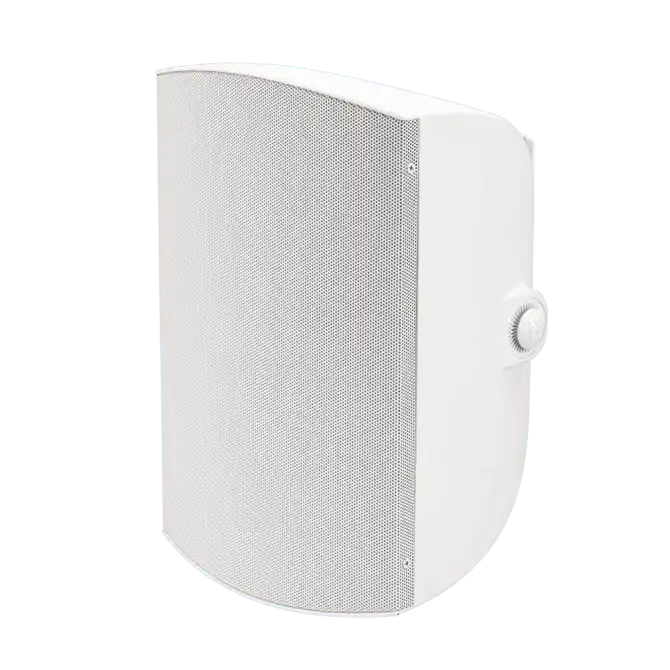

SoundTube IPD-SM82-EZ-II-WX IP-Addressable Speaker in White

SoundTube IPD-SM82-EZ-II-WX IP-Addressable Speaker in White — Overview

The SoundTube IPD-SM82-EZ-II-WX in White is a Dante-enabled, IP-addressable surface-mount speaker delivering professional-grade outdoor audio performance through a clean, white powder-coated finish suited to commercial and hospitality environments where appearance matters as much as durability. With a fully integrated 40W PoE amplifier, a single Ethernet cable carries audio, power, and control to each speaker, eliminating traditional amplifier rooms and complex cable runs. The IP65-rated enclosure withstands rain, dust, and humidity for reliable continuous operation in covered or exposed outdoor locations. Centrally managed via SoundTube's STNet Control Center software, this speaker scales from single-zone installations to campus-wide distributed audio systems with equal ease.

Product Description

The IPD-SM82-EZ-II-WX shares the same high-performance driver package regardless of color: an 8" polypropylene woofer with butyl rubber surround and a 1" soft dome tweeter crossing over at 2.5 kHz with 12 dB-per-octave 2nd-order networks. In ported mode (port plug removed), the speaker achieves 38 Hz (±10 dB) to 20 kHz frequency response with 101 dB maximum SPL, making it ideal for outdoor music playback and high-SPL paging. In sealed mode (port plug installed), response tightens to 70 Hz (±3 dB), improving speech intelligibility in critical listening environments while maintaining the IP65 moisture rating required for outdoor use.

The white high-impact polystyrene enclosure and powder-coated aluminum grille resist UV discoloration and corrosion, maintaining their clean appearance through extended outdoor exposure. Coverage measures 70° horizontal by 90° vertical at ±6 dB and 2 kHz, providing focused but generous dispersion for seating areas, walkways, and covered patios. The pre-mountable wall bracket allows installers to secure the mount before speaker delivery, reducing on-site labor time on large multi-speaker projects. Included accessories cover safety cable, weatherproof strain relief, and port plugs to ensure code-compliant, professional installation.

Note: SoundTube IPD speakers require a PoE or PoE+ switch (802.3af/at) — maximum 30W standard PoE, or 40W with the STNet Switch II. PoE++ (802.3bt) is not compatible. All volume, EQ, and zone configuration is handled through STNet Control Center software on a connected PC, enabling remote adjustments without physical access to each speaker location.

Key Features

• White Powder-Coated Finish: UV-resistant, corrosion-proof aluminum grille blends with white walls, trim, and architectural exteriors
• Dante/STNet IP-Addressable: Single Cat5e/6 cable delivers audio, power, and control; compatible with 30W PoE or 40W via STNet Switch II
• IP65 Rated: Fully dust-tight and water-jet resistant for continuous outdoor deployment
• 8" Polypropylene Woofer: Butyl rubber surround handles wide temperature cycling and extended outdoor humidity without performance degradation
• Integrated 40W PoE Amplifier: Eliminates separate amp racks; every speaker is self-powered via the network switch
• Ported/Sealed Flexibility: Remove port plug for deeper bass (38 Hz at ±10 dB) indoors; install plug for IP65 protection and tighter response outdoors
• Pre-Mountable Bracket: Wall bracket installs before the speaker for staged deployment, reducing installation time on multi-speaker projects
• 101 dB Max SPL: High-output capability for outdoor music, paging, and announcements in high-ambient-noise environments
• STNet Control Center Software: Browser-based remote management of volume, EQ, grouping, and real-time status across all endpoints
• CE, IP65, RoHS, UL60065 Certified: International and domestic safety certifications for commercial installations worldwide

Typical Applications

The white IPD-SM82-EZ-II-WX is specified on projects where clean visual integration with light-colored surfaces is required alongside outdoor durability and networked audio control:

• Hotel and resort outdoor areas — Pool decks, spa gardens, and covered terraces where white speakers blend with architectural finishes
• Restaurant patios and outdoor dining — Background music delivery with centralized zone control from the back-of-house network
• Retail center outdoor common areas — Shopping center walkways, food court exteriors, and storefront overhangs
• Healthcare campuses — Exterior covered walkways, courtyards, and healing gardens requiring discreet, weather-resistant audio
• Educational institutions — Outdoor amphitheaters, covered breezeways, and athletic facility exteriors on Dante networks
• Corporate campuses — Outdoor common areas, entry plazas, and covered parking structures
• Houses of worship — Exterior gathering plazas, amphitheaters, and courtyard overflow zones
• Sports and recreation — Aquatic center exteriors, tennis complex pavilions, and golf clubhouse terraces

Contact Creation Networks for Dante system design, volume pricing, and STNet deployment support.

Technical Specifications

Frequently Asked Questions

Is the white IPD-SM82-EZ-II-WX identical in performance to the black version?

Yes. The IPD-SM82-EZ-II-WX-WH and IPD-SM82-EZ-II-WX-BK share the same driver complement, amplifier, network electronics, and IP65 rating. The only difference is the color of the grille and enclosure.

Does the IP65 rating apply both indoors and outdoors?

The IP65 rating is maintained when the port plug is installed. In outdoor applications, always install the port plug to preserve moisture protection. For indoor installations where IP65 is not required, you may remove the port plug and grille for improved bass output.

What mounting hardware is included?

The speaker ships with a complete mounting assembly and hardware for wall installation. The bracket can be pre-mounted before the speaker body arrives on site, which speeds up staged installations on larger projects.

Can multiple IPD-SM82-EZ-II-WX speakers share a single PoE switch port?

No. Each speaker requires its own dedicated RJ45 Ethernet port with PoE/PoE+ power. One cable per speaker, connecting back to a PoE switch or STNet Switch II.

What software is needed to configure and manage these speakers?

STNet Control Center (provided by SoundTube) runs on a standard Windows PC and manages all IP-addressable endpoints on the STNet network. Audinate's free Dante Controller software handles audio routing between Dante devices on the network.

Are there any restrictions on outdoor installation height or orientation?

The speaker can be wall-mounted at any height with the included bracket. For optimal coverage, aim the speaker downward at the listening area and ensure the port is plugged for outdoor use. No height restriction is specified, but ensure the Ethernet cable run does not exceed 328 ft (100 m) without a PoE extender or switch.

How do I order the white IPD-SM82-EZ-II-WX from Creation Networks?

Add the white variant to your cart directly on this page, or contact Creation Networks for volume pricing, Dante system design, and installation planning assistance.
