SoundTube IPD-SM82-EZ-II-WX IP-Addressable Speaker in Black

SoundTube IPD-SM82-EZ-II-WX IP-Addressable Speaker in Black — Overview

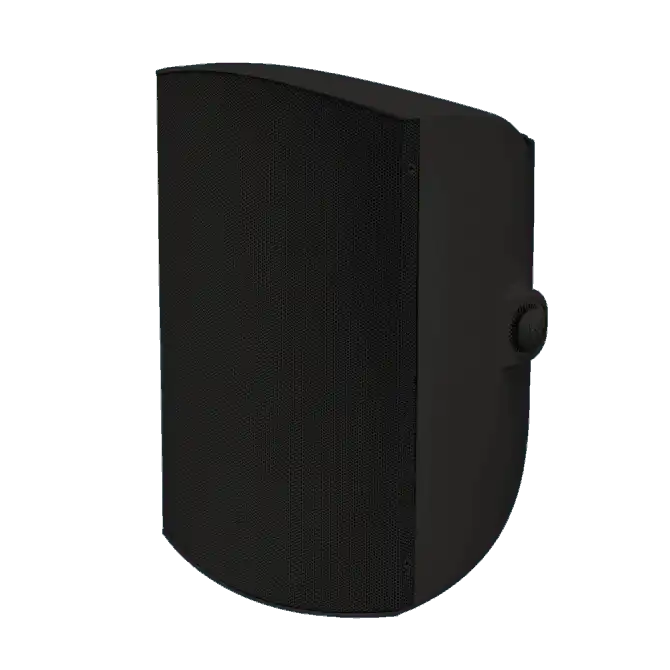

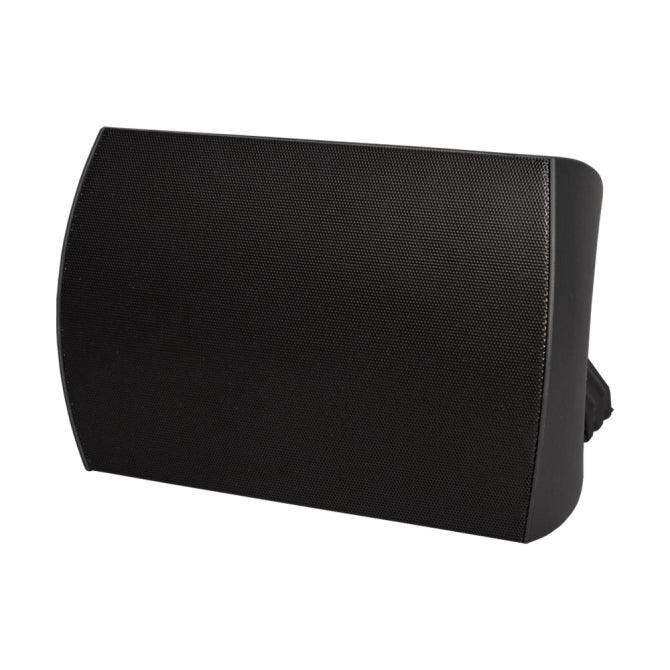

The SoundTube IPD-SM82-EZ-II-WX is a Dante-enabled, IP-addressable surface-mount speaker engineered for demanding indoor and outdoor environments where weather resistance and networked audio control are equally critical. Combining a 40W integrated PoE amplifier with an IP65-rated enclosure, this speaker delivers full-range audio over a single Ethernet cable while standing up to rain, dust, and moisture without compromise. The matte black powder-coated aluminum grille and high-impact polystyrene enclosure give it a professional appearance suitable for covered outdoor venues, building exteriors, transportation terminals, and commercial entertainment spaces. As part of SoundTube's STNet IP-Addressable and Dante series, it integrates seamlessly with other STNet endpoints for centralized zone management and real-time monitoring.

Product Description

At the core of the IPD-SM82-EZ-II-WX is an 8" polypropylene woofer with butyl rubber surround paired with a 1" soft dome tweeter in a ported enclosure. The crossover operates at 2.5 kHz with 12 dB-per-octave 2nd-order slopes on both networks, producing a smooth handoff between drivers. Frequency response extends from 38 Hz to 20 kHz (±10 dB) or 50 Hz to 20 kHz (±3 dB) in ported mode; sealing the port with the included plug shifts the -3 dB point to 70 Hz for tighter bass in critical-listening applications. Maximum SPL reaches 101 dB at 1 meter, making this speaker capable of cutting through ambient noise in high-traffic outdoor settings.

Power arrives via the built-in 40W PoE amplifier — a 30W standard PoE switch suffices, or 40W maximum power is achievable with a SoundTube STNet Switch II. Important: SoundTube IPD speakers are not compatible with PoE++ (802.3bt Type 3/4). All speaker configuration, grouping, and volume control is handled through STNet Control Center software, allowing remote management without physical access to each unit. The pre-mountable surface-mount wall bracket ships in the box and can be installed on the wall before the speaker body arrives, streamlining on-site deployment. The coverage pattern measures 70° horizontal by 90° vertical at ±6 dB and 2 kHz.

For outdoor use, the included port plugs must be installed in the port to maintain the IP65 rating and protect internal components from moisture ingress. Indoors, removing the grille and port plug maximizes bass output. Certified CE, IP65, RoHS, and UL60065, the IPD-SM82-EZ-II-WX meets the requirements for a wide range of commercial and outdoor deployments. The black colorway (SKU: IPD-SM82-EZ-II-WX-BK) is complemented by the white variant for mixed-finish installations.

Key Features

• Dante/STNet IP-Addressable: Full networked audio, power, and control over a single Cat5e/6 cable; 30W PoE or 40W via STNet Switch II (not PoE++ compatible)
• IP65 Rated: Dust-tight and water-jet resistant enclosure for reliable outdoor and indoor-wet-location deployments
• 8" Polypropylene Woofer: Butyl rubber surround handles outdoor temperature cycling and humidity extremes without degradation
• Integrated 40W PoE Amplifier: Self-contained amplification eliminates the need for separate amp racks; one cable does everything
• Ported Enclosure with Removable Plug: Ported for maximum bass outdoors (plug in for IP65); sealed mode available indoors for tighter low-end

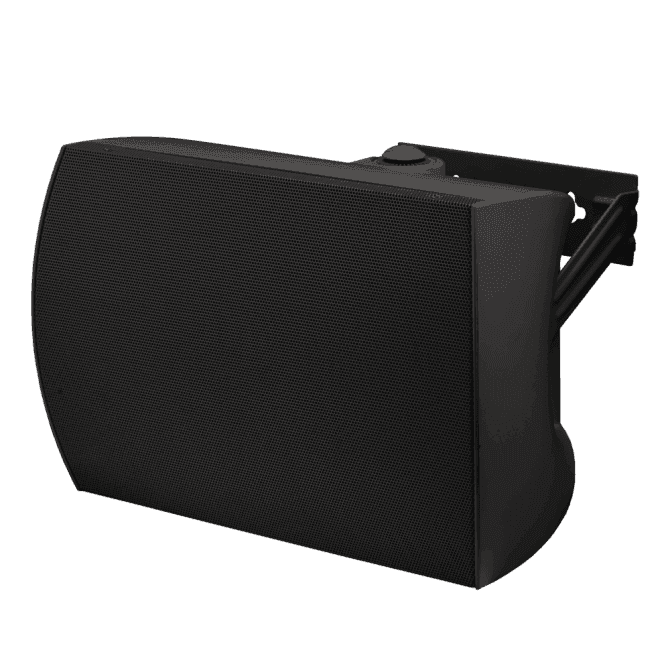

• Pre-Mountable Surface-Mount Bracket: Wall bracket installs before the speaker body for faster staged deployment on large projects
• 101 dB Max SPL: Cuts through ambient noise in outdoor plazas, covered patios, sports facilities, and transit hubs
• Powder-Coated Aluminum Grille: Corrosion-resistant finish maintains professional appearance in exterior and coastal environments
• STNet Control Center Integration: Browser-based centralized management for volume, EQ, grouping, and real-time status monitoring
• CE, IP65, RoHS, UL60065 Certified: Meets international and domestic safety and environmental standards for commercial deployment

Typical Applications

The IPD-SM82-EZ-II-WX is the go-to surface-mount speaker for projects that combine outdoor or semi-outdoor conditions with professional networked audio management:

• Covered outdoor entertainment venues — Amphitheaters, rooftop bars, covered patios, and pool decks requiring IP65 protection
• Commercial building exteriors — Wall-mounted audio for entryways, loading docks, parking structures, and drive-throughs
• Hospitality (hotels, resorts) — Poolside and courtyard audio integrated into the property's Dante network
• Sports and recreation facilities — Scoreboards, concession stands, locker room corridors, and outdoor courts
• Transportation hubs — Bus terminals, rail platforms, and airport exterior boarding areas requiring durable, weather-resistant paging
• Educational campuses — Exterior walkways, quads, and covered breezeways with centralized audio management
• Houses of worship — Exterior gathering areas, courtyards, and overflow zones connected to the main Dante network
• Industrial and manufacturing — Warehouse exterior zones and covered outdoor assembly areas needing rugged, high-SPL audio

Contact Creation Networks for project design assistance, volume pricing, and STNet system configuration support.

Technical Specifications

Frequently Asked Questions

Is the IPD-SM82-EZ-II-WX truly rated for outdoor use?

Yes. The IP65 rating means the enclosure is fully dust-tight and protected against water jets from any direction. For outdoor installations, the port plug must be installed in the port to maintain this rating. Leaving the port open degrades moisture protection.

What is the maximum power this speaker draws from a PoE switch?

The speaker draws up to 30W from a standard 802.3at (PoE+) switch. If you use the SoundTube STNet Switch II, it can deliver the full 40W amplifier output. SoundTube IPD speakers are not compatible with PoE++ (802.3bt), so avoid PoE++ switches.

Can I use the black and white versions of the IPD-SM82-EZ-II-WX together on the same Dante network?

Yes. Both the black (IPD-SM82-EZ-II-WX-BK) and white (IPD-SM82-EZ-II-WX-WH) variants are electrically identical and operate on the same STNet/Dante network. They can be mixed freely within the same zone or building.

Does this speaker require a separate amplifier?

No. The IPD-SM82-EZ-II-WX has a 40W integrated Class D amplifier built in. Power is delivered via the PoE connection — no separate amp rack or speaker cable runs are needed.

Can I use the IPD-SM82-EZ-II-WX with non-Dante audio sources?

The IPD-SM82-EZ-II-WX requires a Dante/STNet network for audio delivery. To use non-Dante sources (e.g., analog mixers, streaming devices), an Audinate-compatible Dante I/O interface is needed to bridge the analog or AES signal onto the Dante network before routing to the speakers.

What is the difference between ported and sealed operation?

With the port plug removed (ported), the speaker delivers deeper bass extension (38 Hz at ±10 dB) and higher overall SPL — ideal for outdoor music playback. With the port plug installed (sealed), low-frequency response tightens to 70 Hz (±3 dB) with less bass, which can improve speech intelligibility in paging-focused applications and is required to maintain IP65 certification outdoors.

Where can I purchase the IPD-SM82-EZ-II-WX in Black?

Creation Networks stocks both the black and white variants. Visit creationnetworks.net or reach out to our team for pricing, availability, and Dante network design support.
