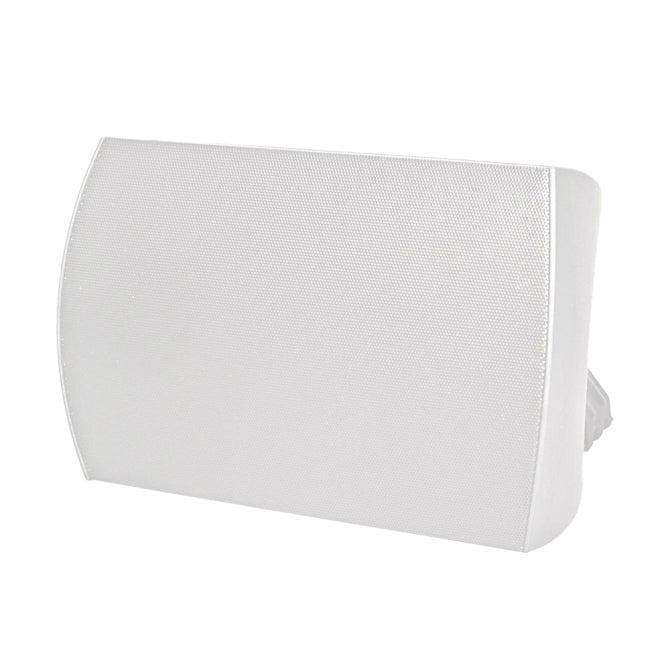

SoundTube IPD-SM52-EZ-WX IP-Addressable Speaker in White

SoundTube IPD-SM52-EZ-WX IP-Addressable Dante Speaker — White

Overview

The SoundTube IPD-SM52-EZ-WX is a Dante®-enabled, weather-resistant surface-mount speaker that delivers full-range audio with a built-in 40 W Power-over-Ethernet amplifier — eliminating the need for a separate amplifier rack. Housed in a rugged high-impact polystyrene enclosure and rated IP65 for dust and water resistance, this white-finish speaker is engineered for commercial AV applications both indoors and out. A single standard Cat cable carries digital audio, power, and control directly to each unit, making large-scale distributed audio deployments significantly faster and less costly to commission.

Description

At the heart of the IPD-SM52-EZ-WX is a 5.25-inch polypropylene-cone woofer paired with a 1.0-inch soft-dome tweeter in a ported enclosure, delivering a frequency range of 55 Hz–20 kHz (±10 dB) with a maximum output of 97 dB SPL at 1 meter. The 3.5 kHz crossover point ensures clean handoff between drivers with broad horizontal and vertical dispersion — 91° horizontal and 120° vertical — for consistent coverage across wide spaces. The built-in amplifier supports PoE (up to 30 W on standard PoE) or up to 40 W when paired with SoundTube's STNet Switch II; note that PoE++ is not compatible with this speaker.

Deployment is accelerated by the pre-mountable surface-mount bracket, which enables installers to pre-wire and stage the speaker mounting before the main unit arrives on site. The IP65 rating means this speaker handles outdoor installations confidently — covered patios, pool decks, stadiums — as long as the included port plug is installed when used outdoors to maintain the moisture seal. For indoor installations, removing the port plug enhances low-frequency extension.

The white powder-coated aluminum grille blends cleanly into light-colored architectural finishes, dropping into background aesthetics without drawing attention. Certifications include UL 60065, CE, RoHS, and IP65, meeting requirements for most commercial AV project specifications. Included accessories are a safety cable, wall mount bracket, conduit connector, and port plug. Visit creationnetworks.net for pricing, availability, and project support.

Key Features

• Dante®-enabled IP-addressable digital endpoint — one Cat cable carries audio, power, and control
• Built-in 40 W PoE amplifier (30 W standard PoE / 40 W with STNet Switch II)
• IP65-rated enclosure — suitable for indoor and covered outdoor environments
• 5.25" polypropylene woofer + 1.0" soft-dome tweeter in ported enclosure
• Frequency response: 55 Hz–20 kHz (±10 dB); Max SPL: 97 dB @ 1 m
• Wide dispersion: 91° horizontal / 120° vertical (±6 dB @ 2 kHz)
• Pre-mountable surface-mount bracket for accelerated installation
• White powder-coated aluminum grille — CE, RoHS, UL 60065 certified
• Includes safety cable, wall bracket, conduit connector, and port plug
• Compatible with STNet-Switch and third-party PoE/PoE+ switches

Typical Applications

• Commercial restaurant dining rooms and bar areas requiring weather-tolerant audio
• Hotel courtyards, covered pool decks, and outdoor hospitality spaces
• Retail storefronts and outdoor shopping areas
• Stadium concourse and covered walkway PA reinforcement
• Houses of worship with indoor-outdoor worship gardens
• Corporate campus covered walkways and building entrances

Technical Specifications

Frequently Asked Questions

Does this speaker require a separate amplifier?

No. The IPD-SM52-EZ-WX has a built-in 40 W amplifier powered via PoE, so no external amp is needed. Power comes directly from your network switch.

Can this speaker be used outdoors?

Yes — it is rated IP65 for dust and water resistance. The port plug must be installed when used outdoors to maintain the IP65 rating. Failure to install the port plug in outdoor applications may allow moisture ingress.

What PoE standard does it require?

The speaker draws up to 30 W on a standard IEEE 802.3at (PoE+) switch. When connected to SoundTube's STNet Switch II, it can draw up to 40 W. PoE++ (IEEE 802.3bt) is not compatible.

How is the speaker configured and zoned?

Configuration, volume, and zoning are handled through SoundTube's STNet software over the network — no physical dip switches or local controls are needed. Each speaker gets its own IP address for granular control.

Can it work with third-party Dante networks?

Yes. The IPD-SM52-EZ-WX is a standard Dante®-enabled endpoint and is compatible with any Dante-enabled mixing console, DSP, or media player, as well as Dante Controller software for routing.

What happens if I remove the port plug indoors?

Removing the port plug indoors allows the ported enclosure to breathe, extending bass response. This is recommended for indoor installations. The plug must be reinstalled for any outdoor deployment to maintain IP65 protection.
