SoundTube IPD-SM500I-II IP-Addressable Speaker in White

SoundTube IPD-SM500I-II IP-Addressable Dante Speaker — White

Overview

The SoundTube IPD-SM500I-II is a Dante®-enabled surface-mount speaker featuring BroadBeam® waveguide technology for wide, consistent sound dispersion across commercial listening environments. Powered via PoE or an optional 24 V DC barrel connector, this white-finish unit eliminates amplifier racks and delivers audio, power, and control over a single Category cable to each endpoint. It is designed for demanding commercial AV applications where precise directional aiming, architectural discretion, and software-defined zone management are all required.

Description

The IPD-SM500I-II houses a 5.25-inch polypropylene-cone woofer (134 mm) and a 1.0-inch convex titanium tweeter with SoundTube's proprietary BroadBeam® waveguide, providing a 75° horizontal and 90° vertical dispersion pattern with a 3.0 kHz crossover. Frequency response spans 60 Hz–22 kHz (±10 dB) with a maximum output of 98 dB SPL at one meter, making it well suited for medium-to-large rooms with reflective surfaces. The glass fiber-reinforced ABS enclosure is both light and rigid — immune to the warping or cracking that affects lesser materials in temperature-variable installations.

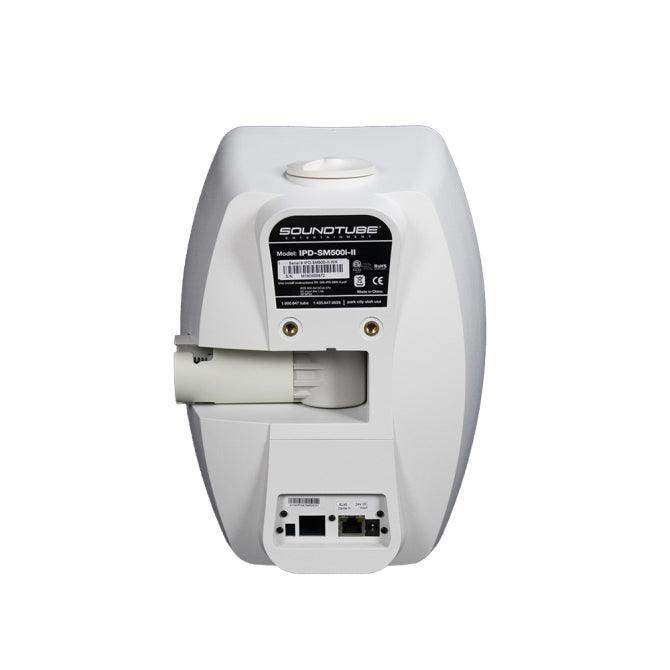

SoundTube's Stealth® bracket mounting system provides unlimited directional aiming in all axes, a low-profile silhouette against the wall surface, and a security knob to prevent tampering after commissioning. The detachable mounting plate is designed for pre-mounting in wall or pole applications, letting installers complete structural work ahead of speaker delivery. Power is delivered via PoE/PoE+ from any 802.3at switch; the speaker may also be powered via a 24 V DC barrel connector for installations where PoE is unavailable. PoE++ is not compatible.

Configuration, volume, and zone assignments are all managed via software over the network. The white powder-coated aluminum grille integrates naturally into light-colored walls and ceilings. Certifications include UL 2043, UL 60065, CE, and RoHS. For pricing and project design assistance, visit creationnetworks.net.

Key Features

• Dante®-enabled IP-addressable endpoint — audio, power, and control over a single Cat cable
• 1.0" Convex Titanium Tweeter with BroadBeam® Waveguide for even off-axis coverage
• 5.25" polypropylene woofer + 1.0" titanium tweeter; 3.0 kHz crossover
• Frequency response: 60 Hz–22 kHz (±10 dB); Max SPL: 98 dB @ 1 m
• Wide dispersion: 75° horizontal / 90° vertical (±6 dB @ 2 kHz)
• Stealth® bracket with unlimited directional aiming and tamper-resistant security knob
• Dual power options: PoE/PoE+ or 24 V DC barrel connector
• Glass fiber-reinforced ABS enclosure — lightweight, rigid, temperature-stable
• White powder-coated aluminum grille — UL 2043, UL 60065, CE, RoHS certified
• Optional accessories: Black grille, weatherboot, extended safety cable, wall bracket

Typical Applications

• Hotel lobbies, conference centers, and multi-zone hospitality properties
• Corporate boardrooms and open-plan office audio systems
• Retail stores requiring directionally aimed, zone-controlled background music
• Houses of worship needing flexible aiming for non-standard wall positions
• University lecture halls and campus common areas
• Museum and gallery spaces with directional exhibit audio requirements

Technical Specifications

Frequently Asked Questions

What makes the BroadBeam® waveguide different from a standard tweeter?

BroadBeam® technology uses a shaped waveguide around the convex titanium dome to control high-frequency dispersion and maintain consistent off-axis response. This reduces the pronounced high-frequency narrowing common in conventional tweeters, producing a smoother sound field across the listening area.

Does the IPD-SM500I-II require PoE to operate?

No. While it accepts PoE/PoE+ power from any IEEE 802.3at switch, it can also be powered via a 24 V DC barrel connector — useful in retrofit situations where PoE infrastructure is not available. PoE++ is not supported.

How does the Stealth® bracket work?

The Stealth® bracket provides unlimited directional aiming by allowing the speaker to pivot and tilt independently on multiple axes. A security knob locks the position after commissioning to prevent post-installation movement. The detachable mounting plate supports pre-installation in wall or pole configurations.

Can this speaker be used outdoors?

The IPD-SM500I-II is not IP-rated for outdoor use. For outdoor applications, consider SoundTube's IP65-rated models such as the IPD-SM52-EZ-WX. Optional weatherboot accessories can provide additional protection in covered outdoor environments.

How are zones and volume managed across many speakers?

Each speaker is assigned a unique IP address and managed through SoundTube's STNet software. Zone groupings, volume levels, and EQ can all be adjusted remotely without physically accessing any speaker.

What optional accessories are available?

Available options include a black grille (GRL-SM500-II-BK), an extended 10" safety cable (AC-SM-SC10), a black mounting bracket (AC-SM5-II-WP-BK), a Euroblock connector, and a black weatherboot (WEATHERBOOT-S-BK) for added environmental protection.
