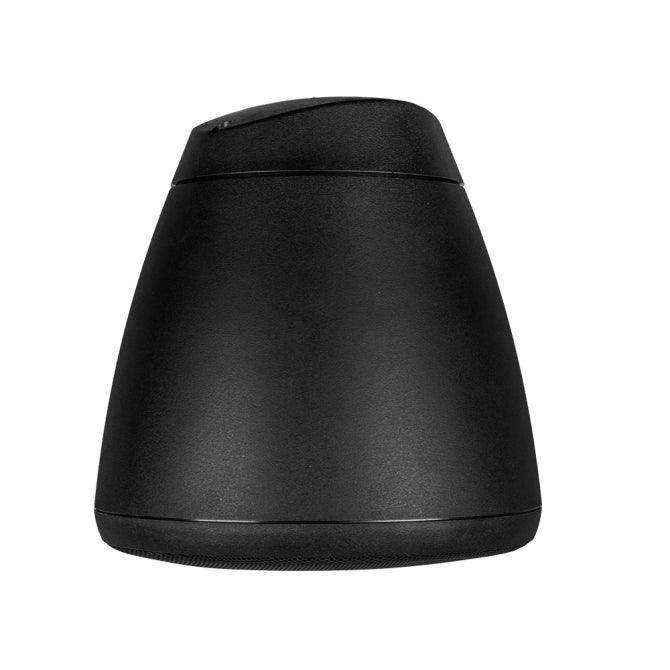

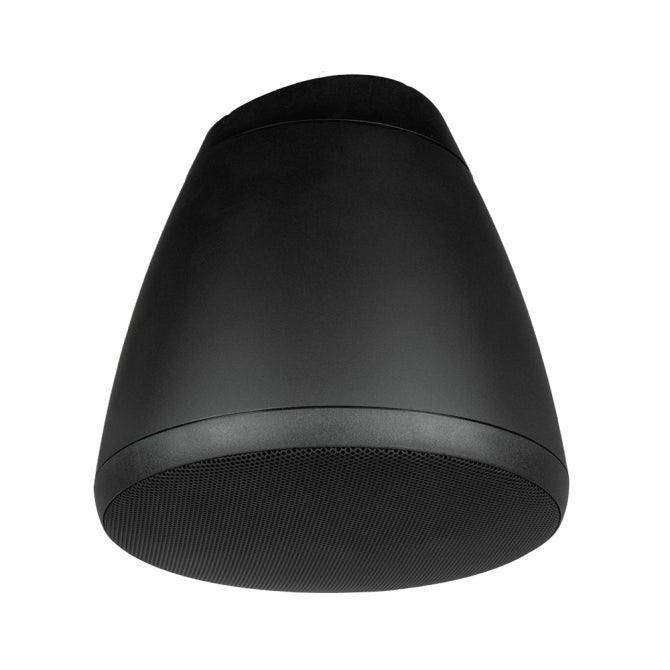

SoundTube IPD-HP82-EZ IP-Addressable Speaker in Black

SoundTube IPD-HP82-EZ — 8" IP-Addressable Pendant Speaker (Black)

Product Overview

The SoundTube IPD-HP82-EZ is a Dante®-enabled, IP-addressable 8" coaxial pendant speaker engineered for high-output performance in large commercial spaces. BroadBeamHP™ compression driver technology delivers extended throw and controlled 135° dispersion — making it exceptionally well-suited to venues with high ceilings where conventional pendant speakers lose intelligibility. Power, audio, and control reach each speaker over a single category cable from a PoE switch, with optional 24V DC power for non-PoE environments. This black-finish version integrates discreetly into dark-colored ceilings, exposed structural systems, and contemporary architectural environments.

Product Description

Designed for environments where both reach and audio quality are non-negotiable, the SoundTube IPD-HP82-EZ integrates the full STNet platform into a robust pendant housing. The speaker pairs an 8" treated paper cone woofer with cloth surround with a 1" titanium compression driver and waveguide for high-output, controlled directivity performance reaching 111 dB max SPL @ 1M.

Unlike passive pendant speakers that require dedicated amplifier infrastructure, the IPD-HP82-EZ draws power and receives digital audio over the same standard Ethernet cable used for network data — simplifying conduit runs and eliminating in-rack amplifier channels. The speaker connects to a SoundTube STNet Switch or any PoE/PoE+ switch (30W maximum; 40W with STNet Switch II), and can also be powered via a 24V DC barrel connector for retrofit or non-PoE installations.

The enclosure is constructed from injection-molded ABS with glass fiber reinforcement, rated for both indoor and outdoor applications. The aluminum grille features a protective powder-coated black finish and is engineered to resist corrosion in high-humidity environments such as natatoriums, covered outdoor venues, and food-service spaces. Galvanized steel hanging cables and hardware are included for fast, secure installation, and the unit may also be mounted direct-to-conduit via a locking cover plate.

Frequency response extends from 80 Hz to 22 kHz (±10 dB), with a 2.5 kHz crossover frequency and 12 dB/octave second-order network for both high-pass and low-pass sections. The coverage angle of 135° at ±6 dB/2 kHz ensures even audio distribution in wide, open spaces without requiring multiple tightly-aimed speakers.

Zone configuration, audio routing, and firmware management are handled entirely through SoundTube’s STNet Control Center software. Integrators can assign speakers to zones, adjust audio parameters, monitor speaker health, and update firmware from a central location — critical for large multi-zone deployments across hotel ballrooms, convention centers, and campus facilities.

The IPD-HP82-EZ is available in black (this listing) and white. Contact Creation Networks for system design assistance, volume pricing, and project support. Our team specializes in Dante-networked audio solutions for commercial AV integrators and end-users.

Key Features

• BroadBeamHP™ Compression Driver — 1" titanium compression driver with waveguide delivers high-output, long-throw audio with 135° controlled dispersion.
• Dante® Network Audio — Full STNet platform compatibility for IP-addressable audio distribution across Dante-enabled AV networks.
• Single-Cable PoE Installation — Power, digital audio, and bidirectional control via one standard category cable; 24V DC backup input for non-PoE sites.
• 111 dB Max SPL @ 1M — High output headroom for noisy commercial environments including food courts, sports venues, and event spaces.
• Wide Frequency Response — 80 Hz – 22 kHz (±10 dB), 110 Hz – 22 kHz (±3 dB) with titanium compression driver clarity.
• Fiberglass-Reinforced ABS Enclosure — Durable, lightweight housing engineered for demanding indoor and light outdoor environments.
• Powder-Coated Black Aluminum Grille — Corrosion-resistant black finish integrates naturally into dark ceilings and industrial design aesthetics.
• Hardware Included — Galvanized steel cables, hanging bracket, weather plug, cover plate, and 10’ hanging cable included for immediate installation.
• Flexible Mounting — Hang from structural steel or mount direct-to-conduit via locking cover plate; optional beam clamp and forged eye bolt accessories available.
• CE, RoHS, UL60065 Certified — Meets international safety and environmental compliance standards for commercial installation.

Typical Applications

• Hotel ballrooms and pre-function areas with high ceilings
• Convention and exhibition halls requiring flexible zone audio
• Upscale restaurant dining rooms and bar areas
• Houses of worship with large sanctuary spaces
• Fitness centers, natatoriums, and athletic facilities
• Covered outdoor dining and event terraces
• Retail atriums and multi-level shopping environments

Technical Specifications

Frequently Asked Questions

What is the difference between the HP82-EZ and the RS82-EZ?

The IPD-HP82-EZ uses a 1" titanium compression driver with waveguide (BroadBeamHP™) optimized for high-ceiling, long-throw applications with 135° coverage. The IPD-RS82-EZ uses a 1" silk dome tweeter with BroadBeam Ring® for 107° coverage, suited to lower-ceiling pendant and open-ceiling installations.

Can the IPD-HP82-EZ be used outdoors?

The fiberglass-reinforced ABS enclosure and powder-coated aluminum grille are engineered for both indoor and sheltered outdoor use. For fully exposed outdoor installations, review the installation environment against UL60065 ratings and consider the weather plug and optional Black Weatherboot accessory.

Is the IPD-HP82-EZ compatible with third-party PoE switches?

Yes. The speaker operates with any IEEE 802.3af/at (PoE/PoE+) switch at up to 30W. For maximum 40W output, connect to a SoundTube STNet Switch II. Note: PoE++ (802.3bt) is NOT supported.

How does zone configuration work?

All zone assignments and audio routing are managed through SoundTube STNet Control Center software installed on a networked PC. No physical access to the speaker is required after initial cabling — zones can be reconfigured live during events.

What hanging hardware is included?

The IPD-HP82-EZ ships with galvanized steel hanging cables, a hanging bracket, cover plate, weather plug, and a 10’ hanging cable (AC-RSEZ-HH-10). Optional 20’ cables, beam clamps, forged eye bolts, and snap links are available as accessories.

Is this speaker available in white?

Yes. The IPD-HP82-EZ-WH is the identical speaker in a white finish. Both colors are available at Creation Networks.
