Soundtube HP890I 8" 2-way Hanging Speaker

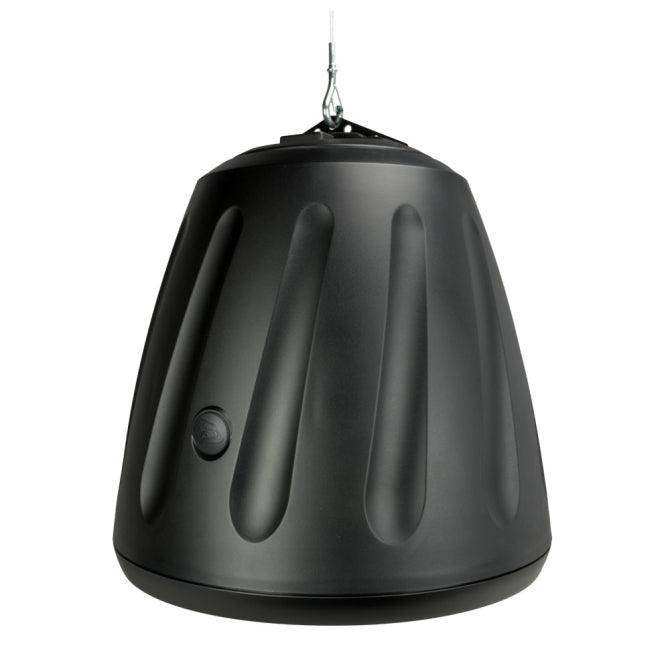

SoundTube HP890I — 8" 2-Way High-Ceiling Pendant Speaker

The SoundTube HP890I is a professional-grade, high-output 8" two-way pendant speaker engineered for large open-ceiling commercial environments where standard ceiling speakers cannot project with sufficient clarity or coverage. Part of SoundTube's HPi High Ceiling Pendant series, the HP890I combines a patented BroadBeam Ring waveguide with a 1.38" titanium compression driver to achieve consistent 85° dispersion and 94 dB average sensitivity — making it an authoritative choice for sports venues, transit halls, airport concourses, hotel atriums, convention centers, and industrial facilities with ceilings 20 feet and above. The speaker is UL 1480 (UEAY) and UL 2239 (hanging cable) listed for sound reinforcement applications and ships ready to hang with galvanized steel safety cables and SpeedClamp self-locking wire grips.

At the heart of the HP890I is an 8" treated-fiber woofer paired with a 1.38" titanium compression driver mounted to a proprietary cast-aluminum baffle that doubles as a heat sink. The 2.5 kHz crossover uses 12 dB/octave second-order networks on both high-pass and low-pass paths, delivering smooth handoff between drivers for natural, intelligible reproduction from 65 Hz to 22 kHz (±10 dB). A five-position rotary transformer tap selector supports 25V, 70.7V, and 100V distributed systems as well as direct 8Ω amplifier connection — covering both installed-sound and PA-reinforcement system architectures. Maximum continuous power handling reaches 125W RMS (250W program), and the ported ABS glass-fiber-reinforced enclosure provides the cabinet rigidity and volume (1,288 cu in) needed for controlled low-frequency extension. The HP890I is available in black (HP890I-BK) and white (HP890I-WH) to suit architectural finishes.

Key Features

• Patented BroadBeam Ring Waveguide — Produces a consistent 85° dispersion pattern for edge-to-edge coverage and maximum intelligibility across wide listener areas.
• High-Output 2-Way Transducer Array — 8" treated-fiber woofer plus 1.38" titanium compression driver deliver 94 dB sensitivity and up to 125W RMS continuous power handling.
• Multi-Voltage Transformer — Integrated 120W transformer with rotary tap selector supports 25V, 70.7V, and 100V distributed systems, plus direct 8Ω bypass for low-impedance amplifiers.
• Patented ZeroReflection Enclosure — ABS glass-fiber-reinforced ported cabinet minimizes internal standing waves for accurate, coloration-free sound reproduction.
• SpeedClamp Self-Locking Wire Grip — Pre-installed on the supplied galvanized steel hanging cable for fast, code-compliant suspension without special tools.
• Cast-Aluminum Baffle / Heat Sink — Dual-purpose baffle provides precise driver alignment and passive thermal management for reliable long-term operation.
• UL 1480 & UL 2239 Listed — Safety listings for sound reinforcement and hanging cable confirm compliance with insurance and code requirements at commercial installations.
• CE & RoHS Certified — International compliance supports deployment in global hospitality, education, and corporate projects.

Typical Applications

• Sports arenas, gymnasiums, and recreational facilities with high open ceilings requiring long-throw intelligibility
• Airport departure halls, transit stations, and convention center exhibition floors
• Hotel atriums, grand lobbies, and ballrooms with 20+ foot exposed-ceiling environments
• Large-format retail or warehouse showrooms needing high-sensitivity paging and background music
• Houses of worship with high vaulted sanctuaries requiring even congregational coverage
• Industrial facilities and distribution centers with overhead PA paging requirements

Technical Specifications

Frequently Asked Questions

What ceiling height is the HP890I designed for?

The HP890I is engineered for high-ceiling applications typically 20 feet and above. Its 94 dB sensitivity and long-throw BroadBeam waveguide make it suitable for sports facilities, transit concourses, and atriums where standard pendant speakers lack sufficient output.

Can the HP890I be used on a 70.7V distributed system?

Yes. The integrated rotary tap selector supports 25V, 70.7V, and 100V operation with a maximum tap of 120W on the 70.7V and 100V settings. A direct 8Ω bypass position is also included for low-impedance amplifier connections.

Does the HP890I include safety hardware?

Yes. The HP890I ships with galvanized steel hanging cables and an integrated SpeedClamp self-locking wire grip for fast, code-compliant suspension. A Euroblock connector and terminal weather boot are also included.

Is the HP890I available in multiple colors?

Yes, the HP890I is available in black (HP890I-BK) and white (HP890I-WH) to complement different architectural environments.

What optional accessories are available?

Optional accessories include black grille (GRL-RS800-BK), extended hanging cables (10', 20', 50'), surface-mount bracket, beam clamp, forged eye bolt, and snap link — allowing tailored installation for diverse structural conditions.

Is the HP890I suitable for outdoor applications?

The HP890I is rated for indoor use. For outdoor or extreme-weather applications, SoundTube's XT Extreme Weather Outdoor Series provides weather-sealed alternatives.

Where can I purchase the SoundTube HP890I?

The HP890I is available at creationnetworks.net, an authorized SoundTube reseller with deep expertise in commercial AV integration.
