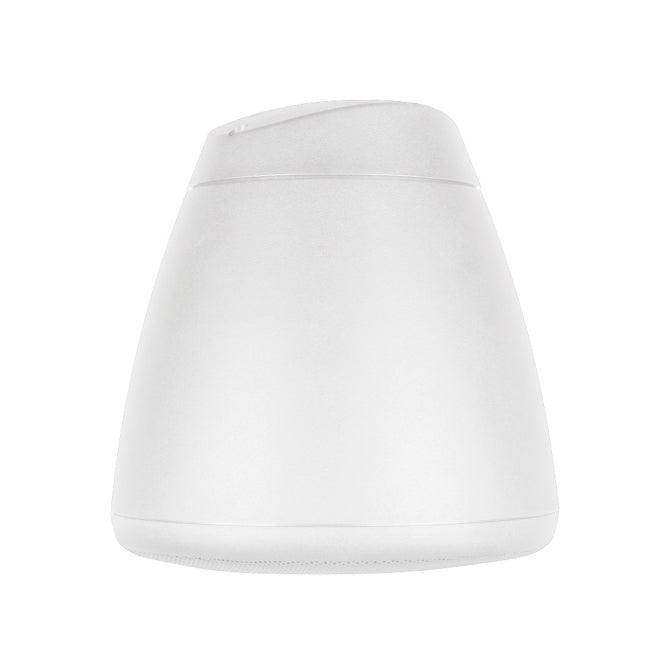

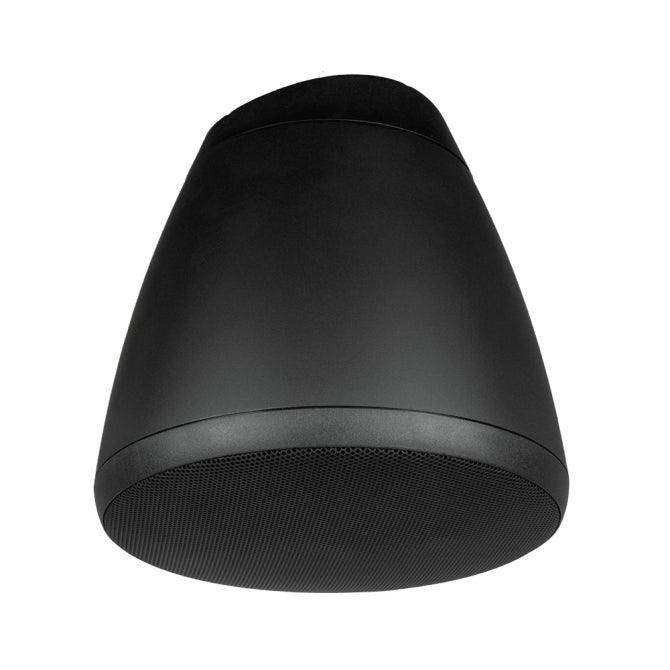

SoundTube HP82-EZ 8" High-Power Hanging Speaker

The SoundTube HP82-EZ is a premium 8-inch high-power coaxial pendant speaker engineered for open-ceiling commercial environments that demand long-throw coverage with exceptional voice and music clarity. Featuring SoundTube's patented BroadBeam Ring compression driver technology, the HP82-EZ achieves a 135-degree coverage angle at 2 kHz — significantly wider than conventional pendant designs — reducing the number of speakers required to cover a given area. The speaker is equally at home in indoor atriums and outdoor covered applications, thanks to its injection-molded ABS enclosure with fiberglass reinforcement and powder-coated aluminum grille.

The HP82-EZ pairs an 8-inch treated paper cone woofer with a 1.38-inch titanium compression driver and waveguide, crossing over at 2.5 kHz for a smooth, high-SPL acoustic transition. A 16-ohm nominal impedance simplifies daisy-chaining in low-voltage distributed systems, and the integrated six-position rotary tap switch supports 25V, 70.7V, 100V, and 16-ohm direct operation without external accessories. Certifications include UL 1480 UEAY, UL 2239, CE, EN54-24, and RoHS, qualifying it for life-safety and voice alarm applications under EU regulations EN60849 and BS5839-8.

Creation Networks carries the full SoundTube HP-EZ line and can assist with coverage modeling for high-ceiling and challenging acoustic environments — contact us for a consultation.

Key Features

• BroadBeam Ring Compression Driver Technology — Patented waveguide delivers a 135-degree coverage angle for long-throw, wide-area coverage from a single speaker position.
• 8" Treated Paper Cone Woofer — High-excursion woofer with cloth surround handles 64W RMS continuously for extended SPL in demanding environments.
• 1.38" Titanium Compression Tweeter — High-frequency driver with integrated waveguide maintains consistent tonal balance at wide off-axis angles.
• 16-Ohm Impedance — Enables straightforward daisy-chaining in low-voltage distributed systems without complex impedance matching.

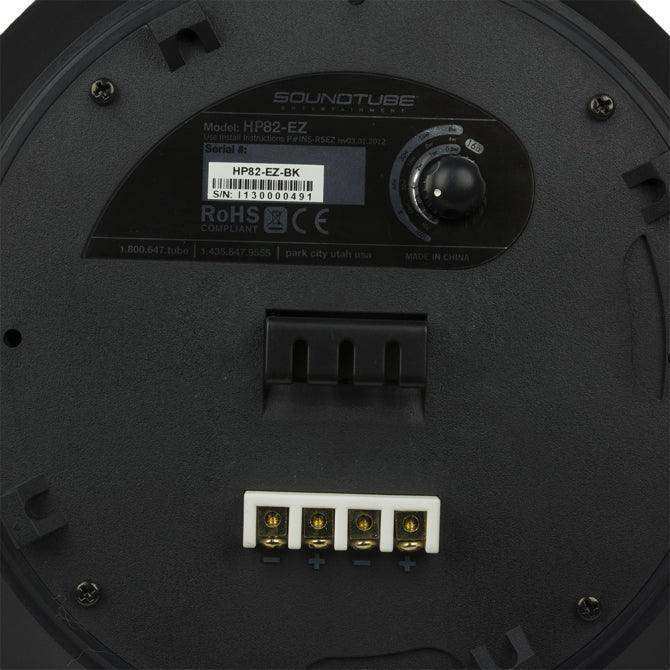

• Built-In Transformer — Integrated rotary tap supports 25V/70.7V/100V line systems and 16-ohm direct, covering virtually all commercial amplifier types.
• EN54-24 and UL Listed — Certified for voice alarm and life-safety applications under both EU and North American standards.

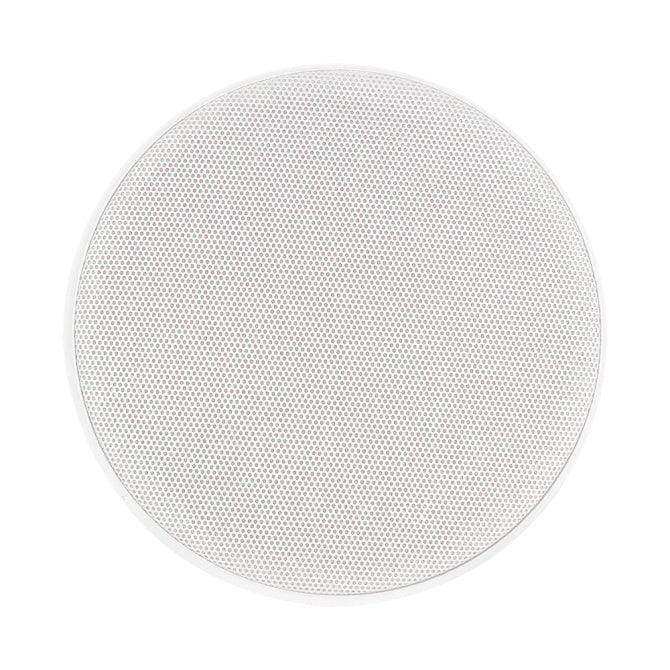

• Indoor/Outdoor Rated — ABS with fiberglass reinforcement and powder-coated aluminum grille suit protected outdoor covered areas.
• EZ Hanging System — Galvanized steel cables, integrated hanging bracket, and SpeedClamp wire grip enable single-technician installation.

Typical Applications

• High-ceiling retail and big-box stores
• Airport terminals and transportation hubs
• Covered outdoor venues and stadium concourses
• Industrial facilities requiring EN54 voice alarm compliance
• Houses of worship with open-rafter ceiling designs
• Hotel lobbies, atriums, and convention centers

Technical Specifications

Frequently Asked Questions

What does BroadBeam Ring technology do?

BroadBeam Ring is SoundTube's patented high-frequency waveguide that wraps the tweeter in a ring pattern around the woofer, producing a wider, smoother coverage pattern than conventional coaxial designs — typically 135 degrees at 2 kHz versus 90 degrees for standard pendants.

Is the HP82-EZ approved for voice alarm (fire/emergency) systems?

Yes. The HP82-EZ carries UL 1480 UEAY and UL 2239 listings and meets EN54-24 for EU voice alarm applications under EN60849 and BS5839-8.

What hanging cable lengths are available?

The HP82-EZ includes a 10-foot hanging cable (AC-RSEZ-HH-10). Optional 20-foot cables are available separately for higher ceilings.

Can it be used outdoors?

Yes, in protected outdoor areas. The reinforced ABS enclosure and powder-coated aluminum grille are suitable for covered outdoor venues, stadium concourses, and similar protected environments.

What is the difference between the HP82-EZ and the RS82-EZ?

The HP82-EZ is the high-power variant with a titanium compression driver and higher sustained SPL capability, while the RS82-EZ is the economical version with a silk dome tweeter and the same 8-inch woofer. Both carry EN54-24 or UL certifications but the HP82-EZ is preferred for longer-throw and higher-output applications.

What amplifiers are compatible?

Any commercial amplifier supporting 70.7V, 100V, 25V, or 16-ohm direct is compatible. The built-in rotary tap switch selects the operating mode without additional accessories.
