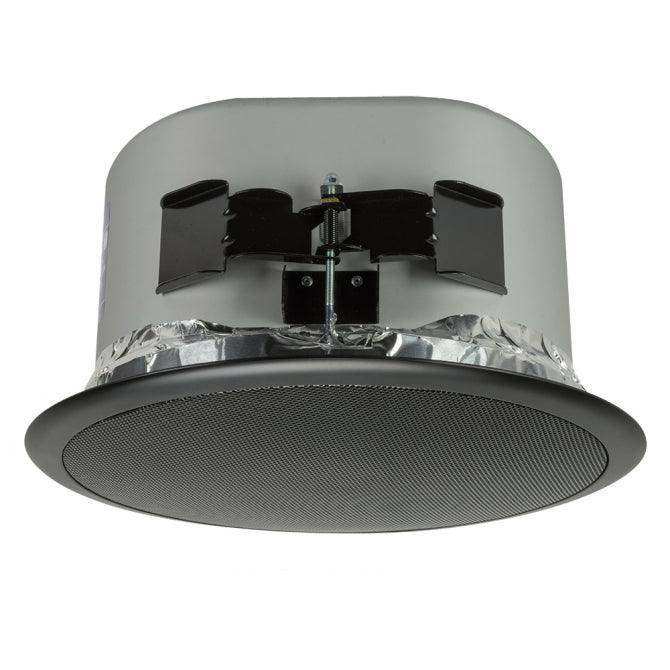

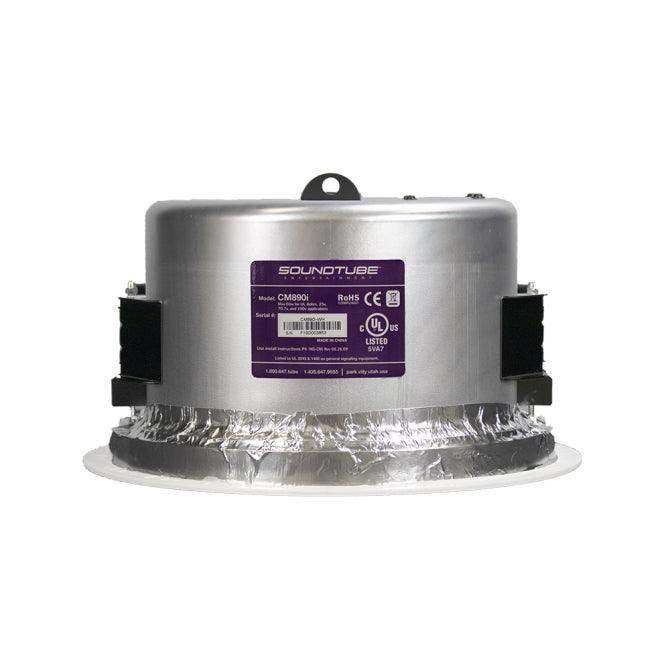

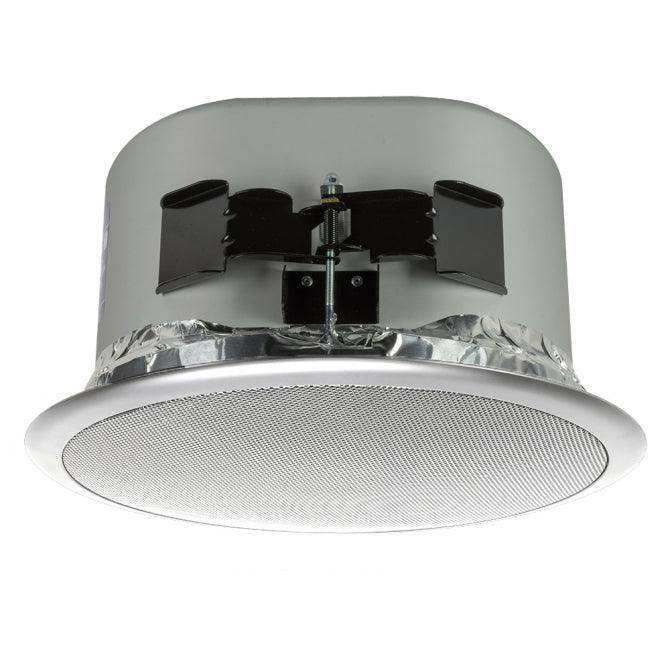

Patented BroadBeam Ring™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. A 66-watt transformer and high output for the sound reinforcement and PA markets. One 8.0 inch treated fiber driver and one compression driver with a 1.0 inch exit mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixes to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy access six-position tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Average sensitivity of 93.0 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask/installation aid.
|Manufacturer's Category||CMi In-Ceiling|
|Height||18.78 in / 477 mm|
|Width/Diameter||11.65 in / 295.9 mm|
|Shipping Weight||47.55 lbs / 21.57 kg|
|Carton Height||18.75 in / 476.25 mm|
|Carton Length||32 in / 812.8 mm|
|Carton Width||14 in / 355.6 mm|
|Certifications||CE, RoHS, UL1480, UL2043|
|Enclosure Properties||ABS Glass Fiber Reinforced, Injection Molded, Ported|
|Enclosure Volume||1008 cu in / 16518.16 cu cm|
|Included Accessories||Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge|
|Optional Accessories||White Metal Grille (GRL-CM6/8-WH-1)|White Weather-Guard Grille (GRL-CM6/8-WG-WH)|White Flangeless Grill (GRL-CM6/8-FLG-WH)|Tile Bridge (AC-CM8-TB)|Pre-Construction Bracket (AC-CM8-PCB)|Junction Box (AC-CM-JBOX)|
|Source Inputs||4 Pin 5.08mm Euroblock|
|Crossover Frequency||2.5 kHz|
|Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)||5.4 and 7.2|
|Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)||6.7dB and 9.4dB|
|Frequency Response (± 10 dB)||62 Hz - 22 kHz|
|Frequency Response (± 3 dB)||80 Hz - 22 kHz|
|Grille Properties||Standard-Flange, Magnetic, Powder-Coated, White, Paintable, Steel|
|Low Frequency Voice Coil||1.34 in / 34 mm|
|Low Pass Crossover||12 dB per octave 2nd order|
|Max. Continuous Power RMS||150w|
|Max. Program Power||300 W|
|Minimum Impedance (Ω Ohms)||8 Ω|
|Mounting Depth||15.37 in / 390.4 mm|
|Network Type: High Pass||12 dB per octave 2nd order|
|Nominal Impedance (Ω Ohms)||8 Ω|
|Tweeter Driver||1.42" Titanium Compression Driver w/ Waveguide|
|Woofer Driver||8" High-Efficiency Woofer|
|Sensitivity dB @ 1W/1M||92 dB|
|Sensitivity dB @ 2.83V/1M||92 dB|
|Tap Selector||Rotary Switch|
|Transformer Options||25 / 70.7 / 100 V, 8 Ohm direct|
|Transformer Taps Max. Setting (25V/70.7V/100V)||19W/150W/150W|
