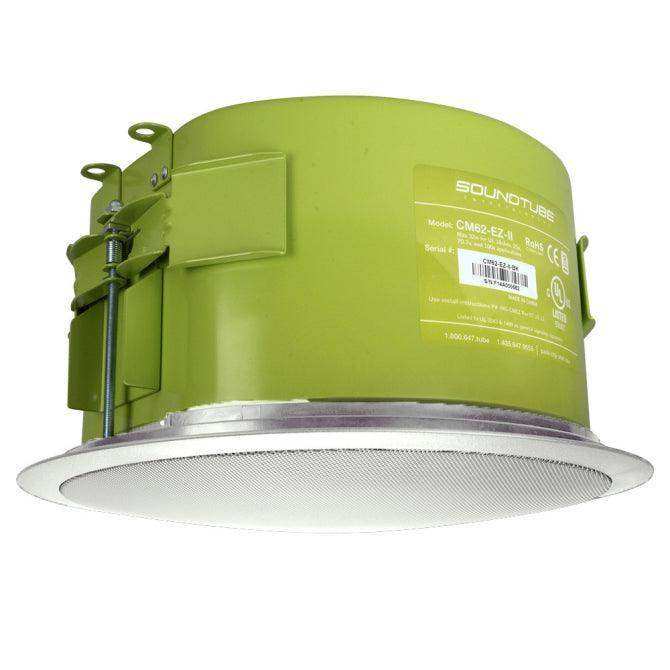

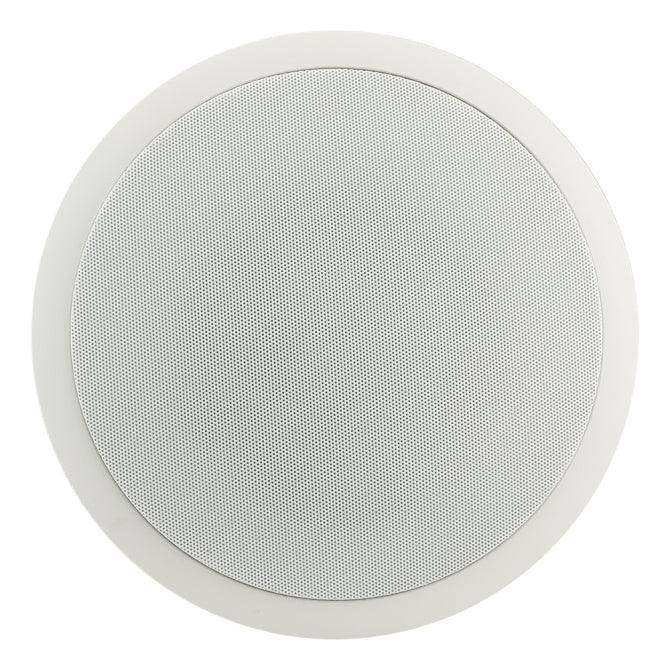

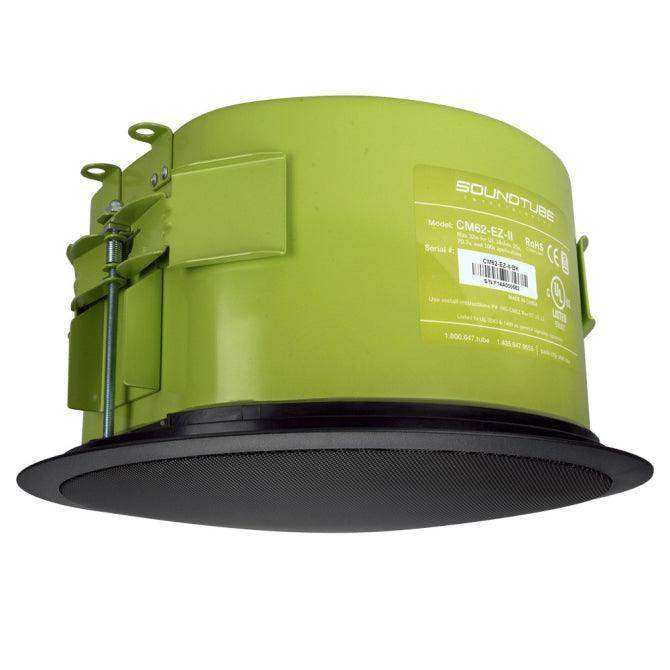

Soundtube CM62-EZ-II 6" 2-way In Ceiling Speaker

Soundtube SKU: CM62-EZ-II-BK
No reviews
Model: Black
Price:
$166.50

Description

The next generation version of the CM62-EZ with improved and additional features. One 6.5 in (165 mm) treated fiber woofer with cloth surround and one 1.0 in (25.4 mm) silk dome tweeter. Easy-access, six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 90 dB sensitivity and 16-ohm impedance. Superior voice intelligibility with a 10 kHz coverage angle of 80 (Independently verified). Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. EN54-24 listed. Adaptable to material thicknesses ranging from 0.04 in (0.9 mm) to 1.60 in (40.6 mm). UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. IP-Rating: IPX3.

Included accessories: Choose between a tile bridge or a pre-construction bracket, UL listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.

Manufacturer SoundTube
Manufacturer's Category CM-EZ Economical In-Ceiling
Shipping Weight 10.35 lbs / 4.69 kg
Carton Height 8 in / 203.2 mm
Carton Length 13 in / 330.2 mm
Carton Width 13.25 in / 336.55 mm
Certifications CE, EN54, RoHS, UL1480A, UL2043
Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Sealed
Enclosure Volume 350 cu in / 5735.47 cu cm
Included Accessories Conduit Clamp, Cover Plate, Grille, Paint Mask, Choose Between a Tile Bridge or Pre-Construction Bracket
Optional Accessories Black Grille (GRL-CM6/8EZ-II-BK)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)

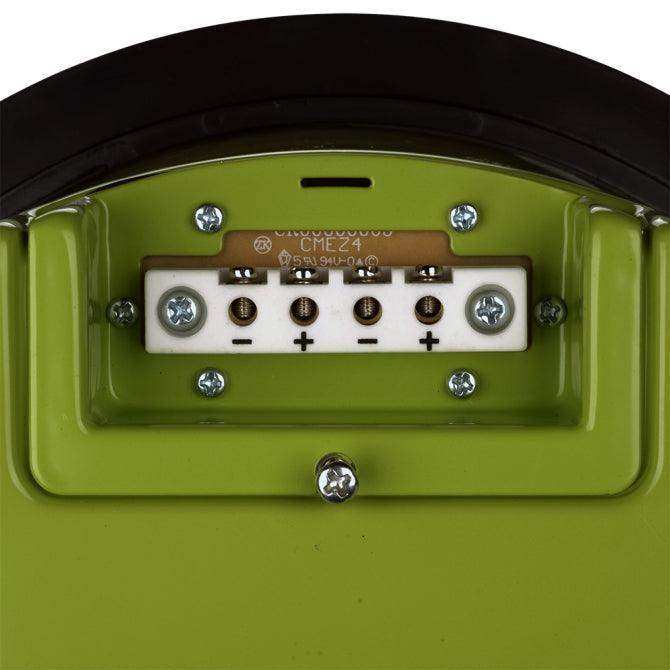

Source Inputs 4 Pin Ceramic Terminal
IP Rating IPX3
Backcan Diameter 9.67 in / 245.6 mm
Backcan Height 5.125 in / 130.2 mm
Coverage Angle (±6dB @ 2kHz) 120°
Crossover Frequency 4.0 kHz
Cutout Width/Diameter 10.5 in / 266.7 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 5.1 and 5
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 6.2dB and 7.0dB
Frequency Response (± 10 dB) 65 Hz - 22 kHz
Frequency Response (± 3 dB) 125 Hz - 20 kHz

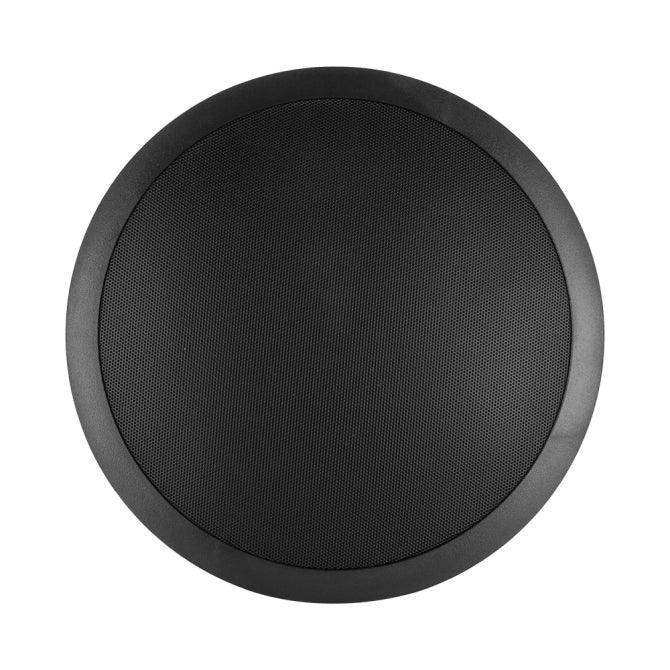

Grille Properties Black, Standard-Flange, Friction-Fit, Paintable, Painted, Steel
Low Frequency Voice Coil 1 in / 25.4 mm
Low Pass Crossover 12 dB per octave 2nd order
Max. Ceiling Thickness 1.6 in / 40.6 mm
Max. Continuous Power RMS 50W
Max. Program Power 100 W
Minimum Impedance (Ω Ohms) 17.9 Ω
Minimum Ceiling Thickness 0.04 in / 0.9 mm
Network Type: High Pass 6 dB per octave 1st order
Nominal Impedance (Ω Ohms) 16 Ω
Tweeter Driver 1" Silk Dome
Woofer Driver 6.5" Treated Fiber Cone w/ Cloth Surround
Sensitivity dB @ 1W/1M 90 dB
Sensitivity dB @ 2.83V/1M 87 dB
Tap Selector Rotary Switch
Transformer Options 25 / 70.7 / 100 V, 16 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V) 4W/32W/32W
Visible Diameter 11.75 in / 298.5 mm
Visible Height 0.34 in / 8.6 mm
