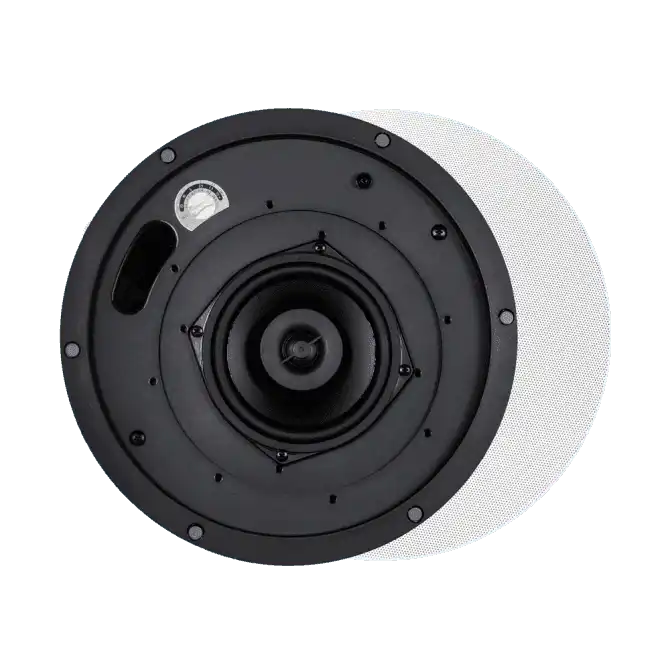

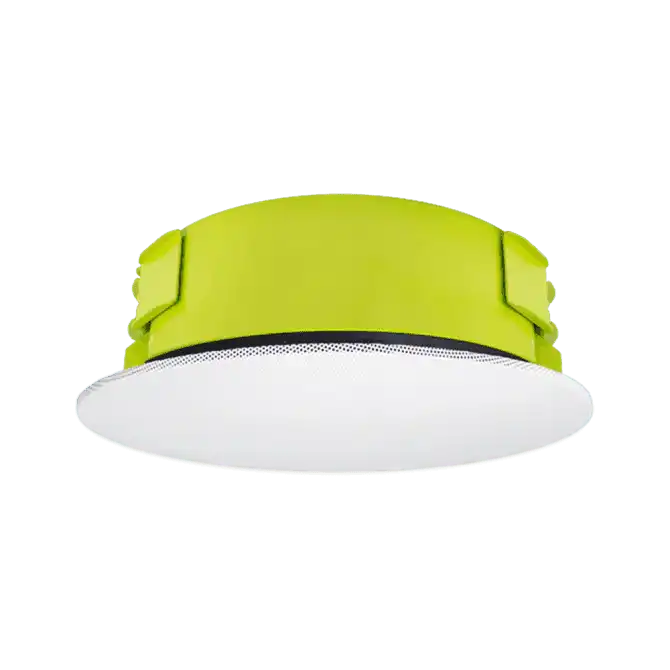

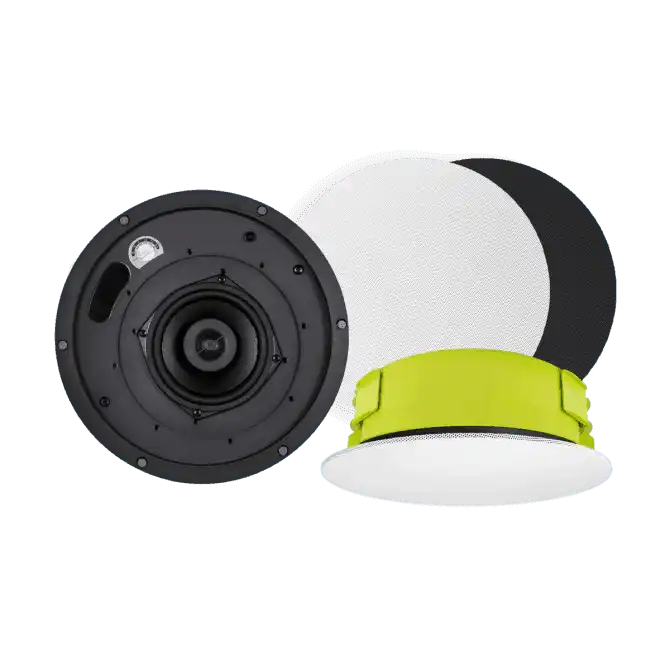

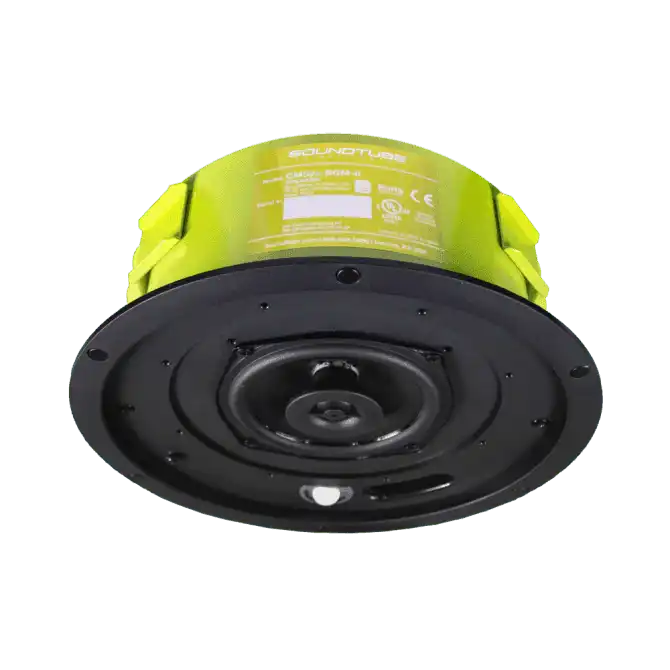

Soundtube CM52S-BGM-II-WH 5.25" In Ceiling Short Can Speaker with white magnetic grill

Soundtube SKU: CM52S-BGM-II-WH
No reviews
Price:
$179.50

Description

Engineered for applications with limited plenum space. Incorporates a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 listed.

Included accessories: Color-coded tile bridge, UL listed 0.5 inch conduit clamp, paint shield.

Color White
UPC 644216227808
Manufacturer SoundTube
Manufacturer's Category CM-BGM Background Music In-Ceiling
Shipping Weight 8.6 lbs / 3.9 kg
Carton Height 6.25 in / 158.75 mm
Carton Length 13.25 in / 336.55 mm
Carton Width 13.25 in / 336.55 mm
Certifications CE, RoHS, UL1480, UL2043
Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume 350 cu in / 5735.47 cu cm
Included Accessories Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge
Optional Accessories Square Grille (GRL-CM-BGM-II-SQ-WH)|Black Grille (GRL-CM-BGM-II-BK)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)
Source Inputs 4 Pin Ceramic Terminal
Backcan Diameter 9.67 in / 245.6 mm
Backcan Height 3.75 in / 95.3 mm
Coverage Angle (±6dB @ 2kHz) 170°
Crossover Frequency 5.0 kHz
Cutout Width/Diameter 10.5 in / 266.7 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 3.2 and 2.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5dB and 3.3dB
Frequency Response (± 10 dB) 56 Hz - 22 kHz
Frequency Response (± 3 dB) 67 Hz - 20 kHz
Grille Properties Magnetic, Micro-Flange, White, Paintable, Painted, Steel
Low Frequency Voice Coil 1 in / 25.4 mm
Low Pass Crossover 12 dB per octave 2nd order
Max. Ceiling Thickness 1.6 in / 40.6 mm
Max. Continuous Power RMS 20W
Max. Program Power 40 W
Minimum Impedance (Ω Ohms) 16 Ω
Minimum Ceiling Thickness 0.04 in / 0.9 mm
Network Type: High Pass 12 dB per octave 2nd order
Nominal Impedance (Ω Ohms) 16 Ω
Tweeter Driver 1" Silk Dome w/ BroadBeam Ring®
Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround
Power for Max SPL 40 W
Sensitivity dB @ 1W/1M 82 dB
Sensitivity dB @ 2.83V/1M 79.1 dB
Tap Selector Rotary Switch
Transformer Taps Max. Setting (25V/70.7V/100V) 2.5W/20W/20W
Visible Diameter 11.75 in / 298.5 mm
Visible Height 0.34 in / 8.6 mm
