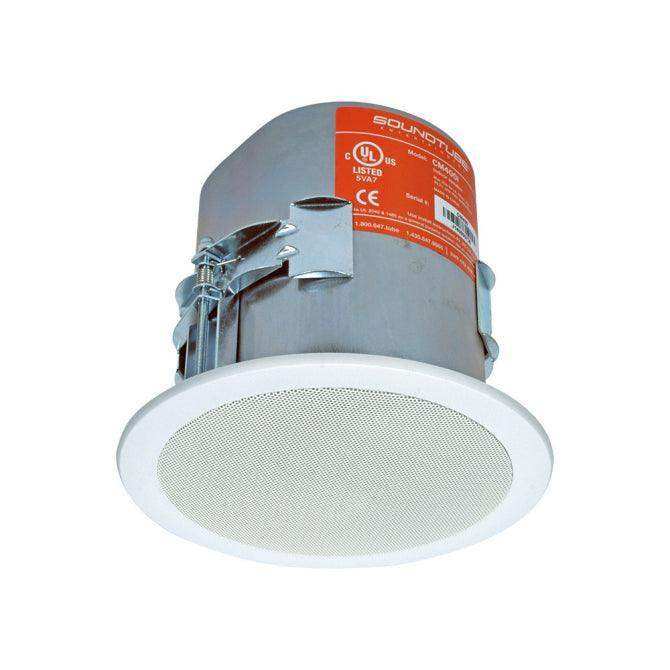

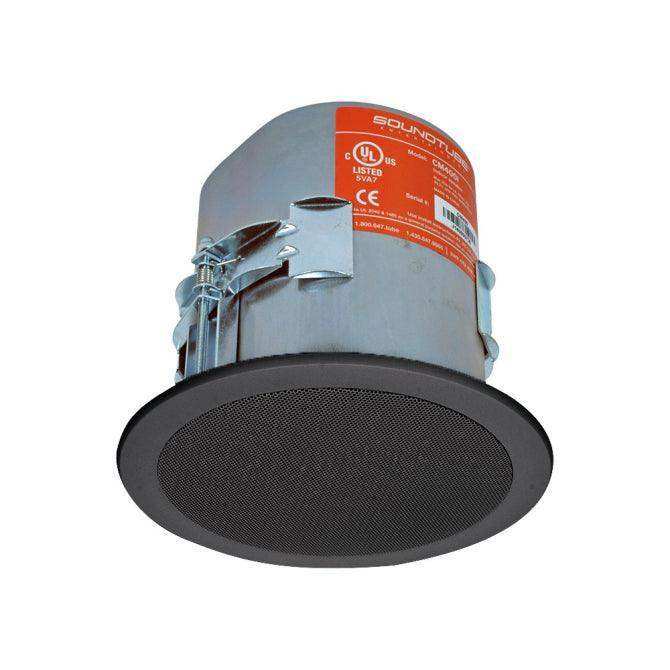

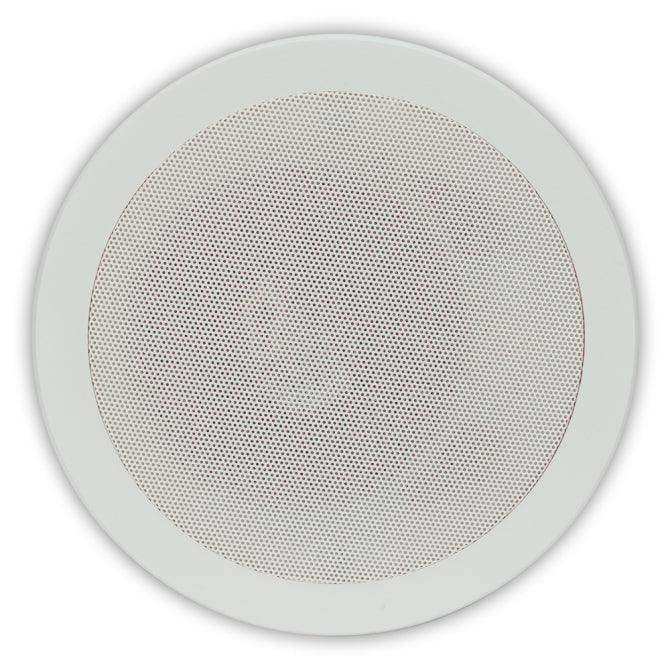

One 4.0 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling. Rapid installation blind-mount, fixed- wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.025 inch (0.6 mm) to 1.87 inch (47.5 mm). Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting. Powder-coated steel grille for lasting durability. 90 dB average sensitivity offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
Included accessories: Paint mask, Euroblock connector and UL cover plate, and choose between a color-coded (orange) tile bridge or a pre-construction bracket.
|Manufacturer's Category||CMi In-Ceiling|
|Shipping Weight||7.25 lbs / 3.29 kg|
|Carton Height||9.25 in / 234.95 mm|
|Carton Length||10 in / 254 mm|
|Carton Width||10 in / 254 mm|
|Certifications||CE, RoHS, UL1480A, UL2043|
|Enclosure Properties||ABS, Ported, Steel|
|Enclosure Volume||104 cu in / 1704.25 cu cm|
|Included Accessories||Conduit Plate, Euroblock, Grille, Paint Mask, Choose Between a Tile Bridge or Pre-Construction Bracket|
|Optional Accessories||Black Grille (GRL-CM400-BK)|Flangeless Magnetic Grille (WHITE ONLY) (GRL-CM42EZ-II-RD-WH)|Tile Bridge (AC-CMEZ42-TB)|Pre-Construction Bracket (AC-CMEZ4-PCB)|Junction Box (AC-CM-JBOX)|Connector (EUROBLOCK)|
|Source Inputs||4 Pin 5.08mm Euroblock|
|Backcan Diameter||6.05 in / 153.7 mm|
|Backcan Height||6.55 in / 166.4 mm|
|Coverage Angle (±6dB @ 2kHz)||65°|
|Crossover Frequency||1.8 kHz|
|Cutout Width/Diameter||6.6 in / 167.6 mm|
|Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)||4.6 and 4.3|
|Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)||5.6dB and 6.3dB|
|Frequency Response (± 10 dB)||75 Hz - 22 kHz|
|Frequency Response (± 3 dB)||90 Hz - 22 kHz|

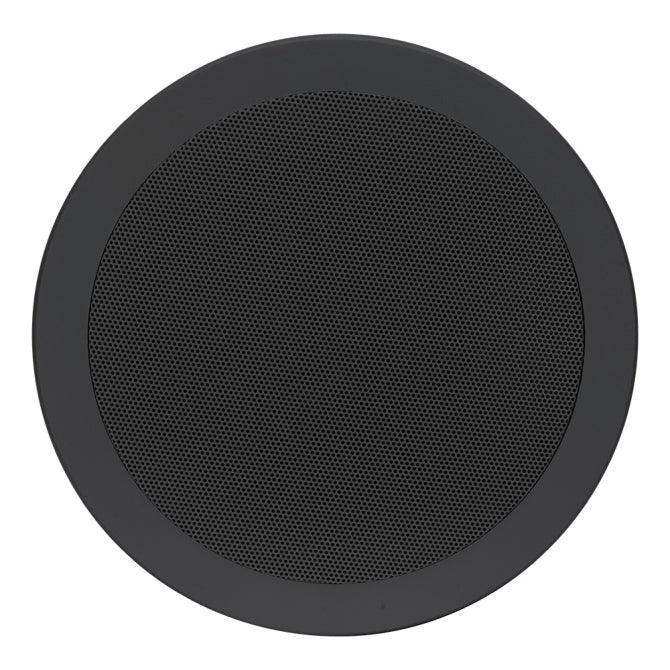

|Grille Properties||Black, Standard-Flange, Magnetic, Powder-Coated, Paintable, Steel|
|Low Frequency Voice Coil||0.75 in / 19 mm|
|Low Pass Crossover||12 dB per octave 2nd order|
|Max. Ceiling Thickness||1.87 in / 47.5 mm|
|Max. Continuous Power RMS||20W|
|Max. Program Power||40 W|
|Minimum Impedance (Ω Ohms)||3.3 Ω|
|Minimum Ceiling Thickness||0.02 in / 0.6 mm|
|Network Type: High Pass||12 dB per octave 2nd order|
|Nominal Impedance (Ω Ohms)||4 Ω|
|Tweeter Driver||1" Convex Aluminum w/ BroadBeam® Waveguide|
|Woofer Driver||4" Polypropylene|
|Sensitivity dB @ 1W/1M||87 dB|
|Sensitivity dB @ 2.83V/1M||90 dB|
|Tap Selector||Rotary Switch|
|Transformer Options||25 / 70.7 / 100 V, 4 Ohm direct|
|Transformer Taps Max. Setting (25V/70.7V/100V)||2.5W/20W/20W|
|Visible Diameter||8.15 in / 207 mm|
|Visible Height||0.47 in / 11.9 mm|
