Soundtube 8" IP-Addressable, Dante Addressable, Speaker in White

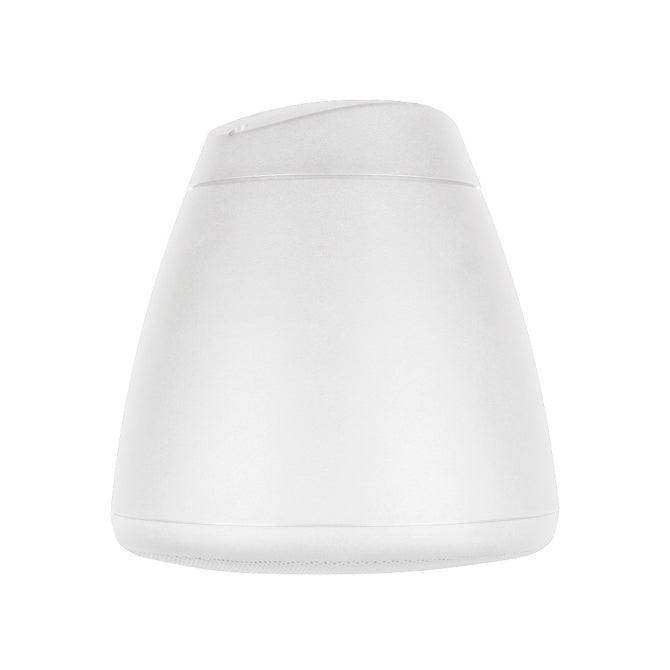

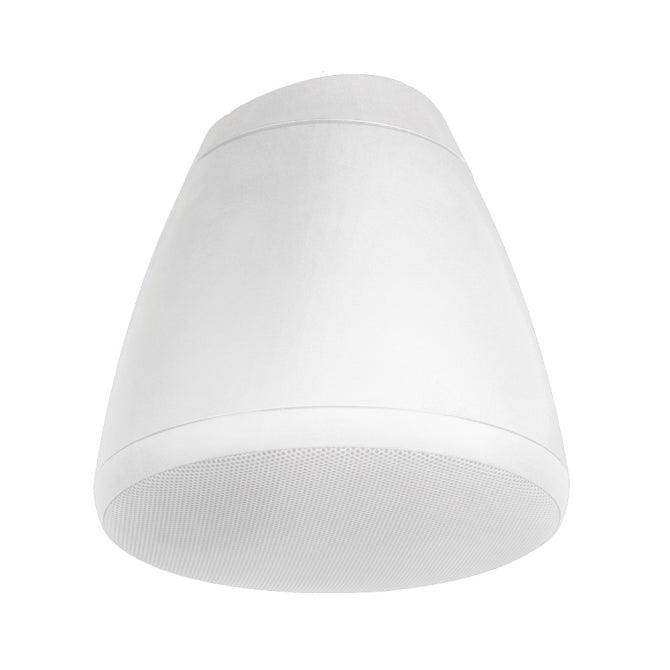

SoundTube IPD-RS82-EZ — 8" IP-Addressable Dante Pendant Speaker (White)

Product Overview

The SoundTube IPD-RS82-EZ is a Dante®-enabled, IP-addressable 8" coaxial pendant speaker designed for scalable, network-managed audio deployments in commercial and institutional environments. BroadBeam Ring® technology provides smooth, wide-dispersion high-frequency reproduction with a 107° coverage angle, making this speaker an effective choice for open-ceiling installations, mid-height commercial spaces, and distributed zones where uniform coverage matters. A single category cable carries PoE power, digital audio, and control to each unit from a PoE switch or SoundTube STNet Switch II. This white-finish version suits light-colored ceilings, exposed deck environments, and open architectural spaces.

Product Description

Built on SoundTube’s STNet platform, the IPD-RS82-EZ delivers low-latency Dante® digital audio and centralized control to pendant-mount locations that are often difficult or costly to serve with traditional analog infrastructure. Its 8" polypropylene cone woofer with butyl rubber surround and 1" silk dome tweeter with BroadBeam Ring® produce a balanced, natural sound character well-suited to background music, paging, and speech intelligibility applications.

The speaker connects to any IEEE 802.3af/at (PoE/PoE+) switch at up to 30W, or to the SoundTube STNet Switch II at up to 40W for maximum output. An optional 24V DC barrel connector input accommodates non-PoE and retrofit installations. Maximum SPL reaches 110 dB @ 1M, with frequency response extending from 80 Hz to 22 kHz (±10 dB).

The enclosure is injection-molded ABS with glass fiber reinforcement for lasting durability in both indoor and outdoor applications. The powder-coated aluminum grille provides corrosion resistance in high-humidity environments. Galvanized steel hanging cables and a hanging bracket are included, and the unit can be mounted direct-to-conduit via a locking cover plate. The unit ships in eco-friendly, recyclable packaging.

With a crossover frequency of 2.5 kHz and 12 dB/octave second-order crossover networks on both high-pass and low-pass sections, the IPD-RS82-EZ maintains clean driver integration across its operating bandwidth. The 107° coverage angle at ±6 dB/2 kHz and directivity factor (Q) values of 6.0 and 3.8 support predictable coverage modeling with standard AV design software.

All speaker parameters, zone assignments, and audio routing are managed through SoundTube’s STNet Control Center software from a central network location. No physical interaction with the speaker is required after initial installation for zone changes, firmware updates, or audio level adjustments. This makes the RS82-EZ platform particularly valuable in environments with frequently changing audio needs, such as hotel event spaces, university lecture facilities, and multi-tenant commercial buildings.

The IPD-RS82-EZ is available in white (this listing) and black (IPD-RS82-EZ-BK). Contact Creation Networks for system design, project pricing, and installation support.

Key Features

• BroadBeam Ring® Technology — 1" silk dome tweeter with dispersion ring delivers smooth, wide 107° high-frequency coverage for consistent room-fill in open-ceiling spaces.
• Dante® Network Audio — Full STNet IP-addressable platform with Dante integration for network-managed multi-zone audio distribution.
• Single-Cable PoE Installation — One CAT5e or CAT6 cable carries power (up to 40W with STNet Switch II), digital audio, and control to each speaker.
• 110 dB Max SPL @ 1M — Sufficient output for active commercial environments including dining, retail, and event spaces.
• Wide Frequency Response — 80 Hz – 22 kHz (±10 dB); 100 Hz – 22 kHz (±3 dB) for full-range background and foreground audio.

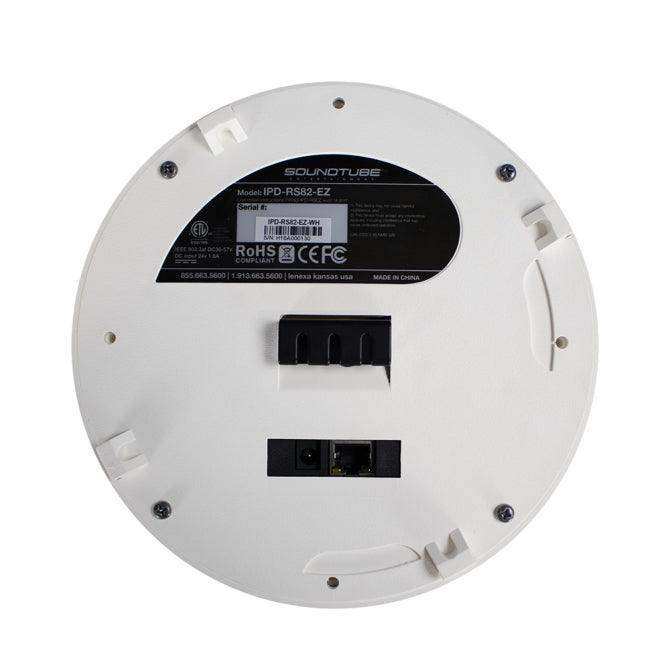

• 24V DC Backup Power — Non-PoE installations or retrofit projects supported via barrel connector input.
• Fiberglass-Reinforced ABS Enclosure — Impact-resistant housing rated for indoor and sheltered outdoor applications.

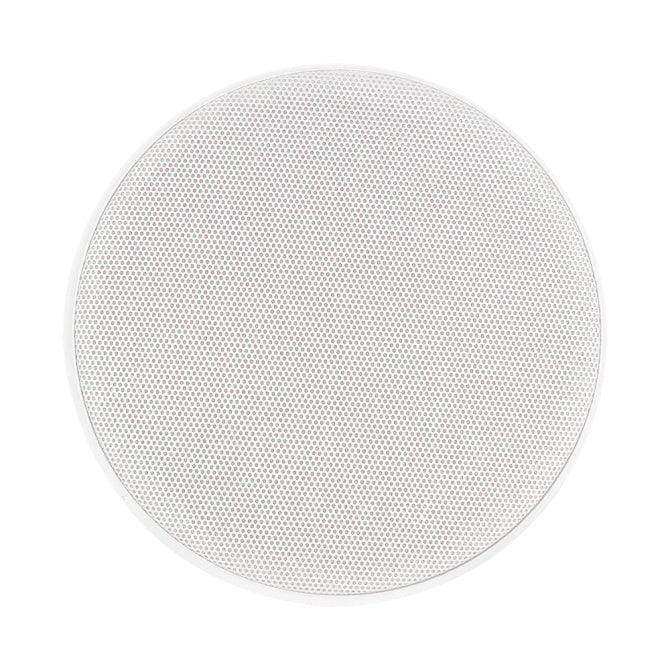

• Powder-Coated Aluminum Grille — Corrosion-resistant finish maintains appearance in demanding environments.
• Includes Full Hardware Kit — Galvanized steel hanging cables, hanging bracket, weather plug, cover plate, and 10’ cable included.
• CE, RoHS, UL60065, FCC Certified — Meets safety and compliance requirements for commercial audio installations in North America and internationally.

Typical Applications

• Hotel event spaces, corridors, and pre-function areas
• University and campus common areas and cafeterias
• Retail stores and shopping mall common areas
• Corporate lobbies and open-plan office environments
• Airport terminals and transportation hubs
• Healthcare waiting rooms and clinical common areas
• Covered outdoor courtyards and transit shelters

Technical Specifications

Frequently Asked Questions

What is the difference between the RS82-EZ and the HP82-EZ?

The IPD-RS82-EZ uses a 1" silk dome tweeter with BroadBeam Ring® for 107° smooth-dispersion coverage, suited to mid-height open-ceiling pendant installations. The IPD-HP82-EZ uses a titanium compression driver with waveguide for higher SPL (111 dB vs 110 dB) and 135° coverage, optimized for high-ceiling long-throw applications.

Can the IPD-RS82-EZ be used outdoors?

The enclosure is rated for both indoor and sheltered outdoor use. The powder-coated aluminum grille resists corrosion. Include the weather plug for moisture protection when installing in partially exposed environments.

Is the RS82-EZ compatible with standard PoE switches?

Yes. It operates with any IEEE 802.3af/at (PoE/PoE+) switch at up to 30W. For full 40W operation, use the SoundTube STNet Switch II. PoE++ (802.3bt) is NOT supported.

Can I mix RS82-EZ and other IPD speakers on the same STNet system?

Yes. All SoundTube IPD-series speakers are compatible within the same STNet system and can be managed together from STNet Control Center. Different speaker models can be assigned to different zones within the same installation.

What optional accessories are available?

Optional accessories include: Black Grille (GRL-RS82-EZ-BK), 10’ Hanging Cable (AC-RS-HH-10), 20’ Hanging Cable (AC-RS-HH-20), 50’ Hanging Cable (AC-RS-HH-50), Black Mounting Bracket (AC-RS-SM5-BK), Beam Clamp (AC-BC1), Forged Eye Bolt (AC-FE1), and Snap Link (AC-SL1).

Is this speaker available in black?

Yes. The IPD-RS82-EZ-BK is the identical speaker in a black finish. Both colors are available at Creation Networks.
