Soundtube IPD-RS82-EZ-BK 8" IP-Addressable, Dante Addressable, Speaker in Black
Soundtube IPD-RS82-EZ-BK 8" IP-Addressable, Dante Addressable, Speaker in Black is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
Soundtube IPD-RS82-EZ-BK 8" IP-Addressable, Dante Addressable,...
SoundTube IPD-RS82-EZ IP-Addressable Speaker in Black

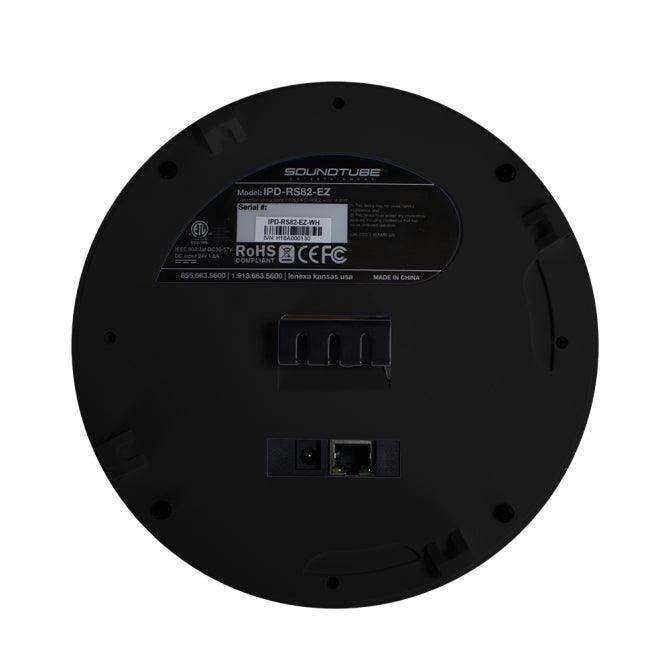

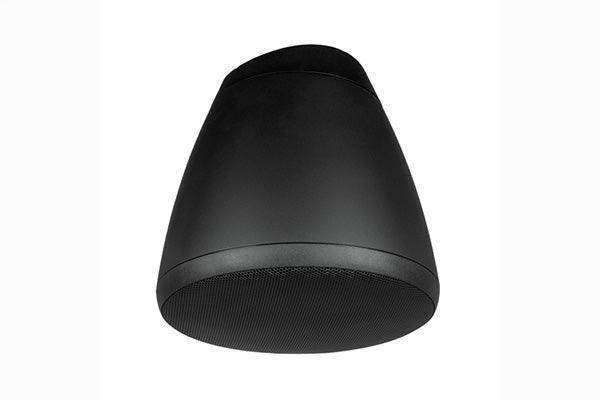

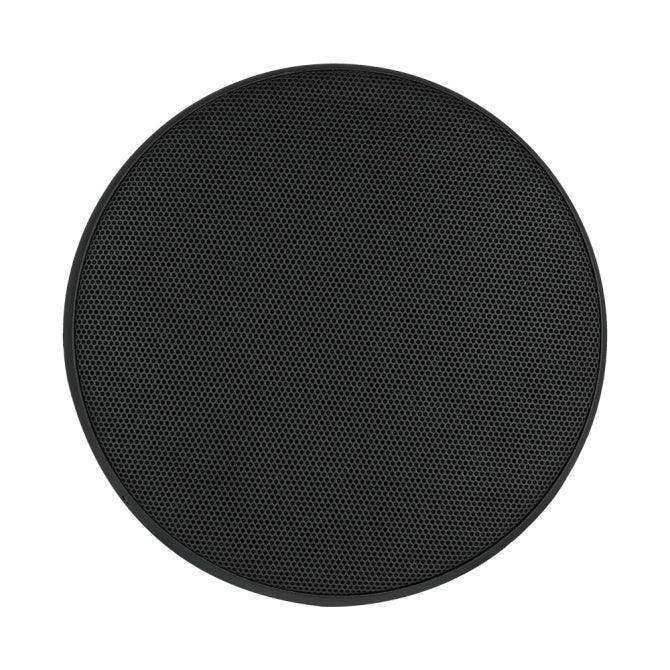

Dante®-enabled coaxial pendant speaker incorporates a 203 mm (8.0 in.) coaxial driver with BroadBeam Ring™ technology for consistently smooth high frequency. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. Aluminum grille with protective powder coated finish. Unit ships in eco-friendly, recyclable packaging. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Specs
| Color | Black |
|---|---|
| UPC | 748252177063 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 10.08 in / 256 mm |
| Shipping Weight | 13.55 lbs / 6.15 kg |
| Carton Height | 16 in / 406.4 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 15 in / 381 mm |
| Certifications | CE, RoHS, UL60065, FCC |
| Enclosure Properties | ABS Glass Fiber Reinforced |
| Included Accessories | Cover Plate, Hanging Hardware, Weather Plug |
| Optional Accessories | Black Grille (GRL-RS82-EZ-BK) | 10' Hanging Cable (AC-RS-HH-10) | 20' Hanging Cable (AC-RS-HH-20) | 50' Hanging Cable (AC-RS-HH-50) | Black Mounting Bracket (AC-RS-SM5-BK) | Beam Clamp (AC-BC1) | Forged Eye Bolt (AC-FE1) | Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | RJ45 Ethernet Port |
| Coverage Angle (±6dB @ 2kHz) | 107° |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.0 and 3.8 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 7.8 and 5.9 |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 100 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 110 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Tap Selector | Rotary Switch |
