SoundTube 5.25" IP-Addressable Speaker in White - IPD4-CM52-BGM-II

SoundTube IPD4-CM52-BGM-II 5.25" Dante IP-Addressable In-Ceiling Speaker — White

The SoundTube IPD4-CM52-BGM-II is a Dante®-enabled, IP-addressable 5.25-inch coaxial in-ceiling speaker from the STNet IP-Addressable and Dante Series. Designed as the network hub of a four-speaker cluster, this master speaker provides both audio output and distributed power to connect and drive up to three additional standard CM52-BGM in-ceiling speakers from a single PoE or PoE+ network connection, significantly reducing wiring complexity in commercial background music installations. Low-latency digital audio, power, and control are all delivered over standard category cable. The speaker is powered via PoE or PoE+ switch (note: not compatible with PoE++ — 30 W PoE max, or 40 W with STNet Switch II), or via a 24 V DC barrel connector for non-PoE applications. Available from Creation Networks, your authorized SoundTube dealer.

Full Product Description

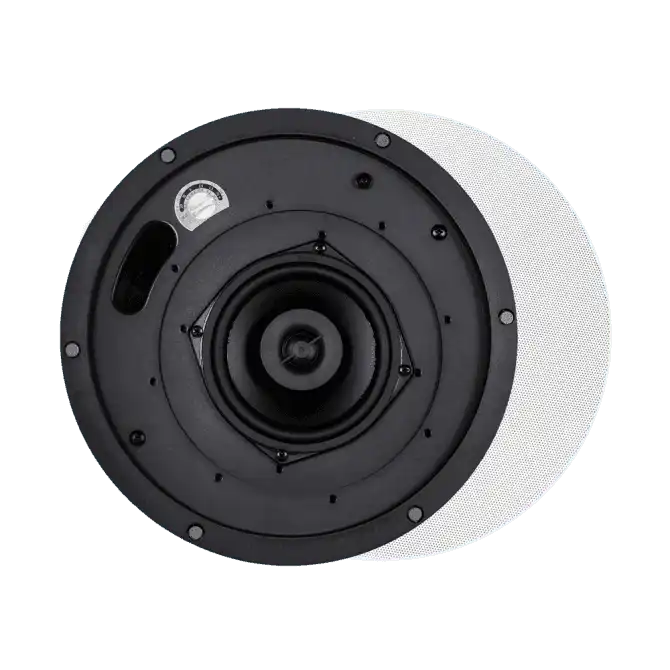

The IPD4-CM52-BGM-II incorporates a 5.25-inch polypropylene woofer with butyl rubber surround and a 0.75-inch silk dome tweeter, with SoundTube's BroadBeam Ring™ technology and a tuned port on the baffle providing smooth off-axis performance and bass response down to 65 Hz (−10 dB). The crossover frequency is 5.0 kHz with 12 dB/octave second-order networks. Maximum SPL is 93 dB at 40 W. Configuration and zoning are handled entirely via software through the STNet Control Center. The SpeedWing™ constant-tension fixed-wing mounting system accommodates ceiling thicknesses from 0.035 inch to 2.38 inches. Included accessories are a 6-pin Euroblock, conduit clamp, cover plate, paintable white steel grille, and paint mask. The speaker is certified CE, UL2043, UL60065, and ETL-C/US. Note: products 7924258177260 (SKU: IPD4-CM52-BGM-II) and 7857948000492 (SKU: IPD4-CM52-BGM-II-WH) are the same product — both are white and share the same specifications and UPC (748252172877). Order from Creation Networks.

Key Features

• Dante® IP-Addressable: Full network audio control with low-latency digital audio over standard Cat cable
• 4-Channel Master Speaker: Powers and connects up to 3 additional standard CM52-BGM speakers from a single PoE drop
• PoE / PoE+ Compatible: 30 W PoE max (40 W with STNet Switch II); also accepts 24 V DC barrel connector for non-PoE use
• BroadBeam Ring™ Technology: Smooth off-axis performance and wide dispersion for background music coverage
• 5.25" Polypropylene Woofer: Butyl rubber surround, bass response to 65 Hz (−10 dB)
• 0.75" Silk Dome Tweeter: Clean high-frequency reproduction with 5.0 kHz crossover
• Software-Controlled Zoning: Zone configuration and routing via STNet Control Center software
• SpeedWing™ Mounting: Accommodates ceiling thicknesses 0.035" to 2.38" — constant-tension fixed-wing design
• Seamless White Grille: Paintable steel grille with friction-fit, standard flange profile
• Certifications: CE, UL2043, UL60065, ETL-C/US

Typical Applications

The IPD4-CM52-BGM-II is ideal for commercial background music systems in retail stores, restaurants, hotels, corporate offices, and healthcare facilities where network-based audio distribution, software control, and simplified cabling are priorities. A single PoE network run can feed a four-speaker cluster covering a significant area, dramatically reducing installation labor. Contact Creation Networks for STNet system design support and volume pricing.

Technical Specifications

Frequently Asked Questions

How many speakers can one IPD4-CM52-BGM-II unit support?

One IPD4-CM52-BGM-II (the master/hub unit) can power and connect up to three additional standard CM52-BGM speakers, creating a four-speaker cluster from a single PoE network connection.

Is this speaker compatible with PoE++?

No. The IPD4-CM52-BGM-II is not compatible with PoE++. Maximum power input is 30 W via standard PoE/PoE+, or up to 40 W when connected to a SoundTube STNet Switch II.

Can the speaker be used without a PoE switch?

Yes. The speaker can also be powered via a 24 V DC barrel connector for installations where a PoE switch is not available.

What is Dante® and why does it matter?

Dante is an industry-standard IP audio networking protocol that carries low-latency digital audio over standard Ethernet infrastructure. It enables software-based routing, zoning, and control across large installations.

What software is used to configure the speaker?

Configuration and zoning are accomplished via the SoundTube STNet Control Center software.

Are Products IPD4-CM52-BGM-II and IPD4-CM52-BGM-II-WH the same?

Yes. Both SKUs refer to the same white speaker. They share identical specifications, UPC (748252172877), and price. Both are available from Creation Networks.

What optional accessories are available?

Optional accessories include a pre-construction bracket (AC-CMEZ6/8-PCB) and a black grille (GRL-CM-BGM-II-BK).

Is an optional black grille available?

Yes. Order the optional GRL-CM-BGM-II-BK black grille to achieve a black finish; the speaker body ships in white.
