Soundcraft Ui24R – 24-Channel Rack-Mount Digital Mixer with Wireless Control and Multitrack Recording

Product Overview

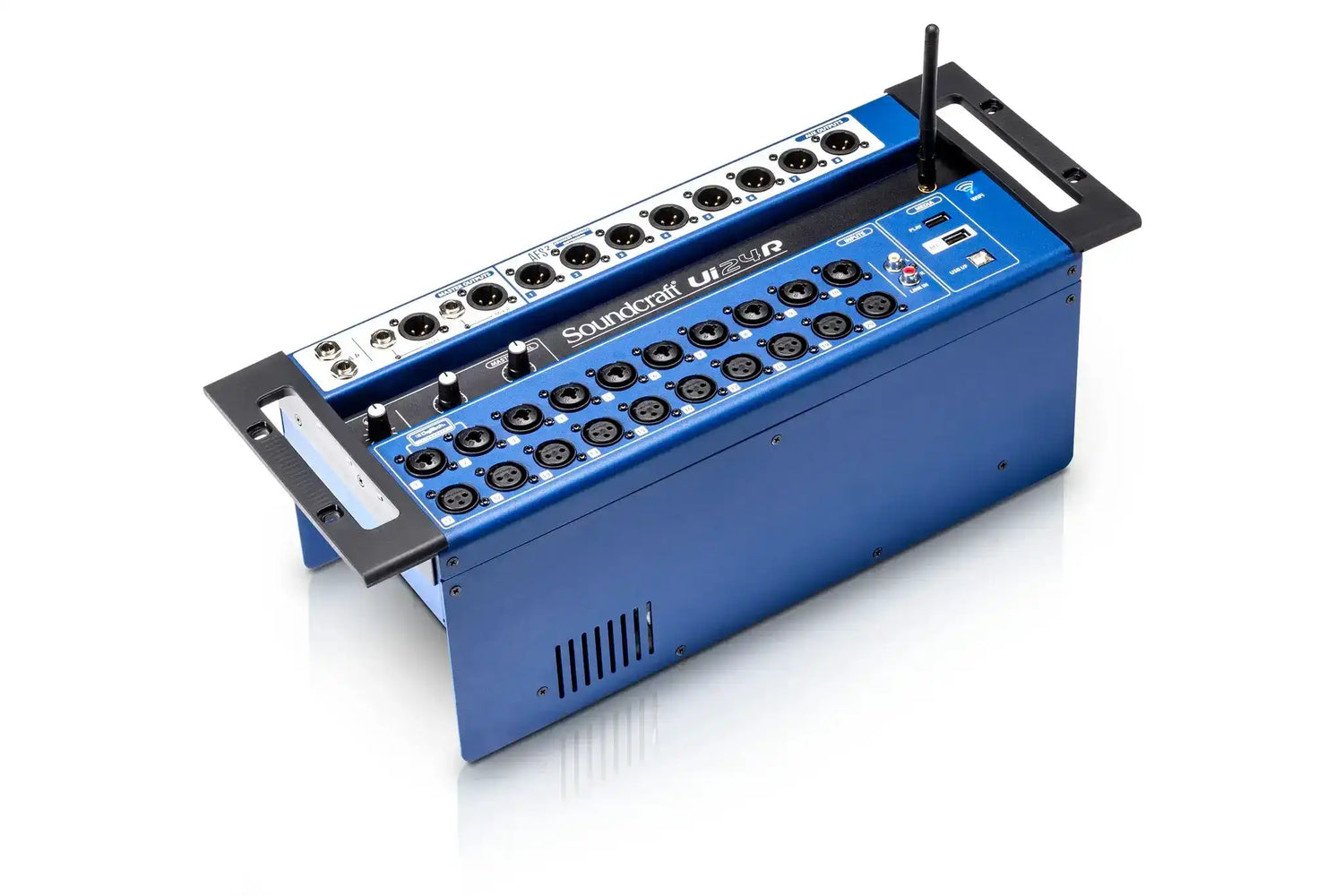

The Soundcraft Ui24R is a 4U rack-mount digital mixing and multitrack recording system controlled entirely via web browser — no dedicated control surface required. It supports up to 10 simultaneous control devices via built-in dual-band Wi-Fi or Ethernet, enabling engineers and performers to mix from iOS, Android, Windows, Mac, or Linux without installing any additional software. With 20 Studer-designed preamps, Lexicon reverb and delay, dbx compression and AFS2 automatic feedback suppression, and dual-path USB multitrack recording, the Ui24R is a capable solution for installed AV, houses of worship, live performance, and broadcast recording workflows. It is currently on sale at Creation Networks.

Product Description

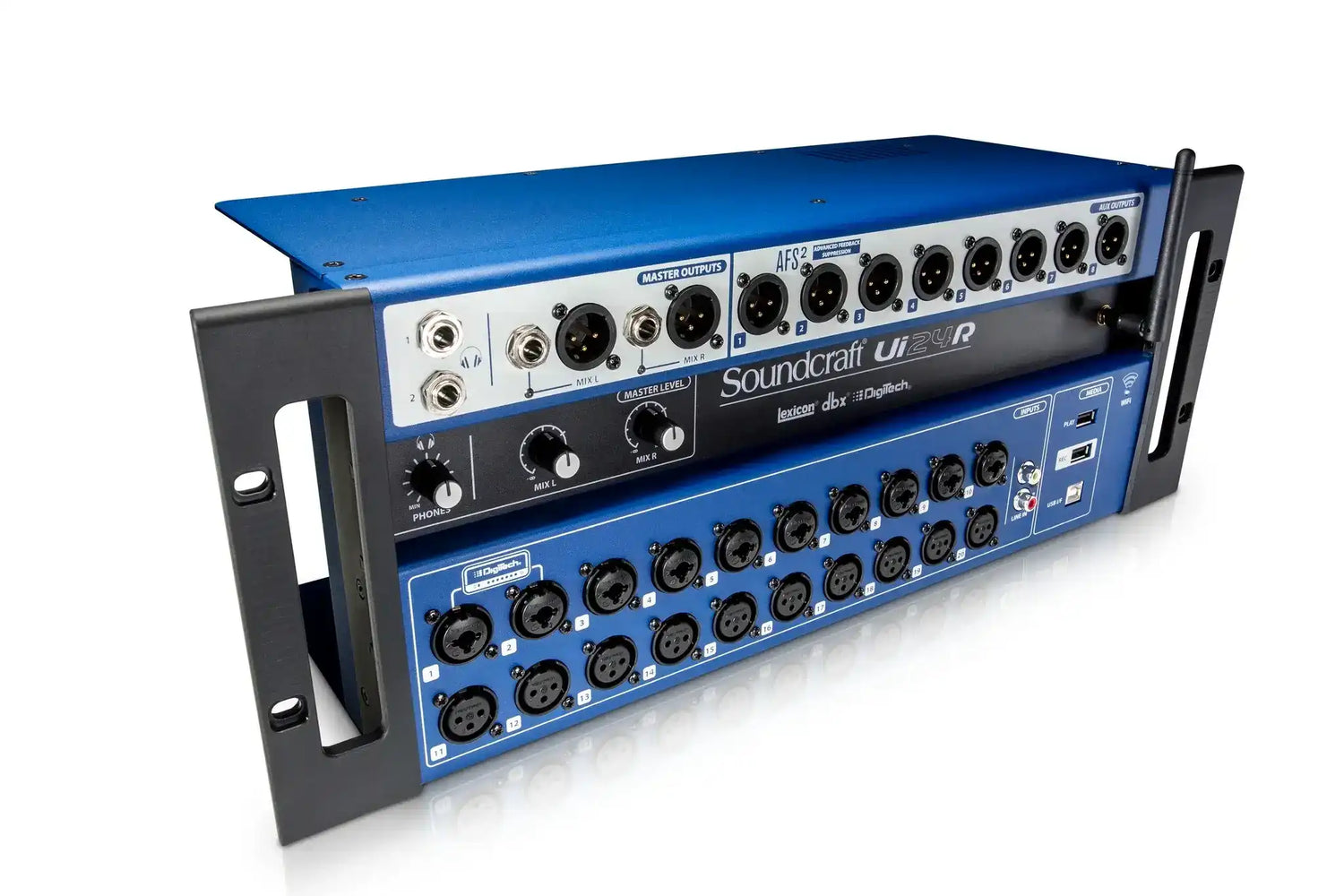

The Soundcraft Ui24R provides 24 simultaneous input channels: 10 combo XLR/quarter-inch TRS inputs, 10 XLR inputs, 2 line-level inputs, and 2 channels of digital USB playback. All 20 analog inputs use Studer-designed preamps, delivering the same preamp quality found in Studer’s broadcast and recording consoles. The system is controlled through a web-based mixing application that runs in any browser without app installation, making it compatible with virtually any current device.

Each input channel provides 4-band parametric EQ, a high-pass filter, compressor, de-esser, and noise gate. All output buses carry a 31-band graphic EQ, noise gate, compressor, and dbx AFS2 automatic feedback suppression — a feature especially useful for monitor outputs in live performance environments. A real-time frequency analyzer (RTA) is available on both inputs and outputs for system tuning.

The dual-path multitrack recording system captures all 22 inputs plus the stereo mix simultaneously to both a connected USB storage drive and a Mac or PC via USB, providing redundancy for mission-critical recordings. The multi-channel USB audio interface also integrates the Ui24R into studio DAW workflows. Firmware v3.0 added Cascading support, enabling two Ui24R units to connect via Ethernet with a 32x32 bi-directional audio bus — doubling mic inputs or running two fully independent mixes (e.g., FOH and monitors).

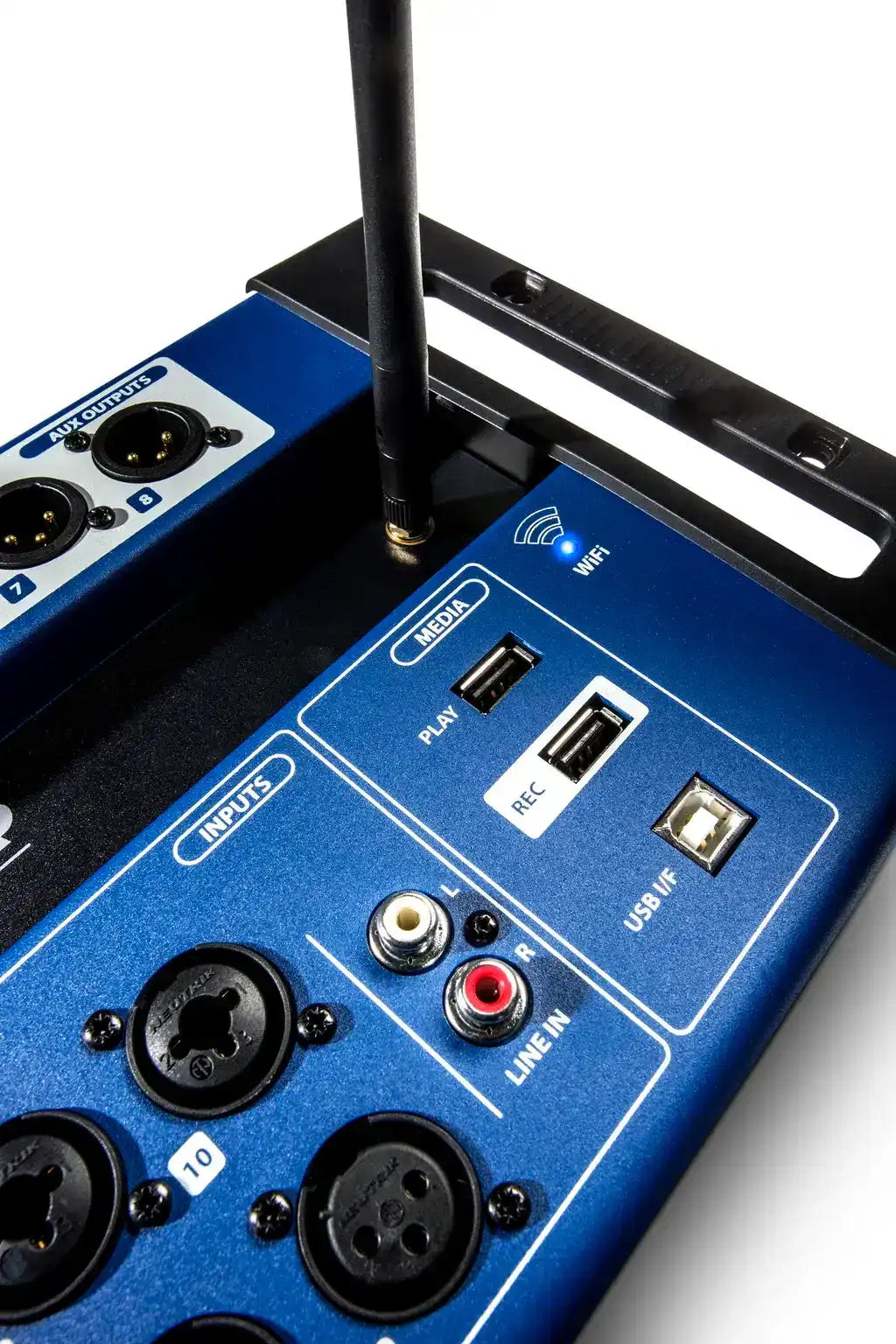

The built-in dual-band Wi-Fi operates as a standalone access point, providing reliable connections to up to 10 devices without requiring an external router. This is critical in venues where house network reliability cannot be guaranteed. The Ui24R is compatible with the Harman Connected PA application for broader system integration. Two channels of DigiTech guitar amp modeling are included for direct guitar input with amp simulation. An included download of Ableton Live 10 Lite provides a starter DAW for recording and production workflows.

Key Features

• Web App Control — No Software Install Required — Full mixing control from any iOS, Android, Windows, Mac, or Linux browser without downloading apps.
• Built-In Dual-Band Wi-Fi — Standalone access point supporting up to 10 simultaneous control devices without an external router.
• 20 Studer-Designed Preamps — Broadcast-grade preamp quality for live performance and multitrack recording.
• 24 Input Channels — 10 combo XLR/TRS, 10 XLR, 2 line-level, and 2 USB digital playback channels.
• Dual-Path Multitrack Recording — Simultaneous recording of all 24 inputs to USB storage drive and Mac/PC — redundant capture.
• dbx AFS2 Automatic Feedback Suppression — Available on all monitor outputs for reliable feedback control in live applications.
• Lexicon Reverb, Chorus, and Delay — Industry-standard FX processing across all channels and buses.
• dbx Compression — dbx dynamics processing on input channels and output buses.
• 31-Band Graphic EQ on All Outputs — Full GEQ on every output bus for system tuning and feedback management.
• Cascading (v3.0 Firmware) — Connect two Ui24R units via Ethernet for 32x32 bi-directional audio and dual independent mixes.
• 4U Rack-Mount Design — Compact rack-mount form factor for fixed installation and portable rack cases.
• DigiTech Guitar Amp Modeling — 2 channels of amp simulation for direct guitar input without a physical amplifier.

Typical Applications

• House of worship — installed rack-mount mixing with wireless control from any position in the room
• Multi-purpose room — flexible mixing system with no dedicated operator position required
• Auditorium — live performance with monitor mixing and multitrack recording
• Broadcast studio — multitrack USB recording for broadcast, podcast, and streaming workflows
• Conference room / boardroom — rack-mounted audio system with web-based control for non-technical operators
• All-hands room — installed mixing with wireless control for presentations and live events

Technical Specifications

Frequently Asked Questions

Does the Ui24R require a dedicated computer or tablet to operate?

No. The Ui24R runs a web-based mixing application served directly from the unit itself. Any device with a current web browser — tablet, phone, laptop, or desktop — on iOS, Android, Windows, Mac, or Linux can connect and control the mixer without installing software.

Can the Ui24R operate without an external Wi-Fi router?

Yes. The built-in dual-band Wi-Fi acts as a standalone access point, supporting up to 10 devices. This is important in venues where relying on house Wi-Fi infrastructure introduces reliability risk.

How does the dual-path recording work?

The Ui24R records all 24 inputs simultaneously to both a USB storage drive connected to the unit and to a Mac or PC via the USB audio interface. The two paths are independent, providing redundancy if one recording fails.

What is Cascading and when would I use it?

Cascading (available in firmware v3.0 and later) connects two Ui24R units via Ethernet with a 32x32 bidirectional audio bus. Common uses include doubling the mic input count for larger productions or running two fully independent mixes — for example, FOH and monitor mixing — from separate Ui24R units.

Is the Ui24R suitable for a fixed AV installation in a house of worship?

Yes. The 4U rack-mount form factor installs cleanly in a standard equipment rack. Wireless control from any browser means the audio operator can mix from the front of the room or the stage without a fixed console position. The dbx AFS2 feedback suppression on monitor outputs is particularly useful for worship environments.

Can multiple engineers control the Ui24R simultaneously?

Yes. Up to 10 devices can connect and control the mixer at the same time. This allows a FOH engineer, monitor engineer, and performers to each have their own control view without interfering with each other’s mix.

What DAW software works with the Ui24R USB interface?

The Ui24R is compatible with any Mac or PC DAW that accepts a multi-channel USB audio interface. An Ableton Live 10 Lite license is included as a download. For other DAWs, the standard multi-channel USB driver applies.

Where can I purchase the Soundcraft Ui24R?

The Ui24R is available from Creation Networks, currently on sale with savings off the regular retail price. Contact Creation Networks for installation project pricing.
