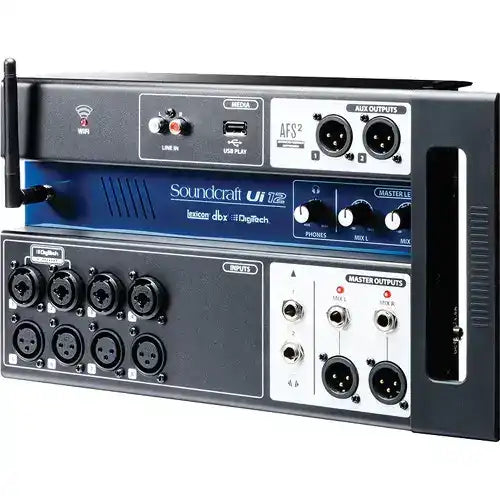

Soundcraft Ui12 – 12-Input Remote-Controlled Digital Mixer

Product Overview

The Soundcraft Ui12 is a 12-input remote-controlled digital mixer that operates entirely through a web browser — no physical faders, no proprietary app required. Any iOS, Android, Windows, Mac OS, or Linux device connected over Wi-Fi or Ethernet can serve as the mixing surface, making the Ui12 a practical solution for conference rooms, boardrooms, small houses of worship, and corporate meeting spaces where traditional console placement is not ideal. Like its larger sibling the Ui16, it carries HARMAN's integrated signal processing from dbx, DigiTech, and Lexicon. The compact stagebox-format chassis measures 320mm in length, making it easy to mount at stage level or within a rack.

Product Description

The Ui12 provides 4 XLR combo mic/line inputs, 4 XLR mic inputs, and 2 Hi-Z instrument inputs as its core source connections. A stereo RCA line input and 2-channel USB media player expand the input complement. On the output side, the Ui12 has 2 balanced XLR aux outputs, balanced stereo XLR and 1/4" main outputs, and a 1/4" headphone output. All outputs include 31-band graphic EQ, compressor, and noise gate.

Input channel processing includes 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate. Three dedicated Lexicon FX buses handle reverb, delay, and chorus effects. The dbx AFS2 automatic feedback suppression system works in real time, and DigiTech amp modeling is available for instrument inputs. All processing parameters are controlled and recalled through the web interface with no physical controls required.

Up to 10 control devices can connect simultaneously, allowing performers to manage their own monitor mixes independently while an engineer manages the main mix. The Show/Snapshot recall system saves complete mixer states for quick transitions between events or presenters. Security lockout restricts device access to specific mixes or functions, which is useful in shared corporate and educational environments. Two-channel USB audio supports MP3, WAV, and AIFF playback and direct-to-USB recording. The Ui12 includes Ableton Live Lite. Available from Creation Networks.

Key Features

• Web App Control (No Physical Faders) — Browser-based mixing via any Wi-Fi or Ethernet-connected device.
• Cross-Platform Compatibility — iOS, Android, Windows, Mac OS, and Linux all supported.
• Up to 10 Simultaneous Control Devices — Independent monitor mixes for multiple operators at the same time.
• 12 Input Channels — 4 XLR combo + 4 XLR mic + 2 Hi-Z + stereo RCA + USB playback.
• 2 Balanced XLR Aux Outputs — Flexible monitor and zone distribution.
• HARMAN Signal Processing — dbx AFS2 feedback suppression, DigiTech amp modeling, and 3 Lexicon FX buses.
• 4-Band Parametric EQ per Input — With high-pass filter, compressor, de-esser, and noise gate on every channel.
• 31-Band Graphic EQ on All Outputs — With noise gate and compressor on every output bus.
• Show/Snapshot Recall — Full mixer state storage for quick scene transitions.
• Security Lockout — Restrict access to specific functions and mixes per device.
• 2-Channel USB Audio Playback and Recording — MP3, WAV, and AIFF support.
• Real-Time Frequency Analyzer (RTA) — On inputs and outputs for system tuning.

Typical Applications

• Boardroom
• Conference Room
• House of Worship
• Government Space
• Corporate Meeting Space
• Training Room

Technical Specifications

Frequently Asked Questions

Does the Soundcraft Ui12 require a dedicated app?

No. The Ui12 uses a standard web browser for control. No proprietary app download is required on iOS, Android, Windows, Mac OS, or Linux devices.

What is the difference between the Ui12 and Ui16?

The Ui12 has 12 inputs (vs. 16 on the Ui16) and 2 XLR aux outputs (vs. 4 on the Ui16). Both share the same web-app control platform, processing, and form factor design.

Can the Ui12 be used in a permanent conference room installation?

Yes. The Ethernet control interface, security lockout, Show/Snapshot recall, and compact stagebox chassis make the Ui12 suitable for permanently installed AV environments.

How many people can mix on the Ui12 at once?

Up to 10 devices can connect and control the Ui12 simultaneously, allowing performers to access independent monitor mixes while a separate engineer manages the main output.

Does the Ui12 support phantom power?

Yes. Phantom power on the Ui12 is fully recallable and controlled remotely per channel through the web interface.
