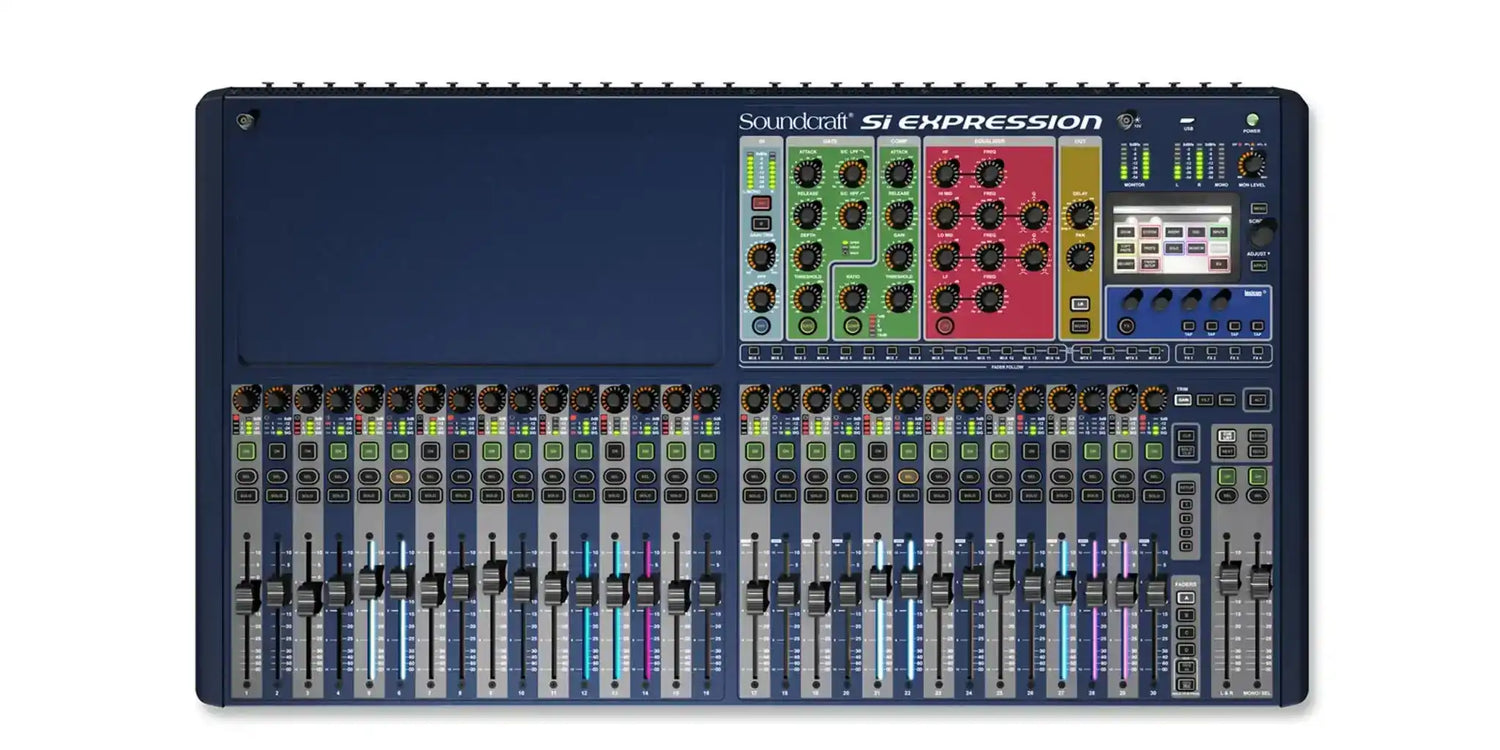

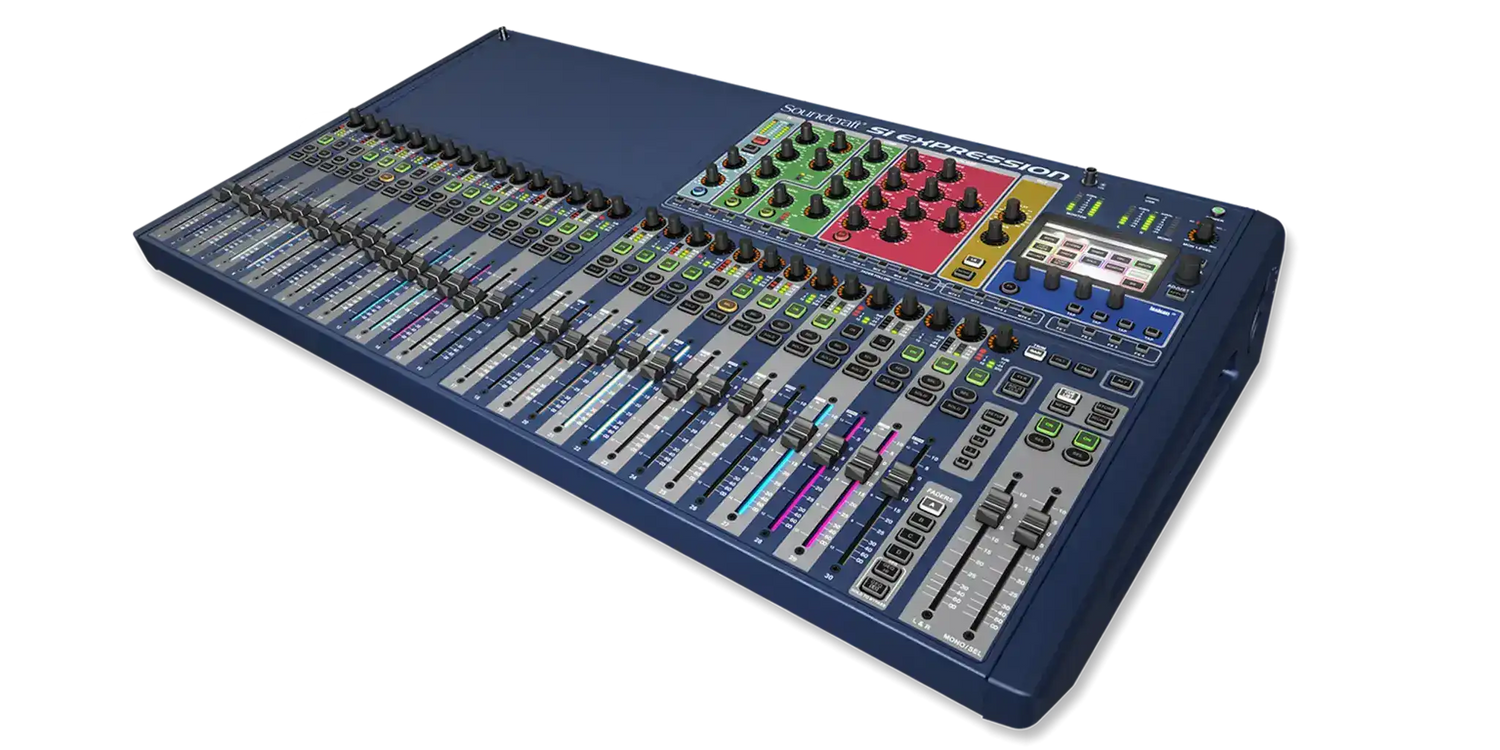

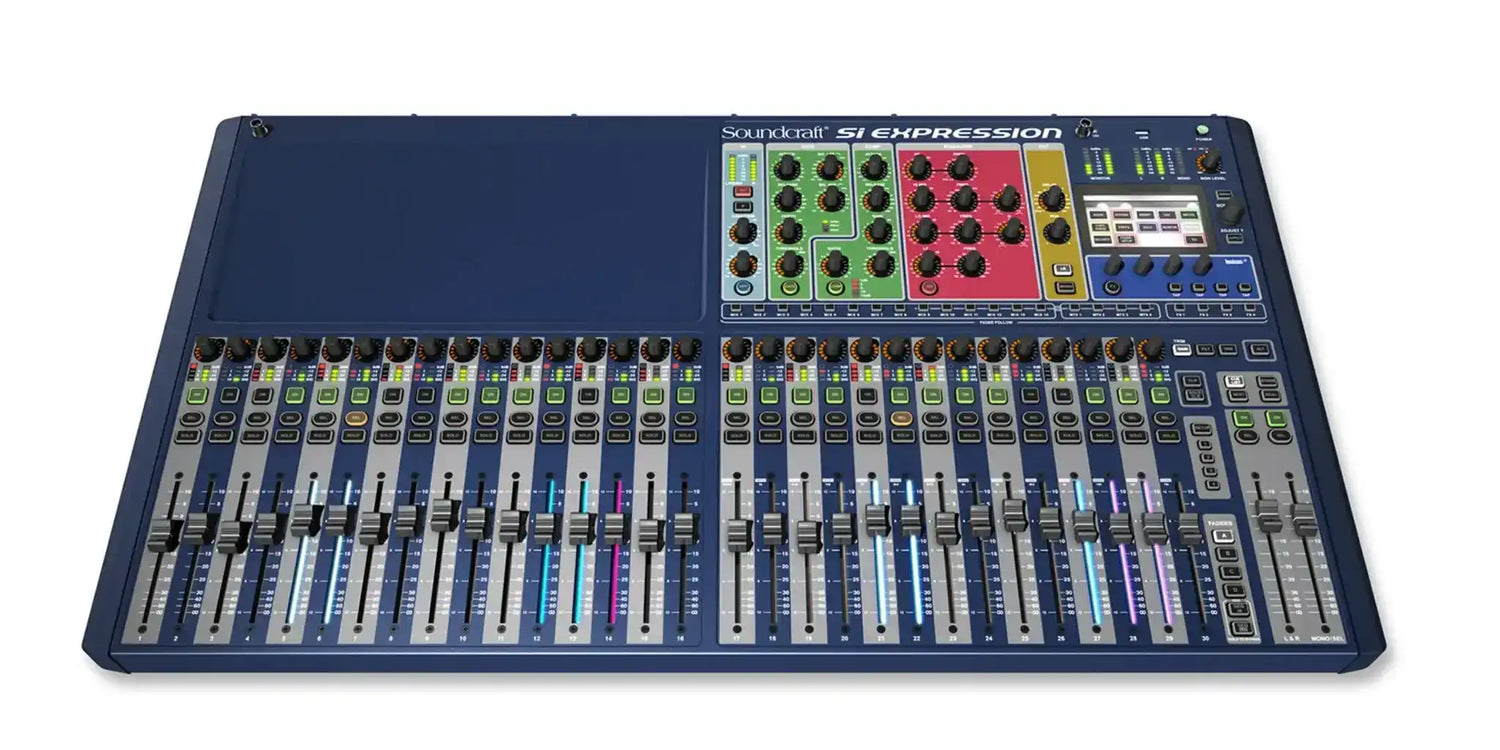

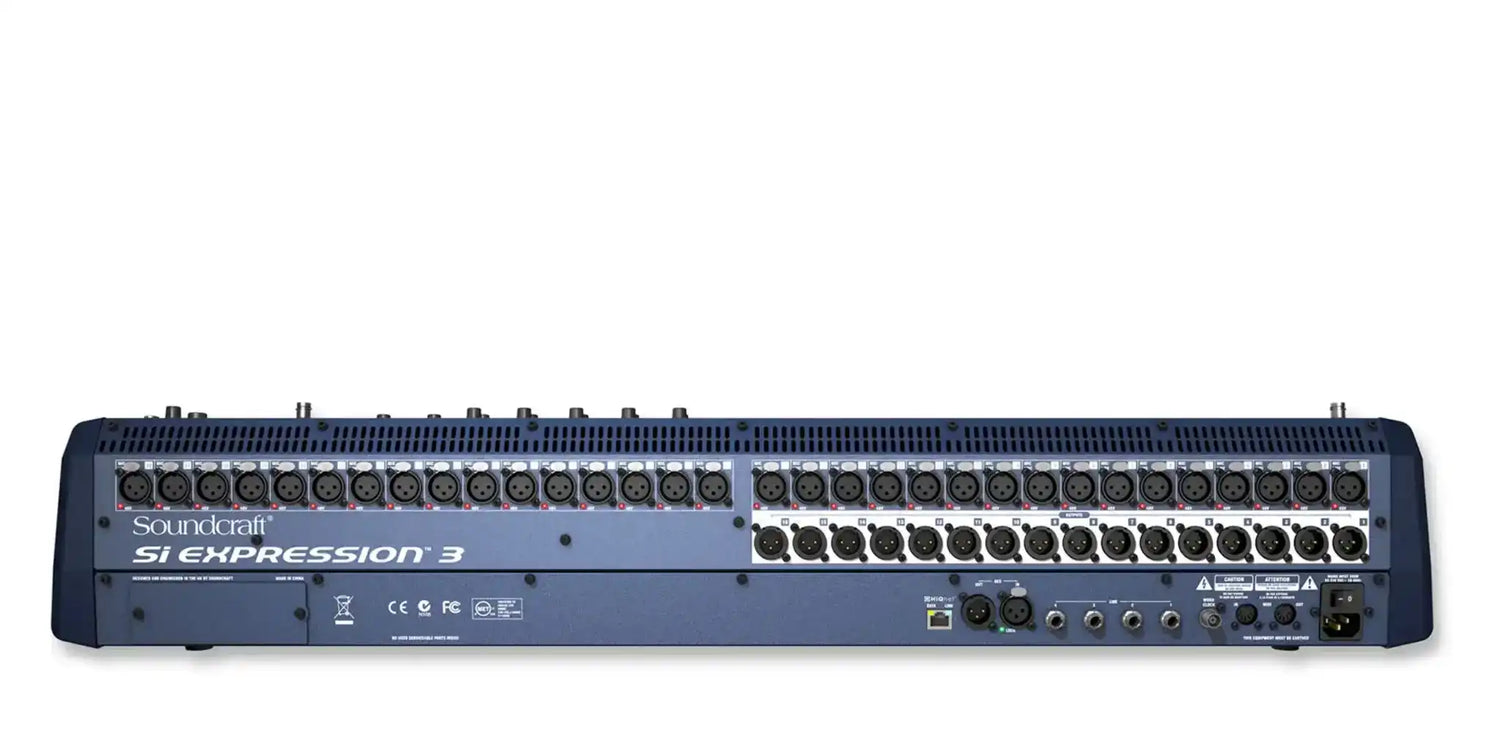

Soundcraft Si Expression 3 – 32-Input Professional Digital Console

Product Overview

The Soundcraft Si Expression 3 is a professional digital mixing console designed for live sound engineers who need large-format mixing capability in a mid-size footprint. With 32 recallable mic preamps, 66 inputs to mix, and a 64x64 expansion slot via ViSi Connect, it is a strong fit for houses of worship, touring productions, and fixed theater installations. The Si Expression 3 delivers BSS Audio processing on every bus, four stereo Lexicon FX engines, and full Harman HiQnet integration — making it one of the most capable digital consoles in its price class. It is currently on sale at Creation Networks, offering significant savings off the regular retail price.

Product Description

The Soundcraft Si Expression 3 is the largest model in the Si Expression series, featuring 30+2 motorized faders and 32 local mic/line inputs with recallable preamps. Every input processing channel includes a high-pass filter, input delay, noise gate, compressor, and four-band parametric EQ — all available simultaneously with no resource pooling. Each bus mix carries a BSS graphic EQ, compressor, four-band EQ, and delay, providing complete per-bus processing at all times.

The console offers 14 configurable aux/group mixes (up to 14 mono or 8 mono plus 6 stereo), 4 matrix mixes, 4 dedicated FX buses, and LR/Center main buses. Four stereo Lexicon FX processors based on the MX400 platform provide hardware-based reverb, delay, and modulation without consuming any of the channel DSP budget.

Soundcraft FaderGlow illuminates each fader slot in color-coded fashion to indicate function — FX, stereo, linked mono, GEQ, post-fade aux, or pre-fade aux — eliminating operator confusion during fast-paced events. The TOTEM (One Touch Easy Mix) system lets engineers switch to any aux, FX, or matrix bus mix on the faders with a single button press.

Expansion is handled through a single ViSi Connect option card slot supporting 64x64 digital I/O. Compatible cards include MADI (CAT5 or optical), Dante, BSS BLU Link, AVIOM A-Net, and CobraNet, among others. The MADI card also enables connection to Soundcraft and Studer stageboxes, increasing the total channel count rather than just adding I/O routing options. Harman HiQnet integration supports system-level control alongside other HiQnet-enabled devices. The console runs the EMMA DSP engine, the same platform used in higher-end Soundcraft Si series consoles.

Key Features

• 32 Recallable Mic Preamps — Local XLR inputs with motorized fader recall and gain staging support.
• 66 Inputs to Mix — Accommodates 32 mic inputs, 4 line inputs, and 4 stereo FX returns across assignable fader layers.
• BSS Graphic EQ on Every Bus — Full BSS GEQ available on all aux, group, matrix, and main buses — no pool to exhaust.
• 4 Stereo Lexicon FX Engines — Hardware-based MX400-derived processors for reverb, delay, and modulation; independent of channel DSP.
• Soundcraft FaderGlow — Color-illuminated fader slots provide at-a-glance function identification across all four fader layers.
• TOTEM One-Touch Bus Selection — Instant reconfiguration to any aux, FX, or matrix bus mix directly on the fader surface.
• ViSi Connect Expansion Slot — Single 64x64 option card slot supporting Dante, MADI, BLU Link, AVIOM, CobraNet, and AES formats.
• Motorized Faders — 30+2 motorized faders with four assignable fader layers for flexible channel layout.
• Harman HiQnet Integration — Network-based system control compatible with the broader Harman Professional ecosystem.
• D.O.G.S. (Direct Out Gain Stabiliser) — Prevents mic gain adjustments from affecting direct output levels, critical in multi-console or recording scenarios.
• Full Channel Processing Always On — HPF, gate, compressor, 4-band EQ, delay, and insert available on every input channel without assignment.
• Security Lockout — Console or per-element locking with user profile management.

Typical Applications

• House of worship — main PA and monitor mixing with stagebox integration
• Auditorium — theatrical productions and multi-microphone speech reinforcement
• Multi-purpose room — conference, performance, and event audio in shared spaces
• Touring — compact touring productions requiring expandable I/O and fast recall
• Broadcast studio — multitrack feed via MADI or Dante option card to recording systems

Technical Specifications

Frequently Asked Questions

How does the Si Expression 3 differ from the Si Expression 2?

The Si Expression 3 adds 8 additional local mic preamps (32 vs. 24) and 8 more motorized faders (30+2 vs. 22+2). Both models share the same feature set, bus structure, and expansion options.

Can the Si Expression 3 connect to Dante networks?

Yes. The ViSi Connect expansion slot accepts a Dante option card, enabling 64x64 Dante audio over IP. This is sold separately as a ViSi Connect option card.

Does the console support multi-track recording?

With a MADI option card installed, the Si Expression 3 can feed a multi-track recording system or a plug-in platform such as the Soundcraft Realtime Rack via MADI.

What is Soundcraft FaderGlow and why does it matter?

FaderGlow illuminates each fader slot in a specific color based on its current function (e.g., pre-fade aux, post-fade aux, FX, GEQ). This significantly reduces operator error when switching between fader layers in low-light environments.

Is the BSS GEQ available on every bus?

Yes. Every aux, group, matrix, and main bus has a dedicated BSS graphic EQ permanently assigned — there is no shared pool of GEQ resources to manage.

Can two Si Expression 3 consoles share a stagebox?

Yes. The D.O.G.S. (Direct Out Gain Stabiliser) feature prevents mic gain changes on one console from affecting direct output levels sent to a shared stagebox or recording system, making dual-console setups practical.

What expansion cards are compatible with the ViSi Connect slot?

Compatible cards include MADI USB Combo, optical MADI, CAT5 MADI, Dante, BSS BLU Link, AVIOM A-Net, CobraNet, AES/EBU, and others. Only one card can be installed at a time.

Where can I purchase the Soundcraft Si Expression 3?

The Si Expression 3 is available from Creation Networks, an authorized commercial AV reseller. Current pricing reflects a sale discount from the regular retail price.
