Product Overview

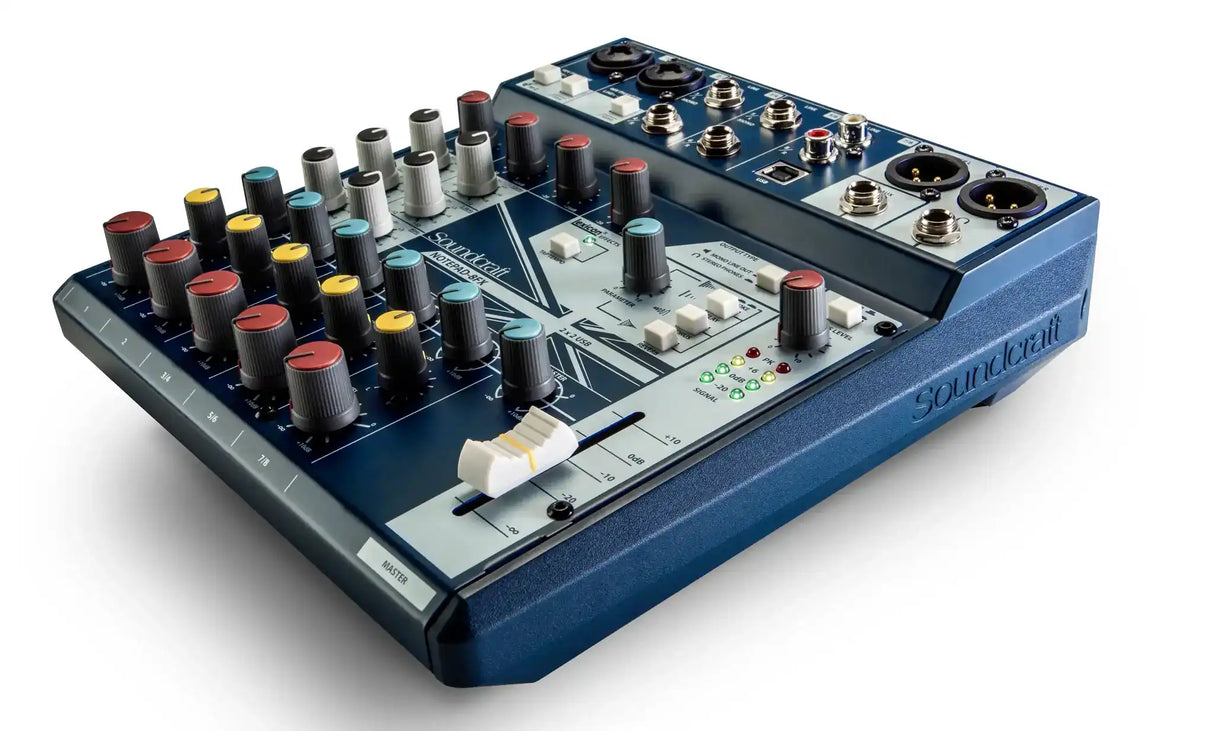

The Soundcraft Notepad-8FX is an 8-channel compact analog mixer with a built-in USB stereo audio interface and Lexicon digital effects. It is designed for home studios, podcasters, content creators, and small-venue live sound applications that need straightforward microphone mixing, onboard reverb and delay, and direct-to-computer recording in a single unit. The Notepad-8FX connects to Mac and PC via a standard USB cable and is bus-powered, requiring no external power adapter during computer-connected use.
Product Description
The Notepad-8FX provides two XLR/TRS combo inputs for microphones or line-level sources, one Hi-Z 1/4" input for direct guitar or bass connection, and two stereo 1/4" line input pairs. An RCA stereo input handles consumer playback sources, and USB audio return is directed to channels 7 and 8, integrating computer playback into the mix at a dedicated level. This makes it straightforward to combine microphone and instrument sources with a backing track from a computer, phone, or tablet.
The Lexicon effects section provides reverb, delay, and chorus programs, with a dedicated FX send per channel for independent effects level control. A single 1/4" auxiliary output routes signal to a monitor speaker or outboard processor. 48V phantom power is available on XLR-compatible inputs. Four-segment LED metering provides a quick output level reference on the master section. Available from Creation Networks.
Key Features
- 8-Channel Frame — 2 XLR/TRS combo, 1 Hi-Z, 2 stereo 1/4" line pairs, 1 RCA stereo, and USB return on channels 7/8.
- Lexicon Digital Effects — Onboard reverb, delay, and chorus effects.
- Stereo USB Audio Interface — Bus-powered, 2-channel USB recording and playback compatible with Mac and PC.
- USB Return on Channels 7/8 — Computer audio integrated into the mix at a dedicated level.
- Hi-Z Instrument Input (Channel 3) — Direct guitar and bass connection without a DI box.
- 48V Phantom Power — For condenser microphones on XLR-compatible inputs.
- 1 Auxiliary Output — 1/4" monitor send or outboard routing.
- RCA Stereo Input — Consumer playback device integration.
- 4-Segment LED Metering — Output level reference on the master section.
- Bus-Powered USB — No external power adapter required for computer-connected use.
Technical Specifications
| Specification | Value |
|---|---|
| Total Input Channels | 8 |
| Mic/Line Combo Inputs | 2 (XLR/TRS, channels 1–2) |
| Hi-Z Instrument Input | 1 (1/4", channel 3) |
| Stereo Line Inputs | 2 pairs (1/4", channels 4–5) |
| RCA Stereo Input | 1 stereo pair |
| USB Return | Directed to channels 7/8 |
| Effects Processor | Lexicon digital (reverb, delay, chorus) |
| Auxiliary Output | 1 x 1/4" |
| USB Audio | Stereo, bus-powered, Mac and PC compatible |
| Phantom Power | 48V on XLR-compatible inputs |
| Output Metering | 4-segment LED |
