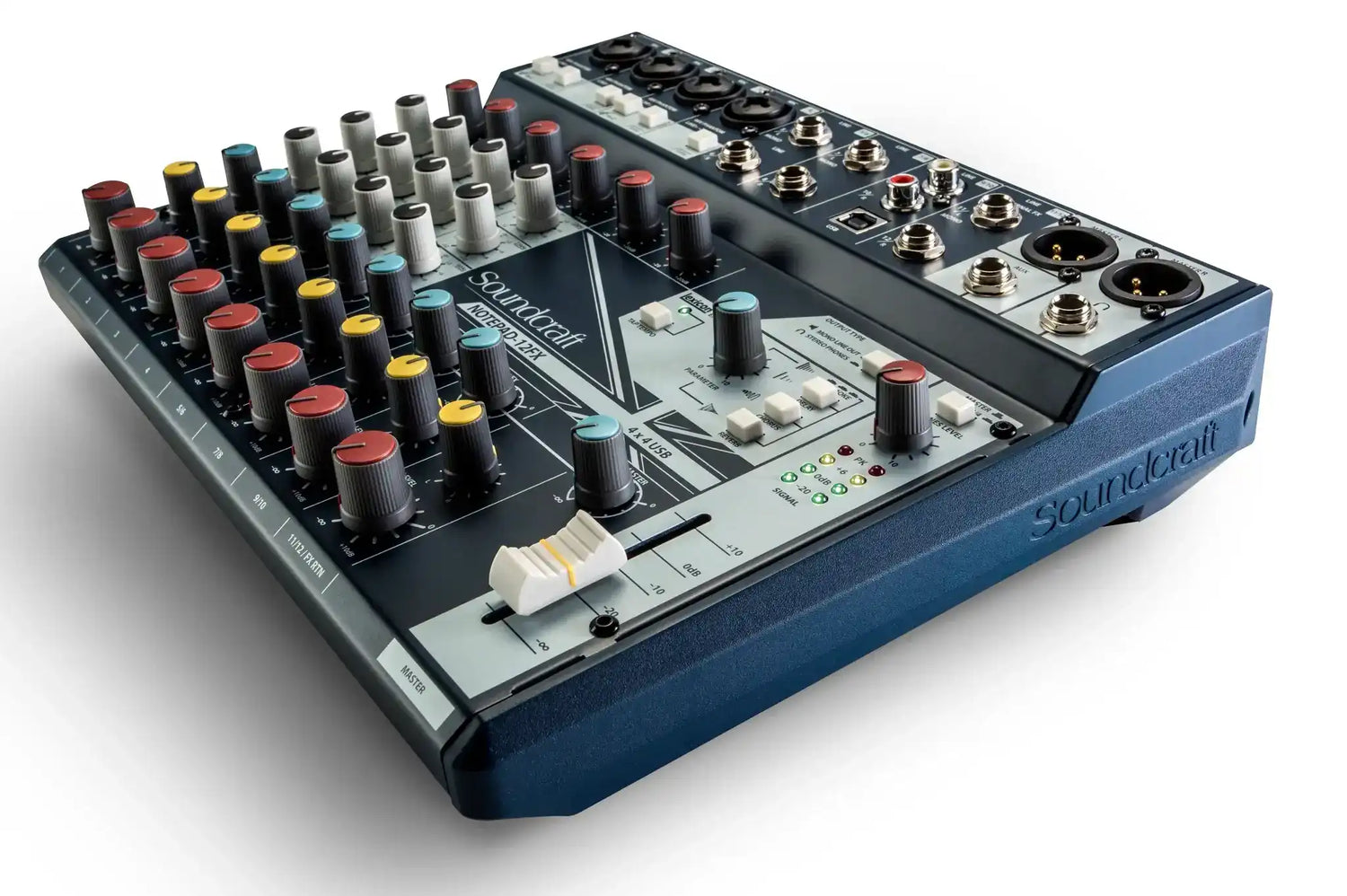

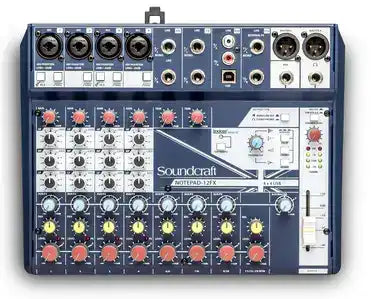

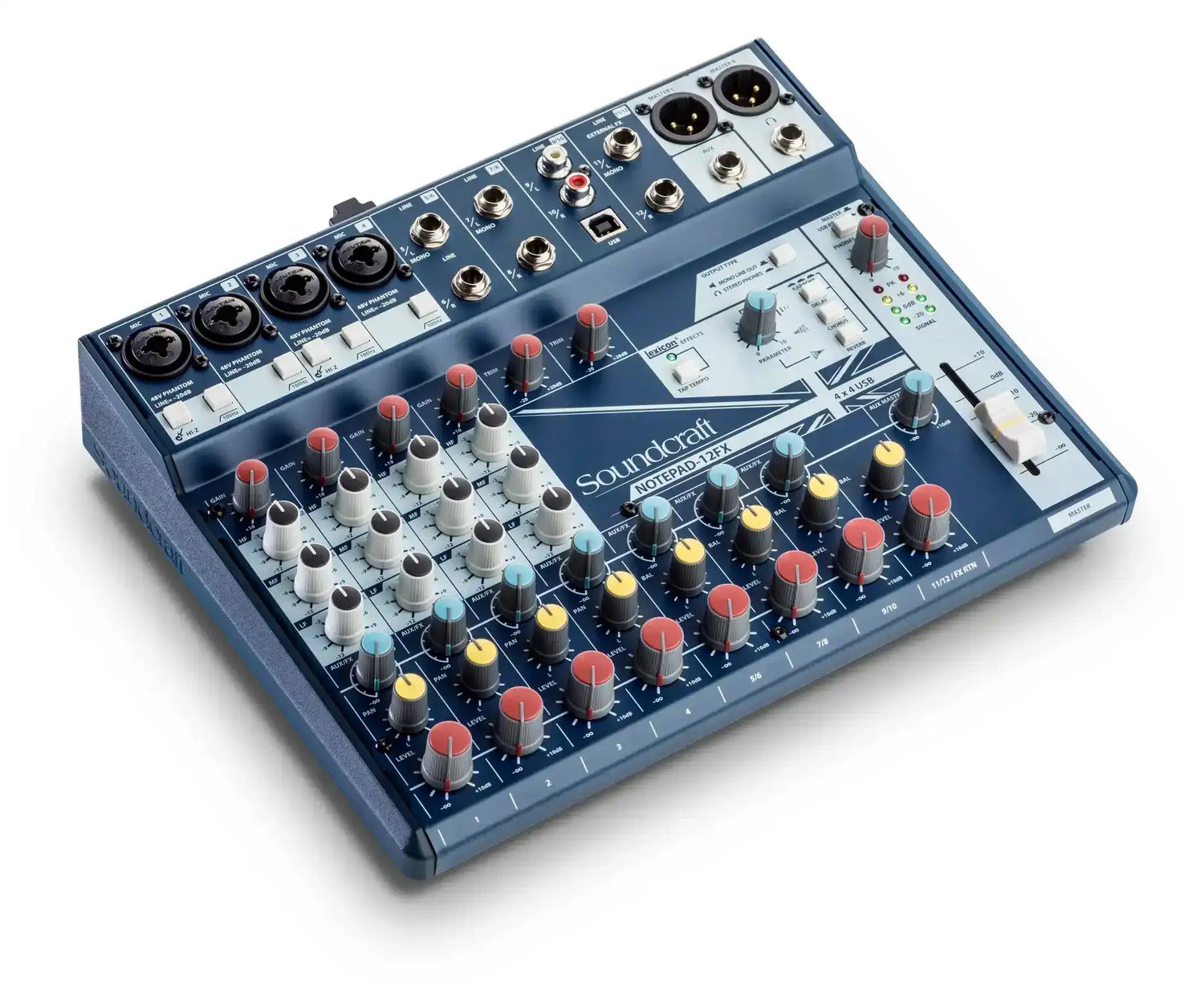

Soundcraft Notepad-12FX – 12-Channel Analog Mixer with USB and Lexicon Effects

Product Overview

The Soundcraft Notepad-12FX is a 12-channel compact analog mixer that combines a USB audio interface and Lexicon digital effects in a single compact chassis. Designed for home studios, content creators, podcasters, and small-venue live sound, it provides bus-powered USB stereo recording and playback alongside onboard reverb, delay, and chorus effects from the same Lexicon library used in professional studio gear. The Notepad-12FX bridges the gap between a simple mixing console and a basic USB audio interface, making it a cost-effective solution for users who need both functions without purchasing separate hardware.

Product Description

The Notepad-12FX accommodates a wide range of input sources. Four channels have XLR/TRS combo inputs for microphones or line-level sources. Two channels have dedicated Hi-Z 1/4" inputs for direct guitar or bass connection. Two stereo line input pairs accept balanced or unbalanced 1/4" sources, and an RCA stereo input handles consumer playback devices. USB audio return is summed to channels 9 and 10, allowing computer playback to be integrated directly into the mix at a dedicated level.

The Lexicon effects section provides reverb, delay, and chorus programs accessible via a dedicated effects send on each channel. A single 1/4" auxiliary output handles monitor sends or signal routing to outboard gear. Four-segment LED metering provides a quick visual reference for output level. All microphone-compatible inputs support 48V phantom power. USB audio is stereo and bus-powered — no external power supply is required for computer-connected use, making the Notepad-12FX a suitable travel and location-recording option. Available from Creation Networks.

Key Features

• 12-Channel Frame — 4 XLR/TRS combo, 2 Hi-Z, 2 stereo 1/4" line pairs, 1 RCA stereo, and USB return on channels 9/10.
• Lexicon Digital Effects — Onboard reverb, delay, and chorus from the same effects library used in professional studio processors.
• Stereo USB Audio Interface — Bus-powered, 2-channel USB recording and playback compatible with Mac and PC.
• USB Return on Channels 9/10 — Computer audio integrated into the mix at a dedicated level.
• Hi-Z Inputs (Channels 5 and 6) — Direct guitar and bass connection without a DI box.
• 48V Phantom Power — For condenser microphones on XLR-compatible inputs.
• 1 Auxiliary Output — 1/4" monitor send or outboard routing.
• RCA Stereo Input — Consumer playback device integration.
• 4-Segment LED Metering — Output level reference on the master section.
• Bus-Powered USB — No external power adapter required for computer-connected use.
