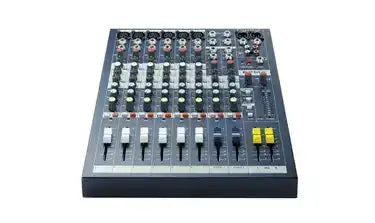

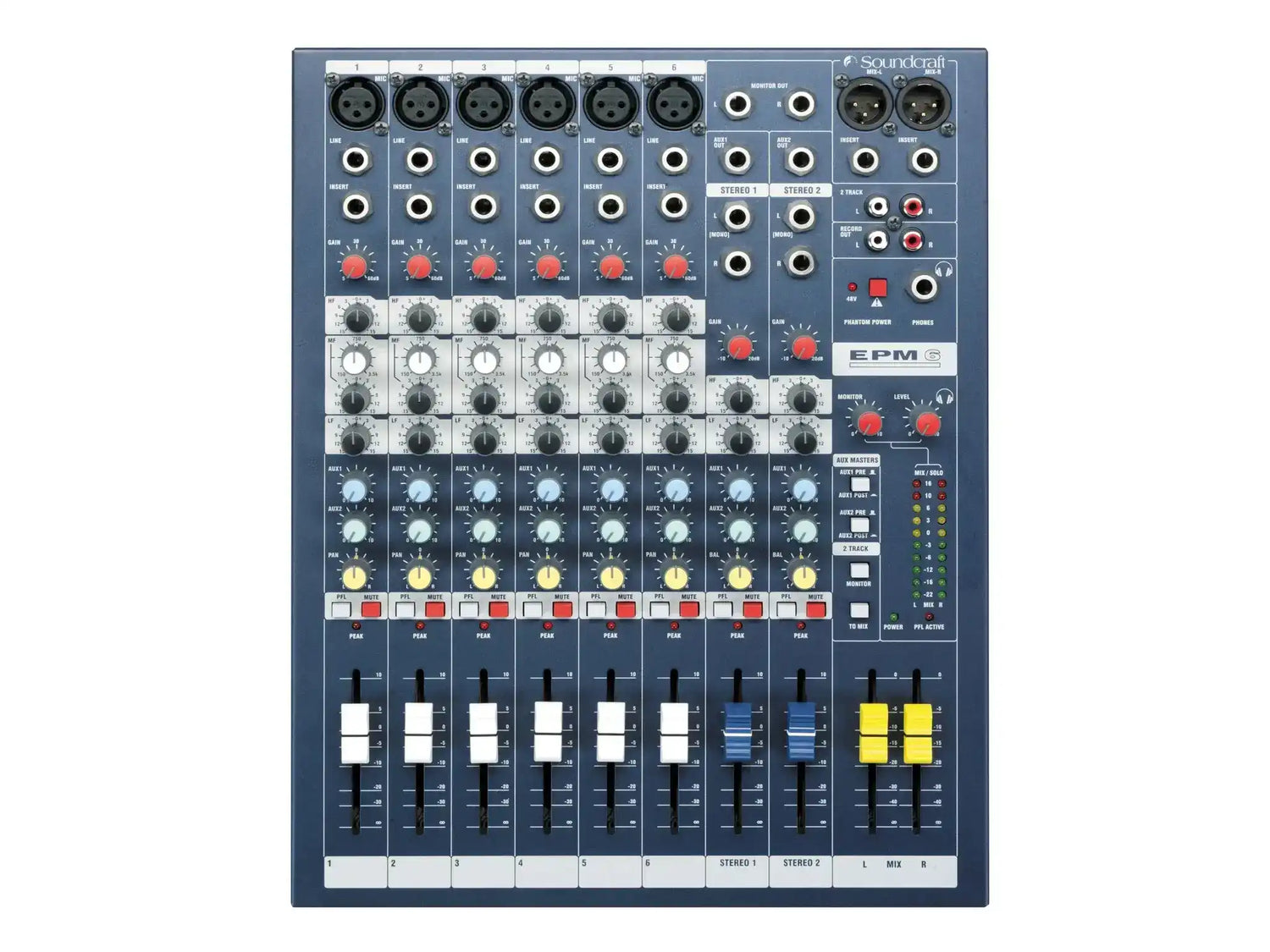

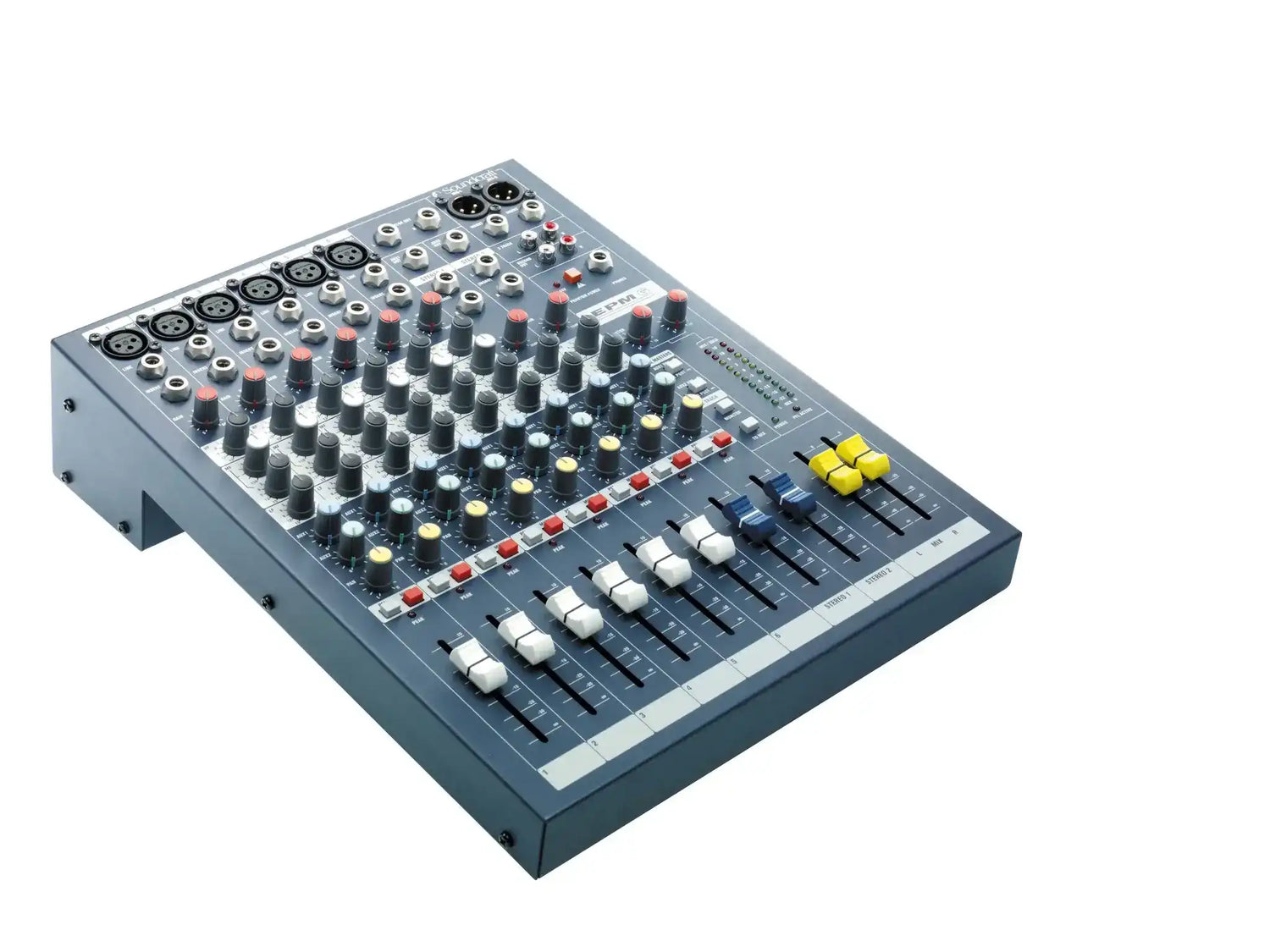

Soundcraft EPM6 – 6-Channel Analog Mixing Console

Product Overview

The Soundcraft EPM6 is a 6-channel analog mixing console that delivers the GB30 mic preamp quality of Soundcraft's professional console range in an entry-level, compact form. Designed for small live sound setups, portable PA systems, corporate presentations, and simple installed AV rooms, the EPM6 provides high-headroom, transparent amplification on every input at a price point suited to budget-conscious deployments. It is currently on sale at Creation Networks, making it an accessible starting point for AV integrators looking for reliable Soundcraft signal quality at minimal cost.

Product Description

The EPM6 has a 6+2 channel frame: 6 mono XLR/TRS combo inputs and 2 stereo line input channels. Each mono input uses the GB30 mic preamp, offering +22dB of headroom and a 55dB gain range. Channel processing on mono inputs includes a 3-band EQ with swept midrange, a TRS insert point for inline dynamics or EQ, two aux sends, and an FX send. The two auxiliary buses allow independent routing for monitor sends or outboard processing. 48V phantom power is available on XLR inputs for condenser microphone compatibility.

Direct outputs on mono input channels enable per-channel routing to a multitrack recorder or DAW without breaking the mix. Sub-group outputs provide additional grouping and routing flexibility. The master section includes ten-segment LED output metering, solo/PFL monitoring, and RCA phono stereo inputs and record outputs for consumer source integration. A headphone output with dedicated level control provides independent monitoring capability. The EPM6 is rack mountable for permanent installed AV deployments. Available from Creation Networks.

Key Features

• 6+2 Channel Frame — 6 mono XLR/TRS inputs and 2 stereo line input channels.
• GB30 Mic Preamp — High-headroom (+22dB) transparent design, 55dB gain range, from Soundcraft's professional console range.
• 48V Phantom Power — Switchable per input for condenser microphones.
• 3-Band EQ with Swept Mid — Tonal control on all mono input channels.
• 2 Auxiliary Buses — Independent monitor and effects send routing.
• TRS Insert Points on All Mono Inputs — Inline dynamics and EQ processing.
• Direct Outputs on Mono Inputs — Per-channel multitrack recording or DAW integration.
• Sub-Group Outputs — Additional routing flexibility.
• Solo/PFL Monitoring — Individual channel isolation during live events.
• Ten-Segment LED Output Metering — Visual output level monitoring.
• RCA Phono Stereo I/O — Consumer playback and record integration.
• Rack Mountable — Fits standard 19" racks.
• Headphone Output — Independent monitoring with level control.

Typical Applications

• Small House of Worship
• Music Rehearsal Room
• Corporate Presentation Room
• Small Multi-Purpose Room
• Portable PA System
• Live Event Recording

Technical Specifications

Frequently Asked Questions

Does the Soundcraft EPM6 have built-in effects?

No. The EPM6 is a clean analog mixing console without onboard effects processing. For a similar channel count with Lexicon reverb and delay, consider the Soundcraft Notepad-8FX.

Can the EPM6 record to a DAW?

Yes. The EPM6 has a direct output on each mono input channel for per-channel routing to a multitrack recorder or digital audio workstation.

How many aux sends does the EPM6 have?

Two auxiliary buses per channel, suitable for independent monitor mixes or outboard effects sends.

Is the EPM6 rack mountable?

Yes. The EPM6 supports standard 19" rack mounting.

What is the difference between the EPM6 and EPM8?

The EPM6 has 6 mono input channels while the EPM8 has 8. Both share the same GB30 preamp, 3-band swept mid EQ, 2 aux buses, direct outputs, and sub-group output architecture.
