Soundcraft EPM12 – 12-Channel Analog Mixing Console

Product Overview

The Soundcraft EPM12 is a 12-channel analog mixing console built for live sound, installation, and AV production applications that require clean, reliable signal handling without onboard effects. It features the GB30 mic preamp developed by Graham Blyth — the same design found across Soundcraft's professional LX7ii and GB Series consoles — delivering +22dB of headroom and 55dB of gain range. The EPM12 is well suited for houses of worship, corporate AV rooms, small performance venues, and any application where a high-quality analog mix console is needed without the additional cost of built-in digital effects. It is rack mountable and supports 48V phantom power on all XLR inputs.

Product Description

The EPM12 uses a 12+2 channel layout: 12 mono XLR/TRS combo inputs and 2 stereo line input channels, giving it enough inputs to handle most small-to-medium live sound and installed AV configurations. Each mono input channel carries 3-band EQ with swept midrange control, a TRS insert point for inline processing, two aux sends, and an FX send. The two aux buses allow independent monitor and effects send routing. Phantom power is switchable on a per-input basis.

The direct output on each mono input channel allows individual channel signals to be routed to a multitrack recorder or digital audio workstation without interrupting the mix. This capability makes the EPM12 a practical choice for live event recording and broadcast applications where simultaneous mixing and recording are required. The sub-group outputs allow additional mix routing and processing flexibility in larger installed systems.

The master section includes ten-segment LED output metering, solo/PFL monitoring, and a headphone output with independent level control for accurate monitoring. RCA phono stereo inputs and record outputs integrate consumer playback and recording sources. The EPM12 is rack-mountable, making it suitable for permanent installed AV deployments in addition to portable live event use. Available from Creation Networks, the EPM12 represents a straightforward, professional analog mixing option for AV integrators.

Key Features

• 12+2 Channel Frame — 12 mono XLR/TRS inputs and 2 stereo line input channels.
• GB30 Mic Preamp — High-headroom (+22dB) transparent design from Soundcraft's professional console range, 55dB gain range.
• 48V Phantom Power — Switchable per input for condenser microphones.
• 3-Band EQ with Swept Mid — Precise tonal control on all mono input channels.
• 2 Auxiliary Buses — Independent monitor and effects send routing.
• TRS Insert Points on All Mono Inputs — Inline dynamics and EQ processing without signal interruption.
• Direct Outputs on Mono Inputs — Per-channel multitrack recording or DAW integration.
• Sub-Group Outputs — Additional routing flexibility for larger installed systems.
• Solo/PFL Monitoring — Individual channel isolation for troubleshooting during live events.
• Ten-Segment LED Output Metering — Visual output level monitoring on the master section.
• RCA Phono Stereo I/O — Consumer playback and record integration.

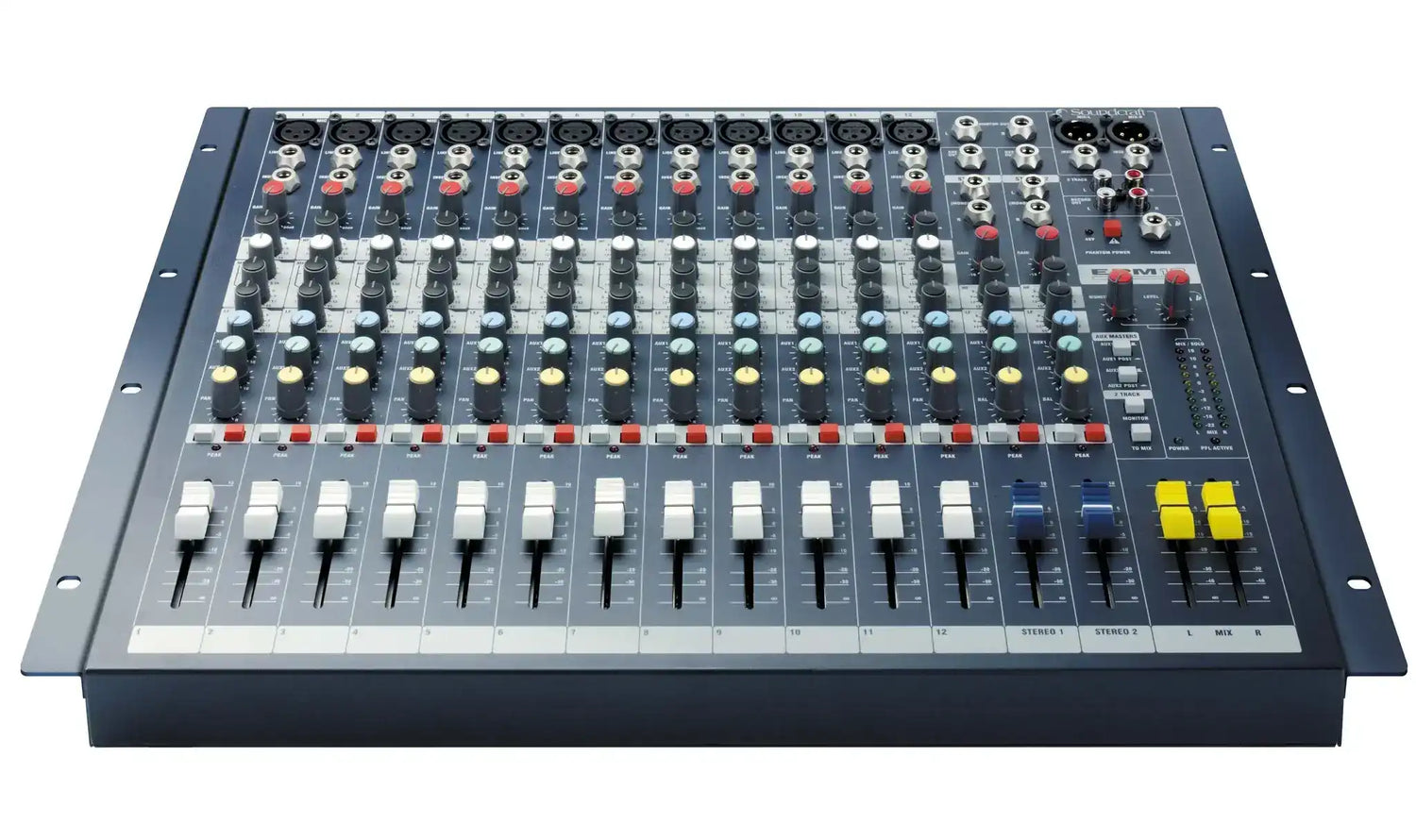

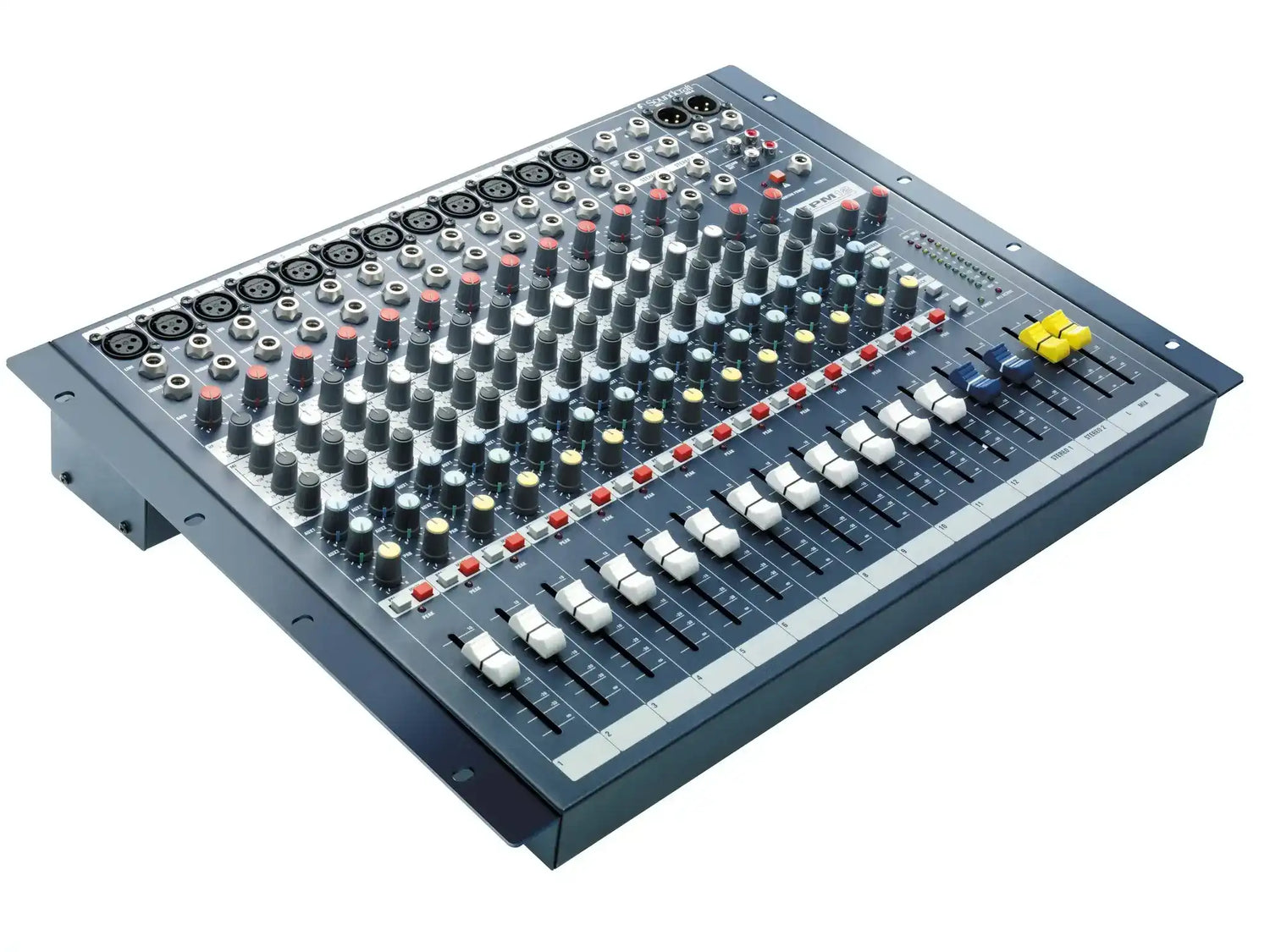

• Rack Mountable — Fits standard 19" racks for installed AV environments.
• Headphone Output — Independent monitoring with level control.

Typical Applications

• House of Worship
• Music Venues
• Multi-Purpose Room
• Auditorium
• Corporate AV Room
• Live Event Recording
• Broadcast

Technical Specifications

Frequently Asked Questions

Does the Soundcraft EPM12 have built-in effects?

No. The EPM12 is a clean analog mixing console without onboard effects. For built-in Lexicon effects, see the Soundcraft EFX12, which adds a 24-bit Lexicon digital effects processor to a similar channel frame.

Can the EPM12 record individual channels to a DAW?

Yes. The EPM12 has a direct output on each mono input channel, allowing individual channels to be routed to a multitrack recorder or DAW without interrupting the mix bus.

Is the EPM12 rack mountable?

Yes. The EPM12 supports rack mounting in standard 19" racks, making it suitable for permanent installed AV environments.

How many aux buses does the EPM12 have?

The EPM12 has 2 auxiliary buses, which can be used for independent monitor mixes, effects sends, or zone routing.

What is the difference between the EPM12 and EFX12?

The EPM12 is an effects-free analog mixer with 2 aux buses and direct outputs. The EFX12 adds a 24-bit Lexicon digital effects processor with 32 presets and tap tempo, but has 1 configurable aux bus instead of 2.

Does the EPM12 support condenser microphones?

Yes. The EPM12 provides 48V phantom power on XLR inputs, making it compatible with condenser microphones.
