Sound Control Technologies RTK-Pro – RemoteTableKit for Cisco Codec Pro

Product Overview

The Sound Control Technologies RTK-Pro is a conference table extension kit purpose-built for the Cisco Codec Pro. Using SCTLink technology, it delivers power, HDMI video, audio, USB, and Ethernet between the codec and the conference table over a single CAT cable — no configuration required. For AV integrators outfitting Cisco conference rooms, the RTK-Pro supplies PoE to a Cisco Touch panel at the table, supports up to three Cisco analog microphones, and enables switching between traditional conferencing and a true BYOM 'Call from Laptop' mode.

Product Description

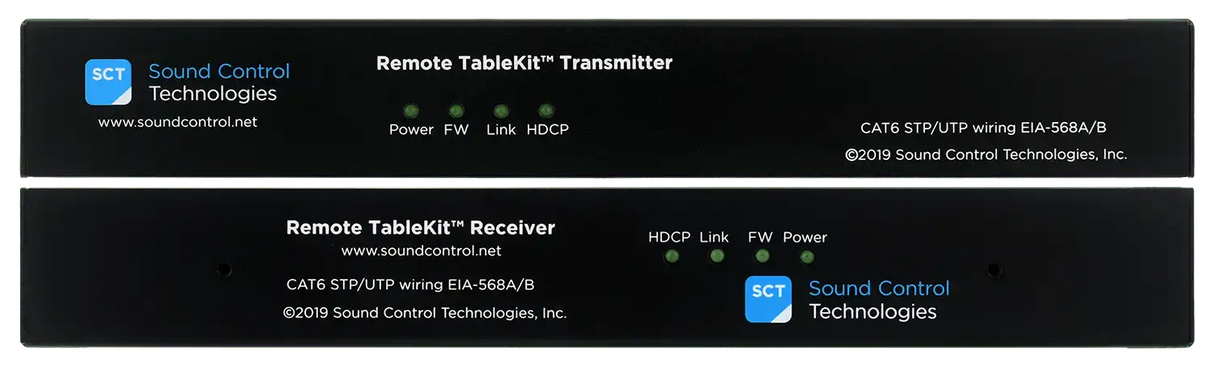

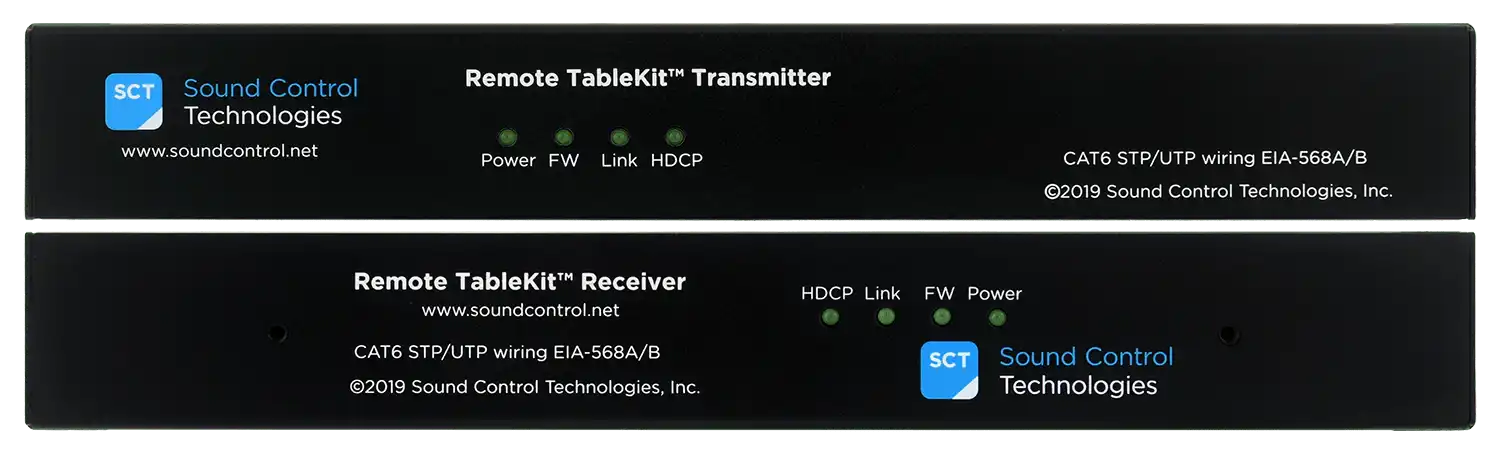

The RTK-Pro pairs a TX module at the table with an RX module at the codec, replacing the bundle of HDMI, network, audio, and power cables that normally runs between a Cisco Codec Pro and the conference table. The kit is the Codec Pro-specific configuration of the RemoteTableKit platform: it includes RM-PRO adaptors (male TRRS to Euro-Block) that terminate the table microphone audio into the Codec Pro's Euroblock microphone inputs, alongside the HDMI cable, UTP cable, and WPS-12 power supply.

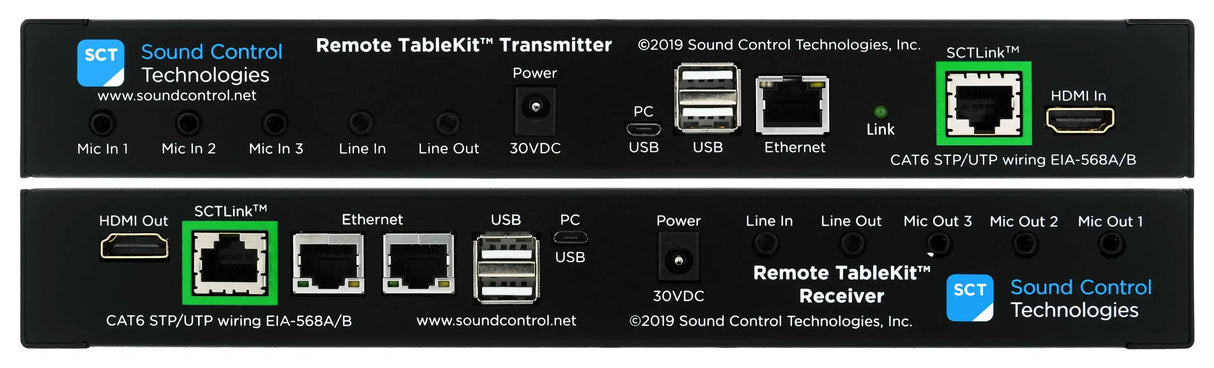

At the table, the TX module provides passive PoE (48VDC, 7W, Class-2, Mode B per IEEE 802.3af) for a Cisco Touch 10 controller, bi-directional line-level audio on 3.5mm TRS jacks, a 10/100 Ethernet port, and USB connectivity. The RX module adds a two-port 10/100 Layer 2 Ethernet switch at the codec end. Video runs up to 4K 25/30 4:4:4 with HDCP 2.2 support, and the USB link extends USB 2.0 between the table and the rack for BYOM peripherals. The modules can be powered from either the transmitter or receiver end, simplifying placement.

The RTK-Pro supports up to three Cisco Microphone 60 or Microphone Table-E microphones at the table, keeping analog mic runs short while the single CAT link carries everything back to the rack. Installation is plug-and-play with all hardware-specific codec connection cables included. For Cisco Codec EQ, Room Bar, Room Bar Pro, and Codec Plus rooms, see the companion RTK-Plus Table Extension Kit.

Key Features

• Single-Cable Table Link — Carries power, HDMI video, audio, USB, and Ethernet between the Cisco Codec Pro and the conference table over one CAT cable.
• BYOM 'Call from Laptop' Mode — Switches between traditional Cisco conferencing and a bring-your-own-meeting workflow without rewiring the room.
• Touch Panel PoE — Provides passive PoE (48VDC, 7W per IEEE 802.3af) to power a Cisco Touch 10 controller at the table.
• Three Cisco Microphone Inputs — Supports up to three Cisco Microphone 60 or Table-E microphones with included RM-PRO Euroblock adaptors.
• 4K Video with HDCP 2.2 — HDMI up to 4K 25/30 4:4:4 keeps content and camera feeds at full quality.
• Bi-Directional Audio — Stereo line-level audio on 3.5mm TRS jacks runs both directions across the link.
• Flexible Powering — Modules can be powered from either the transmitter or receiver end of the link.
• Plug-and-Play Installation — No programming required; all codec-specific connection cables are in the kit.

Typical Applications

• Boardrooms standardizing on Cisco Codec Pro
• Large conference rooms with table microphones and a Touch 10 controller
• Commercial meeting spaces adding BYOM capability to existing Cisco rooms
• Training rooms where rack-to-table cabling must be minimized
• Government spaces deploying Cisco video conferencing at scale

Technical Specifications

Frequently Asked Questions

Which Cisco codec does the RTK-Pro support?
The RTK-Pro is configured specifically for the Cisco Codec Pro, including RM-PRO adaptors that interface table microphone audio to the codec's Euroblock inputs.

How is the RTK-Pro different from the RTK-Plus?
Both kits use the same TX/RX modules. The RTK-Pro ships with RM-PRO Euroblock adaptors for Codec Pro microphone inputs and supports Cisco Microphone 60/Table-E mics; the RTK-Plus is cabled for Codec EQ, Room Bar, Room Bar Pro, and Codec Plus with Microphone 20/Table-J support.

Can it power the Cisco Touch panel at the table?
Yes. The TX module supplies passive PoE per IEEE 802.3af to power a Cisco Touch 10 controller over the table Ethernet port.

Does the kit support BYOM?
Yes. The USB 2.0 link enables a 'Call from Laptop' mode so users can run meetings from their own laptop using the room camera and microphones.

Is programming required?
No. Installation is plug-and-play, and all hardware-specific codec connection cables are included in the kit.
