Sound Control Technologies RCU3SL-B10 – USB3 Camera Extension Kit for Multiple Manufacturers

Product Overview

The Sound Control Technologies RCU3SL-B10 is a USB3 camera extension kit that delivers USB 3.2 video, RS-232 control, and camera power over a single CAT cable up to 100 meters (300 feet). Built on the SCTLink platform, this USB camera extender lets AV integrators place a PTZ camera anywhere in a conference room, training room, or auditorium without running USB extenders, separate control wiring, or local power. The B10 variant supports a broad range of professional PTZ cameras from AVer, ClearOne, Crestron 1Beyond, HuddleCamHD, Laia, Lumens, and VHD.

Product Description

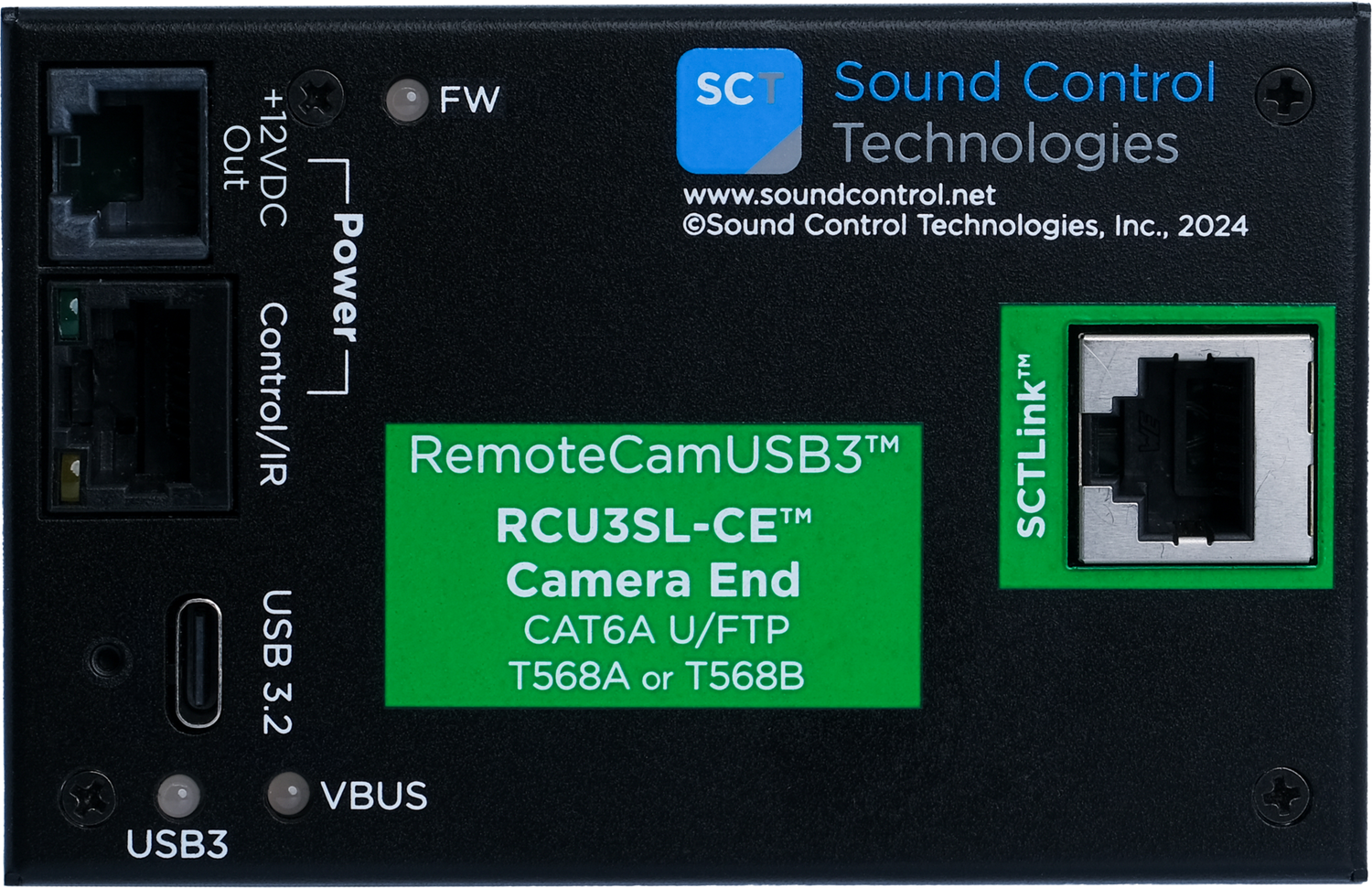

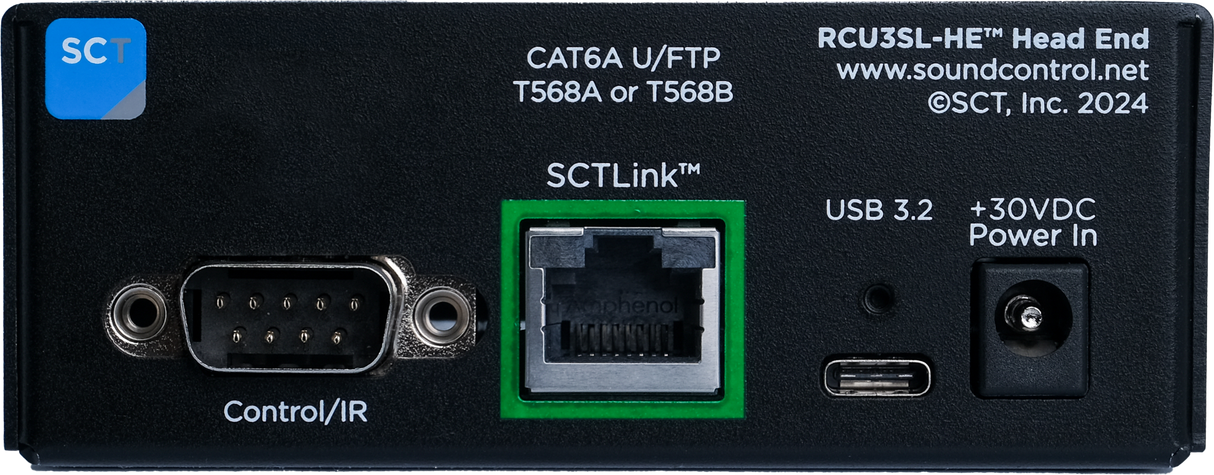

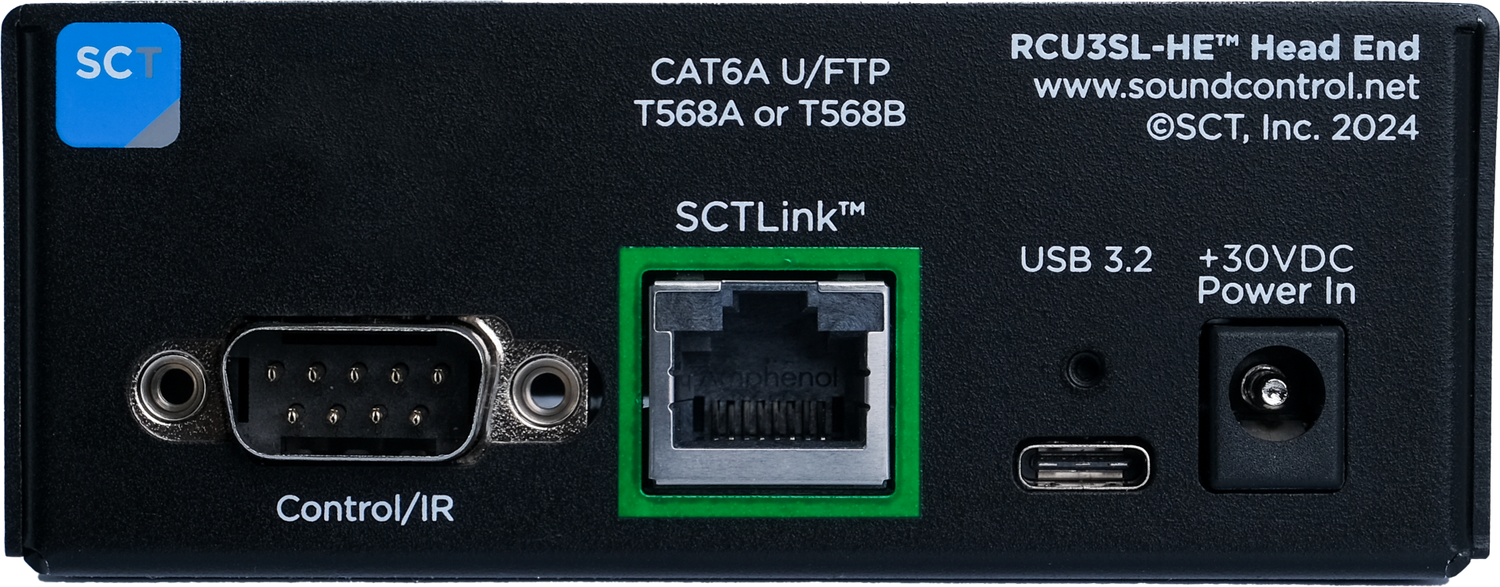

Standard USB 3.2 cabling is limited to a few meters, which restricts where a USB camera can be installed relative to the codec or room PC. The RCU3SL-B10 solves this commercial AV integration problem by linking the RCU3SL-HE head-end module at the rack to the RCU3SL-CE camera-end module at the camera over one shielded CAT cable. The single SCTLink connection carries USB 3.2 video up to 4K@30, UVC and RS-232 VISCA camera control, and 12V or 5V camera power up to 3A, eliminating the need for a local outlet at the camera position. The camera-end module provides a locking USB-C 3.2 Gen 1 connector with USB Power Delivery (5V/9V/12V at 3A or 15V at 2.4A, 36W maximum) for devices that power over USB-C. Installation is plug and play with no programming required, and the platform passes manufacturer firmware updates through from codec to camera. The kit ships with all hardware-specific camera and codec connection cables, including locking USB-C to USB-A and USB-C to USB-B 3.0 cables and an RJ45 control breakout cable. The B10 supports cameras such as the AVer TR335, PTZ330UV2 and CAM-series trackers, Crestron 1Beyond IV-CAM-I12/I20/P12, Lumens VC-TR60, and ClearOne UNITE 200 Pro, making it a single-SKU answer for multi-manufacturer commercial deployments.

Key Features

• 100-Meter USB 3.2 Extension — Extends USB video up to 4K@30 over a single CAT cable run from 10m to 100m.
• Single-Cable Infrastructure — One SCTLink CAT cable carries USB video, camera control, and camera power, simplifying conduit and pathway planning.
• Camera Power Included — Delivers 12V or 5V camera power up to 3A at the camera end, removing the need for a local outlet.
• USB-C Power Delivery — Locking USB-C 3.2 Gen 1 connector supports PD at 5V/9V/12V@3A or 15V@2.4A up to 36W.
• UVC and RS-232 VISCA Control — Supports both UVC control and serial VISCA for integration with control systems and tracking processors.
• Multi-Manufacturer Support — One kit covers PTZ cameras from AVer, ClearOne, Crestron 1Beyond, HuddleCamHD, Laia, Lumens, and VHD.
• Plug-and-Play Installation — No programming required; all hardware-specific camera and codec cables are included in the kit.
• Firmware Pass-Through — Manufacturer firmware updates pass from the codec or host PC through to the camera.

Typical Applications

• Boardroom
• Conference room
• Training room
• Auditorium
• All-hands room
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

Which cameras does the RCU3SL-B10 support?

The B10 variant supports a wide range of professional PTZ cameras including AVer TR and PTZ series, ClearOne UNITE 150/200 Pro, Crestron 1Beyond IV-CAM models, HuddleCamHD HC20X, Laia C-Pro 12X AI, Lumens VC-A71P and VC-TR60, and VHD VX70UVS. For Sony, Panasonic, Poly, or Logitech cameras, other RCU3SL variants are matched to those models.

What cable do I need to run between the modules?

A single shielded CAT cable between 10 and 100 meters connects the head-end module at the rack to the camera-end module. Power, USB 3.2 video, and control all travel over this one link.

Does the camera need a power outlet at its mounting location?

No. The RCU3SL-B10 delivers 12V or 5V camera power up to 3A through the link cable, so the camera can be wall- or ceiling-mounted without local power.

Does it require drivers or programming?

No. Installation is plug and play, and the system appears to the host as a standard USB connection consuming one hub tier. Manufacturer firmware updates pass through from the codec to the camera.

What warranty applies to this kit?

Sound Control Technologies products carry a standard advance replacement limited warranty. Contact Creation Networks for current warranty terms and extended coverage options.
