Sound Control Technologies RC5-P40 – HDMI Camera Extension for Panasonic PTZ Cameras

Product Overview

The Sound Control Technologies RC5-P40 is an HDMI camera extension kit for Panasonic PTZ cameras, carrying HDMI video, IP/Ethernet camera control, and 12V DC power up to 100 meters over a single CAT cable. Built on the RemoteCam5 (RC5 Gen2) platform with SCTLink technology, the kit supports a wide range of Panasonic models including the AW-HE40, AW-HE60, AW-UE70, AW-UE100, and more. The complete kit — camera module, head-end module, Panasonic-specific cable set, and power supply — installs without programming, simplifying conference room and broadcast camera runs.

Product Description

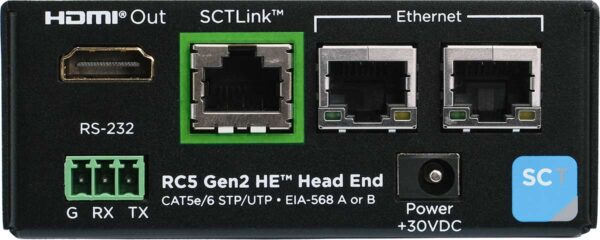

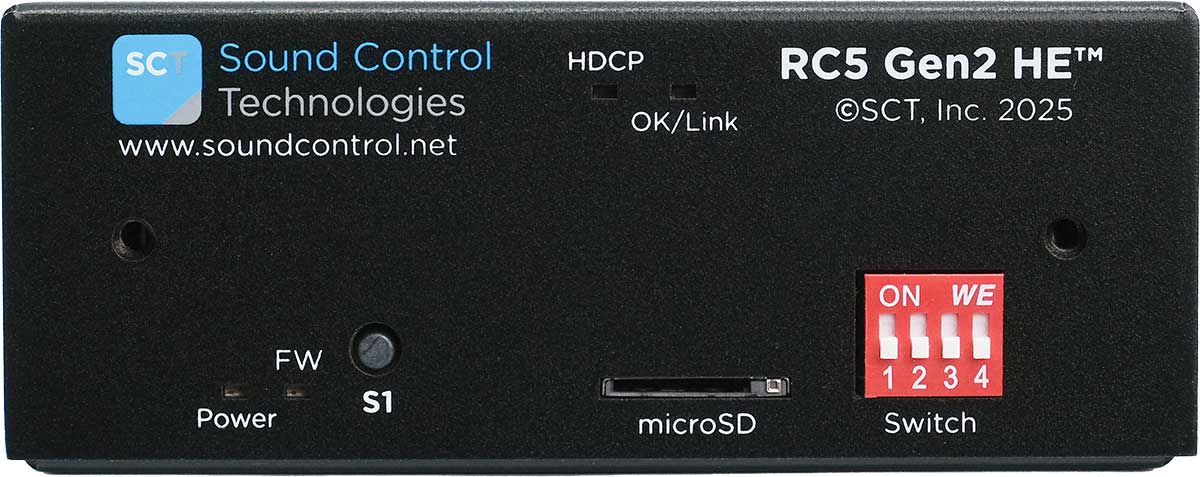

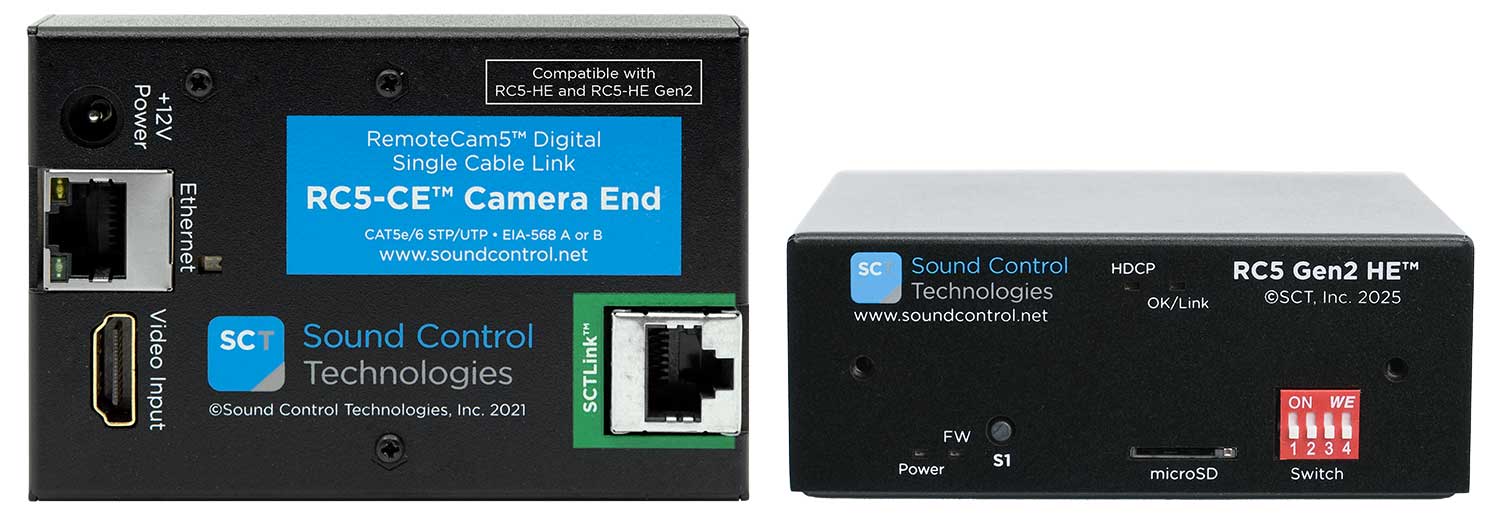

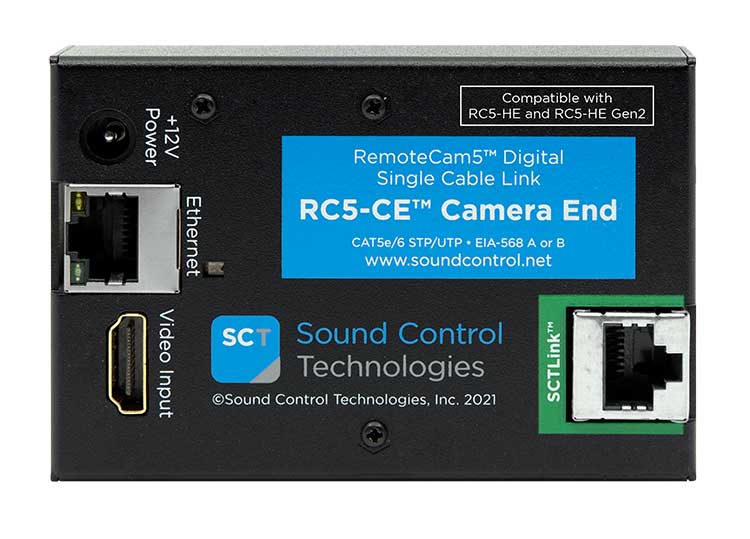

Panasonic professional PTZ cameras are deployed everywhere from huddle rooms to broadcast studios, and they frequently need to sit much farther from the codec or switcher than native HDMI cabling allows. The RC5-P40 solves the distance problem with a camera-end RC5-CE module and a head-end RC5-HE module connected by one installer-supplied CAT cable up to 100 meters (328 ft). The kit ships with the Panasonic-specific PPC-014-0.3M DC power camera cable plus HDMI and UTP camera and head-end cables and a WPS-12 power supply, so the camera receives 12V power directly through the link — no outlet needed at the camera position. Supported Panasonic cameras include the AW-HE20, AW-UE20, AW-UE30, AW-HE38H, AW-HN38H, AW-HE40, AW-HN40H, AW-HE42, AW-UE50, AW-HE60, AW-UE70, AW-UN70, AW-UE80, and AW-UE100. As an RC5 Gen2 kit it adds native Cisco Control Hub integration, diagnostics, and field-upgradeable enhancements, and remains backwards compatible with existing RC5-CE modules. Project pack variants add an RCM-UNI camera wall mount (-K), an RC-RK2 rack shelf (-S), or both (-KS). For BYOD soft-codec rooms, pair the camera run with the RC-SDA5+ BYOD camera bridge.

Key Features

• Broad Panasonic PTZ Compatibility — Supports fourteen Panasonic models from the AW-HE20 through the 4K AW-UE100, covering conferencing and broadcast lines.
• Single-CAT Extension up to 100m — HDMI video, IP/Ethernet control, and 12V DC camera power run over one CAT cable up to 100 meters.
• Panasonic-Specific Cable Set — Includes the PPC-014 DC power cable plus HDMI and UTP camera and head-end cables matched to Panasonic connectors.
• 12V Camera Power Delivery — The WPS-12 supply powers the camera through the link, eliminating a separate power run at the camera location.
• No Programming Required — Video and control pass transparently for plug-and-play installation.
• RC5 Gen2 Platform — Cisco Control Hub integration, diagnostics, and field-upgradeable firmware; backwards compatible with RC5-CE modules.
• Project Pack Options — Available with camera wall mount (-K), rack shelf (-S), or both (-KS) for spec-ready deployments.

Typical Applications

• Conference room with a Panasonic AW-HE40 or AW-HE60 mounted at distance from the codec
• Broadcast studio extending AW-UE70/AW-UE100 cameras to a control room over CAT infrastructure
• Auditorium or all-hands room with rear-of-room Panasonic PTZ camera positions
• House of worship running Panasonic PTZ cameras for service capture and streaming
• Training room or multi-purpose room standardized on Panasonic professional PTZ cameras

Technical Specifications

Frequently Asked Questions

Which Panasonic cameras work with the RC5-P40?

The RC5-P40 supports the Panasonic AW-HE20, AW-UE20, AW-UE30, AW-HE38H, AW-HN38H, AW-HE40, AW-HN40H, AW-HE42, AW-UE50, AW-HE60, AW-UE70, AW-UN70, AW-UE80, and AW-UE100. For models not listed, contact Creation Networks before ordering.

Is the CAT cable included in the kit?

No. The CAT run between the camera-end and head-end modules is supplied by the installer. CAT5e or better is recommended, with a maximum run of 100 meters.

Does the kit power the camera?

Yes. The included WPS-12 power supply delivers 12V DC to the camera through the SCTLink connection, so no electrical outlet is required at the camera position.

What is the difference between the RC5-P40 and RC5-P40-K/-S/-KS?

The -K variant adds an RCM-UNI camera wall mount, the -S variant adds an RC-RK2 rack shelf for the head-end module, and the -KS variant includes both. The extension electronics are identical.

Can I add BYOD soft-codec capability?

Yes. Pair the RC5-CE camera module with the RC-SDA5+ BYOD camera bridge to convert the camera to USB3 for Zoom, Microsoft Teams, and other soft-codec platforms.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
