Sony VPL-FHZ131L/B 13,000-Lumen WUXGA Laser 3LCD Projector (Black, No Lens) - VPL-FHZ131L/B

Product Overview

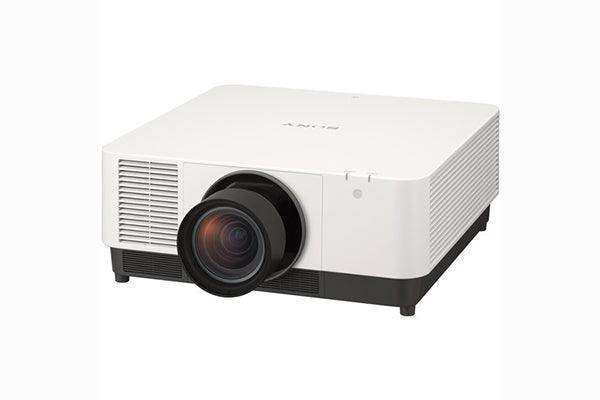

The Sony VPL-FHZ131L/B is a 13,000-lumen WUXGA laser 3LCD installation projector for large venues. It combines high brightness with an infinite dynamic contrast ratio and a 20,000-hour laser light source, plus Reality Creation processing and edge blending for multi-projector displays. Designed for interchangeable lenses (sold separately), it suits auditoriums, houses of worship, museums, and large meeting and education spaces. This is the black, no-lens model.

Product Description

The VPL-FHZ131L/B uses a 3LCD system with BrightEra panels at native WUXGA (1920 x 1200) resolution and outputs 13,000 lumens, enough for big-screen presentations in brightly lit rooms, with an infinite dynamic contrast ratio for detail in dark areas. Sony's Reality Creation enhances lower-resolution sources without adding noise, and Intelligent Setting presets optimize brightness, cooling, and color for the room. The laser light source runs up to 20,000 hours with maintained brightness and no lamp replacement. A quick-release bayonet mount accepts a range of interchangeable lenses (including a short-throw option), with generous lens shift, up to ±30° keystone, and lens position memory (with the VPLL-Z4111). Inputs include HDBaseT, HDMI, DVI-D, VGA, and 5BNC, with a VGA loop-through output and an optional BKM-PJ20 3G-SDI adapter slot. Edge blending joins color-matched images across multiple units, and the projector integrates with Crestron Connected and Extron XTP via HDBaseT or RS-232. It meets 100% of the sRGB color space in sRGB mode.

Key Features

• 13,000 lumens, WUXGA 3LCD — BrightEra panels at 1920 x 1200 for bright, detailed large-venue images.
• Laser light source, 20,000 hours — Maintained brightness, no lamp replacement, reduced maintenance.
• Infinite dynamic contrast + Reality Creation — Deep blacks and enhanced clarity without added noise.
• Interchangeable lenses, lens shift, keystone — Quick-release bayonet mount; up to ±30° keystone; lens position memory with VPLL-Z4111.
• Edge blending — Color-matched multi-projector displays for super-sized images.
• Comprehensive inputs — HDBaseT, HDMI, DVI-D, VGA, 5BNC; VGA output; optional BKM-PJ20 3G-SDI.
• Networked control — Crestron Connected and Extron XTP via HDBaseT or RS-232; 100% sRGB mode.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Training room
• Commercial meeting space

Competitor Comparison

Comparison of high-brightness laser installation projectors in the ~13,000-lumen WUXGA class. Competitor figures reflect published specifications and should be confirmed against the latest vendor sheets before purchase.

The VPL-FHZ131L's strengths are its 13,000-lumen output, 3LCD color (no color-wheel rainbow effect), infinite dynamic contrast, and Reality Creation processing. DLP alternatives such as the Panasonic PT-RZ12K may be preferred where single-chip characteristics are desired; confirm current competitor specifications before deciding.

Technical Specifications

What's in the Box

• VPL-FHZ131L/B laser 3LCD projector (black, no lens)
• Remote control
• Accessories per Sony packaging

Frequently Asked Questions

Does the VPL-FHZ131L/B include a lens?
No. This is the no-lens body. It accepts a range of interchangeable Sony VPLL-series lenses (sold separately) via a quick-release bayonet mount.

How bright is it and what resolution?
13,000 lumens at native WUXGA (1920 x 1200) using a 3LCD system with BrightEra panels.

How long does the laser last?
Up to 20,000 hours with maintained brightness and no lamp replacement.

Can it drive a multi-projector blended display?
Yes. It supports edge blending to join color-matched images across multiple projectors.

What control systems does it support?
Crestron Connected and Extron XTP via HDBaseT or RS-232. For lens selection, warranty, and support, see Creation Networks at creationnetworks.net/collections/sony.
