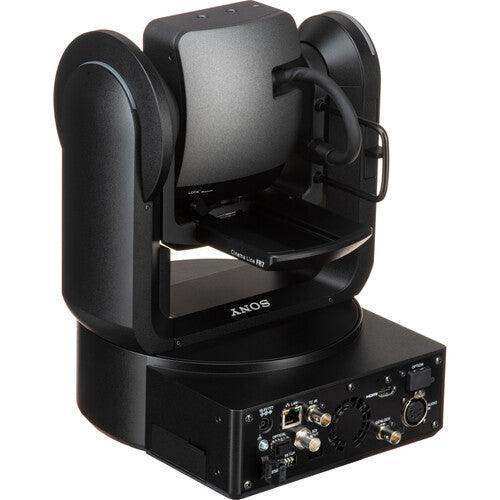

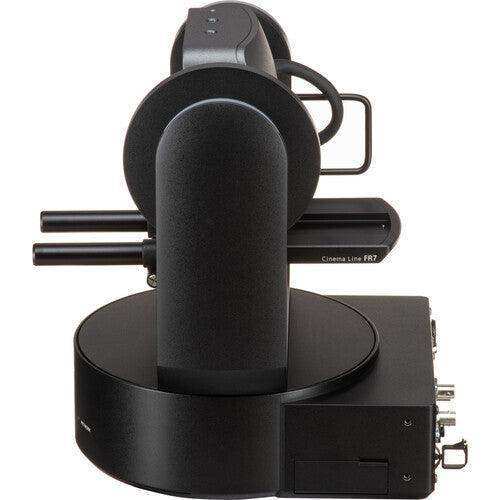

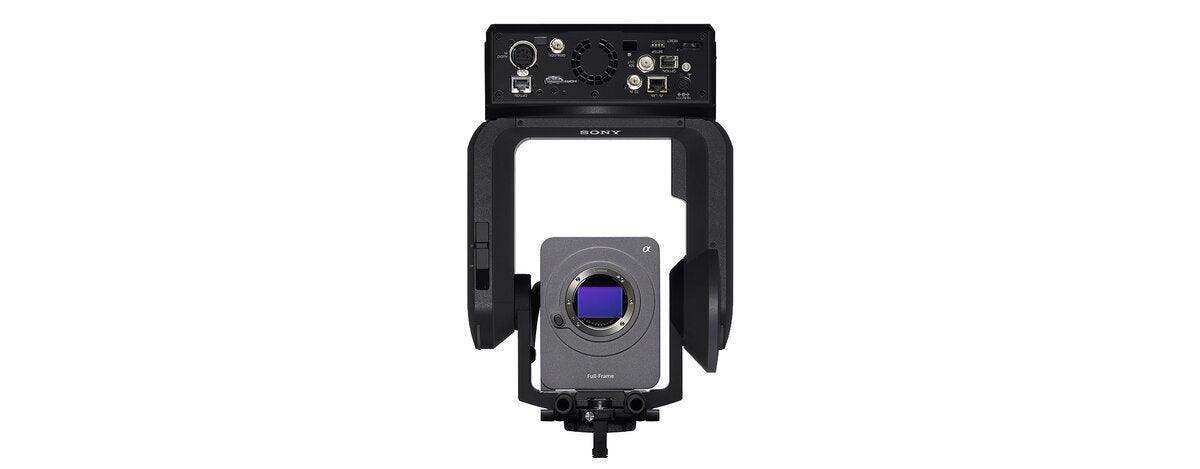

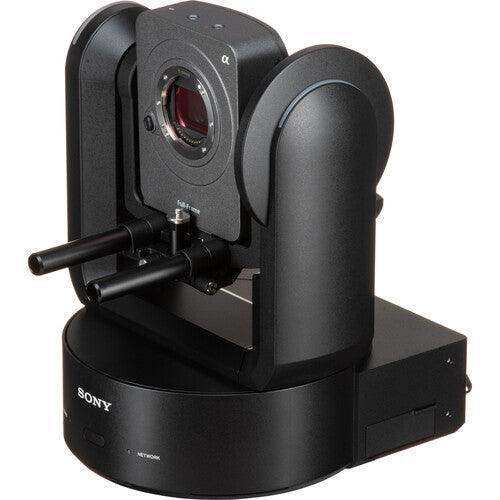

Sony FR7 Cinema Line PTZ Camera Kit with 28-135mm Zoom Lens

Sony SKU: ILME-FR7
No reviews
Price:
$9,699.00

Description

FR7 Cinema Line Full-frame PTZ camera

A full-frame image sensor, a broad line-up of interchangeable lenses, and the look and operability of Sony's renowned digital cinema cameras-the FR7 brings outstanding professional performance to the PTZ (pan-tilt-zoom) format. With its unique perspective and capabilities, it will change the way visual content is made. apture cinematic, full-frame footage in PTZ form for broadcast use, reality shows, houses of worship, and live events and sports with the black FR7 Cinema Line PTZ Camera from Sony. This versatile camera features the unique ability to use interchangeable Sony E-mount lenses and is currently compatible with up to 70 E-mount lenses ranging from 12 to 1200mm. The large image sensor provides 15+ stops of dynamic range, captures up to UHD 4K120 video, offers live streaming, supports S-Cinetone, Cine EI, and MLUT looks for matching select Sony cameras, and enables you to create shallow depth-of-field bokeh effects.


 

Expressive 4K Imaging Full-Frame Sensor
  • The FR7 combines a 4K full-frame sensor and compatibility with Sony E-mount lenses to produce outstandingly expressive, cinematic imagery
  • 15+ stops of dynamic range and a base ISO of 800 that is expandable from 12,800 to 409,600 for capturing optimal video in an array of lighting conditions
Sony E-Mount
  • Compatibility with up to 70 Sony E-mount lenses covers a range of 12 to 1200
  • Enables you to capture the widest vistas and the closest details
  • Use with G Master (GM) lenses to obtain impressive resolution and pleasing bokeh
Imaging Functions Capture rich detail and wide color using Sony S-Log3 and create nuanced contrast with Hybrid Log Gamma (HLG) Built-In ND Filters
  • An integrated, electronic ND filter offers variable ND filtration ranging from 1/4 (2 stops) to 1/128 (7 stops)
  • Use the ND filter to compensate for changes in exposure without affecting your depth of field
  • Create shallow depth-of-field effects by adding the ND and opening the iris
SDI Raw Output The FR7 can output raw video via the SDI (BNC) output to an external recording for color grading and other post-production tweaking
UHD 4K 120p Recording Record UHD 4K video at rates up to 120 fps for slow-motion effects Remote and Robotics Functions IP Control Use the IP remote function to control your camera from a distance like a broadcast truck and/or to control multiple cameras
Video Output and Streaming
  • Output video using the HDMI and up to 12G-SDI video outputs
  • Stream RTSP, SRT, or NDI|HX (requires NewTek license) using the LAN port
 Control Options
  • The included IR remote can be used for pan, tilt, zoom (PTZ), focus, recording, playback, and other camera settings
  • Use with the separately available RM-IP500 control panel with joystick zoom rocker, and buttons
  • Web app remote control can be accessed from a tablet or PC browser
 Mounting
  • Mount on a tripod or riser using the two 1/4"-20 threads
  • Use the optional mount to attach the FR7 camera to a ceiling
  • Attach camera accessories using the 15mm rod mounts
Imaging
Lens Mount Sony E
Image Sensor Size-Unspecified CMOS
Sensor Resolution Actual: 12.9 Megapixel
Effective: 10.3 Megapixel
Lens Communication Yes, with Autofocus Support
Built-In ND Filter 2 to 7 Stop Electronic ND Filter
Focus Control Autofocus
Autofocus Points Phase Detection: 627
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/8000 to 1 Second
ISO Sensitivity 800 to 12,800 (Extended: 409,600)
Gain -3 to 30 dB
Advertised Dynamic Range 15 Stops
Flip / Mirror Support Image Flip
White Balance 2000 to 15,000K
Presets: ATW, Set A
Video Capture
External Recording Modes Raw 16-Bit via SDI/BNC
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
HDMI
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
720 x 480 at 59.94 fps
720 x 576 at 50 fps
Internal Recording Modes XAVC-I 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 24.00/25/29.97/50/59.94 fps [240 to 600 Mb/s VBR]
UHD 4K (3840 x 2160) at 25/29.97/50/59.94 fps [240 to 600 Mb/s VBR]
1920 x 1080 at 25/29.97/50/59.94 fps [89 to 222 Mb/s]
XAVC-L
UHD 4K (3840 x 2160) at 25/29.97/50/59.94 fps [100 to 150 Mb/s VBR]
1920 x 1080 at 25/29.97/50/59.94 fps [35 to 50 Mb/s VBR]
Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio
Gamma Curve HDR-HLG, Rec709, S Cinetone, Sony S-Log 3, Standard
IP Streaming NDI|HX, RTSP, SRT
640 x 360 to 4096 x 2160 (0.5 to 80.00 Mb/s)
Control
Presets 3 via IR
100 via IP
Move Speed Pan: 0.02 to 60°/sec
Tilt: 0.02 to 60°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 225° (-30 to 195°)
Tally Light Yes
Supported Control Protocols IR
VISCA
Interface
Media/Memory Card Slot Dual Slot: CFexpress Type A / SD
Video I/O 1 x BNC (12G-SDI) Output
1 x SFP+ Output
1 x HDMI Output
Audio I/O 1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O 1 x BNC (Timecode)
1 x RJ45 (LAN) Control
1 x BNC (Genlock)
1 x RJ45 (Tally)
Power
PoE Support PoE++ 802.3bt
Power I/O 1 x Barrel (19.5VDC) Input
Power Consumption PoE: 71.3 W
Power Supply: 80 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Mounting 2 x 1/4"-20 Female for Tripod
Environmental Protection None
Netflix Approved Yes
Sound Level NC35
Dimensions (W x H x D) 11.4 x 9.2 x 8.9" / 289 x 233 x 227 mm (Without Protrusions)
Weight 10.1 lb / 4.6 kg (Body Only)
Packaging Info
Package Weight 15.305 lb
Box Dimensions (LxWxH) 16.4 x 16.2 x 13.2"
