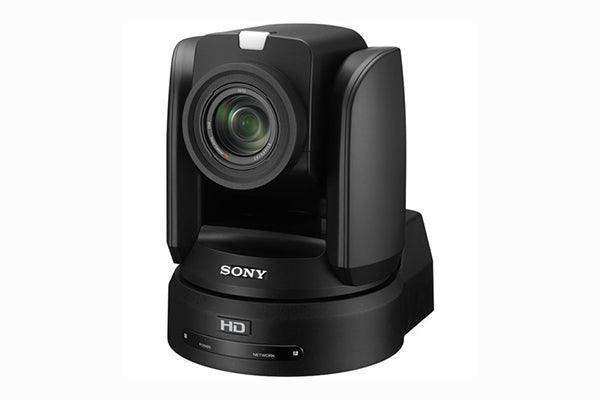

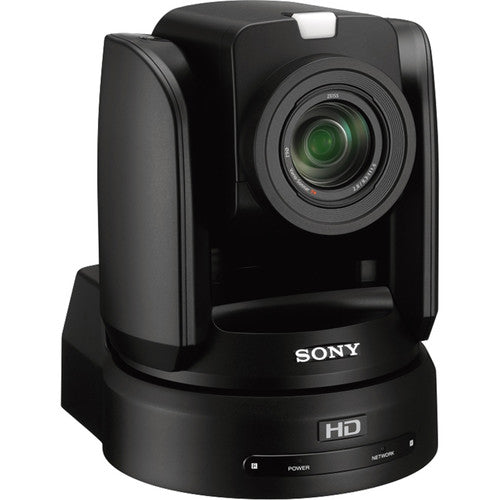

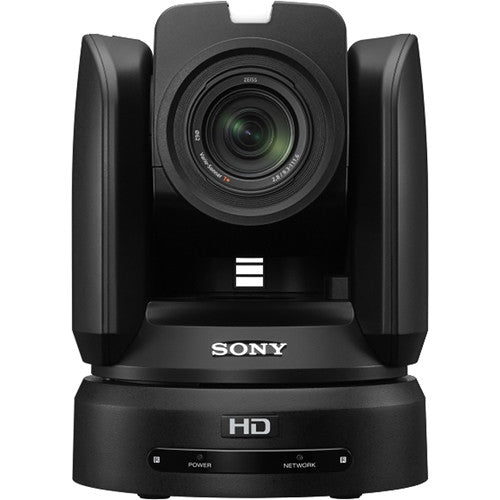

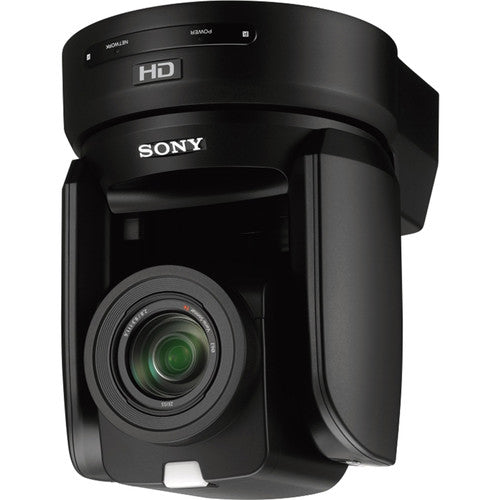

Sony BRC-H800 HD PTZ Camera with 1" CMOS Sensor and PoE+ (Black) - BRC-H800/1

Sony SKU: BRC-H800/1
No reviews
Price:
$6,500.00 $7,899.00

Description

Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections. Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of faith, courtrooms, classrooms, or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1.0-type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12× optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24× (HD) extending this range even further without visible loss of resolution. In Tele Convert Mode, 24× zoom can be further doubled to 48× without losing HD resolution.

Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table-top, or tripod mounting. There's also a broad range of video interfacing and remote control possibilities—plus support for PoE+ and genlock—for smooth integration into any broadcast, professional, or corporate AV environment.

The BRC-H800/1 and the BRC-H800/WPW are the US/Canada models which are bundled with the AC-UES1230MT AC power supply and cord. In all other regions the AC power supply and cord are sold separately.
  • PoE+ capability uses a single cable for IP camera control and power
  • 3G-SDI, Ethernet, and HDMI interfaces provide a range of output choices
  • HD-resolution PTZ camera with remotely controllable pan, tilt, zoom, focus, iris, and shutter speed
  • 1" type Exmor R CMOS back-illuminated image sensor and 1.7-lux sensitivity for optimal low-light performance
  • Clear Image Zoom Technology increases the optical zoom to 24x in HD while maintaining the exceptional image quality of the Zeiss Vario-Sonnar 12x zoom lens
  • PTZ Trace Memory and PTZ Motion Sync functions enable you to precisely repeat moves with smooth transitions
  • Genlock function for integration with other systems in multi-camera setups
  • Up to 100 preset pan/tilt/zoom positions; flexible desktop or ceiling mounting
  • For on-air broadcasting, the camera features adjustable front and rear tally lights
  • Firmware updates are user-accessible through the camera's IP connection
  • Day/Night, Visibility Enhancer, Image Flip, Picture Profile Preset
  • ND Filter: Off, 1/4, 1/16, 1/64—Switchable in Menu
  • Color Gain (15-step), Color Hue (15-step)
  • Color Matrix: Off/Standard/High Saturation/FL light/Movie/Still/Cinema/Pro/ITU709/B&W
  • Gamma: Standard/Straight/Movie/Still/Cine1/Cine2/Cine3/Cine4/ITU709/Pattern
  • Gamma Level (15-step), Black Level (97-step), Black Gamma (15-step)
  • Knee Point (13-step), Knee Slope (15-step), Flicker Cancel: On/Off

Specification

Imaging
Sensor Type 1"-Type CMOS Sensor
Horizontal Resolution (TV Lines) 850 TV Lines
Sensor Resolution Actual: 20.4 Megapixel
Effective: 14.2 Megapixel
Built-In ND Filter Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/6 Second
Gain -3 to 33 dB
Minimum Illumination 1.7 Lux at 1/30 Shutter Speed
Flip / Mirror Support Image Flip
White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 9.3 to 111.6mm (35mm Equivalent Focal Length: 29 to 348mm)
Optical Zoom Ratio 12x
Max Digital Zoom 48x
Field of View 64.6°
Maximum Aperture f/2.8 to 4.5
Minimum Focus Distance Wide: 3.1" / 8.0 cm
Telephoto: 39.4" / 100.0 cm
Video Capture
External Recording Modes SDI/BNC / HDMI
1920 x 1080p at 23.98/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Broadcast Output NTSC/PAL
Control
Presets 100
Move Speed Pan: 0.03 to 60°/sec
Tilt: 0.03 to 60°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols IP
RS-422
VISCA
Interface
Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI Output
Other I/O 1 x BNC (Sync) Input
1 x RJ45 (LAN)
2 x RJ45 (RS-422, VISCA)
Power
PoE Support PoE+ 802.3at
Power I/O 1 x Barrel (10.8 to 13.2VDC) Input
Power Consumption Power Supply: 19 W
PoE: 23 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Mounting 2 x 1/4"-20 Female
OS Compatibility Windows 8.1 (32/64-Bit)
Windows 10 (32/64-Bit)
*As of August, 2020: Check with manufacturer for the most up-to-date compatibility
Sound Level NC30
Dimensions (W x H x D) 7.8 x 10.24 x 9.37" / 19.8 x 26 x 23.8 cm (Without Protrusions)
Weight 9.48 lb / 4.3 kg
Packaging Info
Package Weight 16.8 lb
Box Dimensions (LxWxH) 21.9 x 18.8 x 16.7"
