Product Overview

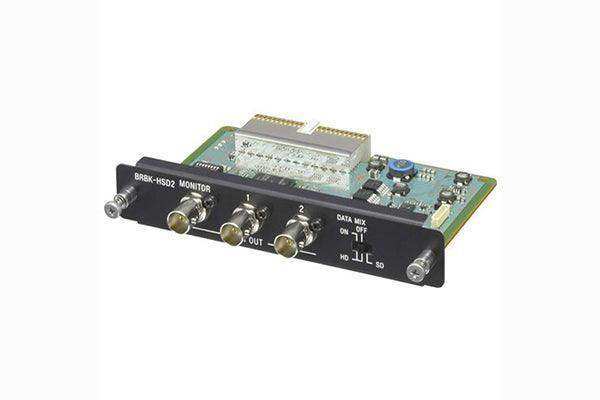

The Sony BRBK-HSD2 is a switchable HD/SD-SDI output card for Sony's BRC-H900 and BRC-Z330 robotic cameras. It adds serial digital video output conforming to SMPTE-292M (HD-SDI) or down-converted SMPTE-259M (SD-SDI) standards, providing three digital video outputs for broadcast and professional integration.
Product Description
The BRBK-HSD2 installs in the BRC-H900 and BRC-Z330 HD robotic cameras and also works with the BRU-SF10 HD optical multiplex unit connected to the BRC-Z330. It provides three digital video outputs and lets the camera output images as HD-SDI signals conforming to SMPTE-292M, or as down-converted SD-SDI signals conforming to SMPTE-259M. In HD-SDI mode, the camera menus can be superimposed on the video signal for on-screen setup. It is an option board accessory rather than a standalone product.
Key Features
- Switchable HD/SD-SDI output — HD-SDI per SMPTE-292M or down-converted SD-SDI per SMPTE-259M.
- Three digital video outputs — Multiple SDI feeds for broadcast and AV routing.
- On-screen menu overlay — Camera menus can be superimposed on the signal in HD-SDI mode.
- Compatible cameras — BRC-H900 and BRC-Z330 robotic cameras; works with the BRU-SF10 optical multiplex unit on the BRC-Z330.
Technical Specifications
| Type | HD/SD-SDI output option card |
| Compatible cameras | Sony BRC-H900, BRC-Z330 (and BRU-SF10 with BRC-Z330) |
| HD-SDI standard | SMPTE-292M |
| SD-SDI standard | SMPTE-259M (down-converted) |
| Digital video outputs | 3 |
| Menu overlay | Supported in HD-SDI mode |
What's in the Box
- BRBK-HSD2 HD/SD-SDI output card
- Accessories per Sony packaging
Frequently Asked Questions
Which cameras is the BRBK-HSD2 for?
It is designed for the Sony BRC-H900 and BRC-Z330 robotic cameras, and works with the BRU-SF10 optical multiplex unit connected to the BRC-Z330.
Does it output HD or SD?
Both. It outputs HD-SDI (SMPTE-292M) or down-converted SD-SDI (SMPTE-259M), switchable.
How many outputs does it provide?
Three digital video outputs.
Can I see camera menus on the output?
Yes, in HD-SDI mode the camera menus can be superimposed on the video signal.
Where can I confirm compatibility and support?
For compatibility with your camera and support, see Creation Networks at creationnetworks.net/collections/sony.
